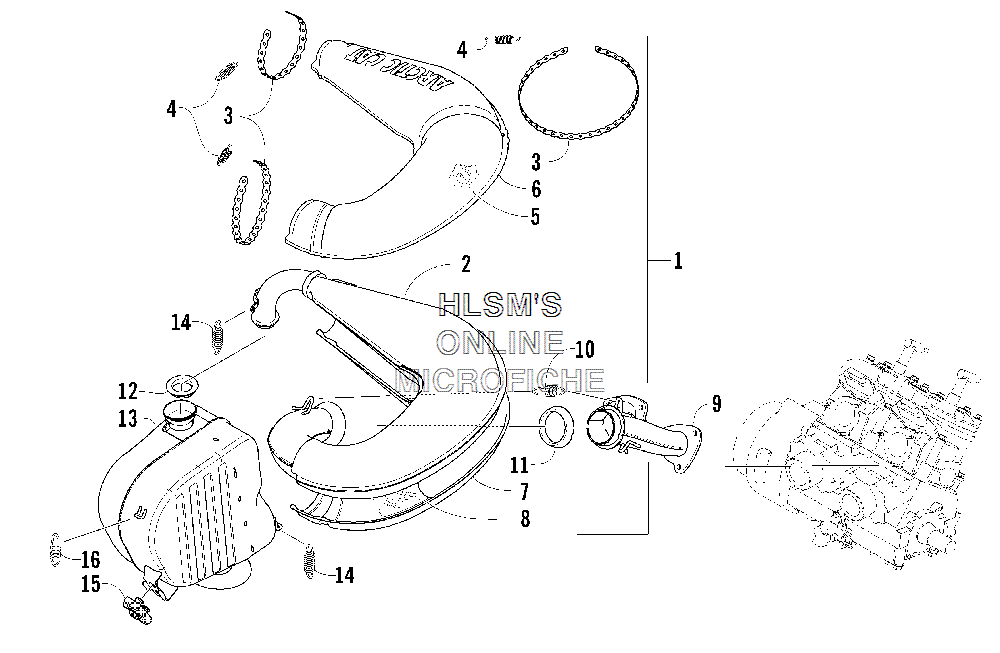

EXHAUST ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11712-243 CHAMBER, EXPANSION - ASSY. (INC. 2-8)CHAMBER, EXPANSION - ASSY. (INC. 2-8)
-
21712-242 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
30624-526 TIE, PERFORATED BAND - 5 FTTIE, PERFORATED BAND - 5 FT
-
30624-541 TIE, PERFORATED BAND - 25 FTTIE, PERFORATED BAND - 25 FT
-
41612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
51612-590 PACKING, EXPANSION CHAMBER - UPPERPACKING, EXPANSION CHAMBER - UPPER
-
61612-574 COVER, EXPANSION CHAMBER - UPPERCOVER, EXPANSION CHAMBER - UPPER
-
71612-804 COVER, EXPANSION CHAMBER - LOWERCOVER, EXPANSION CHAMBER - LOWER
-
81612-805 PACKING, EXPANSION CHAMBER - LOWERPACKING, EXPANSION CHAMBER - LOWER
-
91712-104 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
100612-820 SPRING, EXHAUSTSPRING, EXHAUST
-
111612-014 GASKET, EXHAUST HEADPIPEGASKET, EXHAUST HEADPIPE
-
121612-323 GASKET, EXHAUST TAILPIPEGASKET, EXHAUST TAILPIPE
-
131712-022 RESONATORRESONATOR
-
140612-471 SPRING, EXTENSIONSPRING, EXTENSION
-
151612-685 MOUNT, RUBBER RESONATOR STANDOFFMOUNT, RUBBER RESONATOR STANDOFF
-
160612-668 SPRING, EXTENSIONSPRING, EXTENSION
