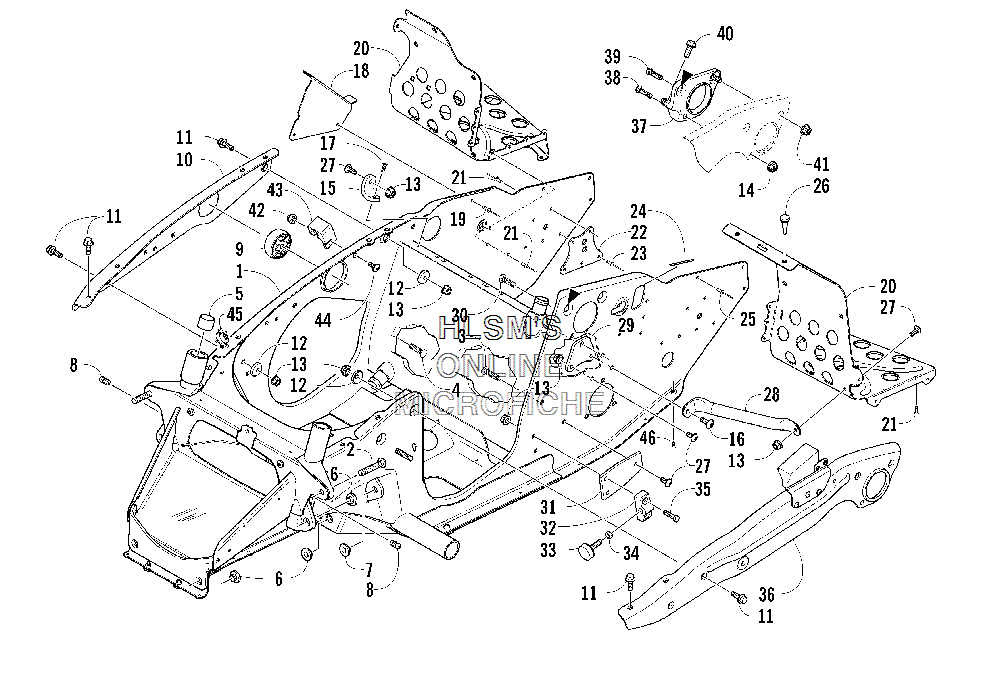

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
311707-071 COMPLETE CHASSIS ASSY.COMPLETE CHASSIS ASSY.
-
11707-070 CHASSIS - ASSY. (INC. 2-8)CHASSIS - ASSY. (INC. 2-8)
-
21623-019 BOLT, CARRIAGE (3/8-16X2.00) - RIBBEDBOLT, CARRIAGE (3/8-16X2.00) - RIBBED
-
31623-020 BOLT, CARRIAGE (5/16-18X1.62) - RIBBEDBOLT, CARRIAGE (5/16-18X1.62) - RIBBED
-
41623-212 BOLT, CARRIAGE (5/16-18 X 1.37) - RIBBEDBOLT, CARRIAGE (5/16-18 X 1.37) - RIBBED
-
50675-161 BEARINGBEARING
-
60607-657 BUSHING, LOWER A-ARM MOUNTBUSHING, LOWER A-ARM MOUNT
-
70607-656 BUSHING, UPPER A-ARM MOUNTBUSHING, UPPER A-ARM MOUNT
-
81623-010 FITTING, GREASEFITTING, GREASE
-
90608-364 MOUNT, ENGINEMOUNT, ENGINE
-
102706-806 BRACE, SIDE PLATE - RIGHTBRACE, SIDE PLATE - RIGHT
-
118020-040 SCREW, MACHINESCREW, MACHINE
-
120623-943 WASHER, CUPWASHER, CUP
-
138048-366 NUT, HEX FLG-TOP LOCK 1/4-20 GRNUT, HEX FLG-TOP LOCK 1/4-20 GR
-
148047-366 NUT, HEX FLG-NY LOCK 1/4-20 GRNUT, HEX FLG-NY LOCK 1/4-20 GR
-
152706-153 SUPPORT, SIDE PLATESUPPORT, SIDE PLATE
-
168017-580 SCREW, MACH-TXSTRH 1/4-20 X 3/4SCREW, MACH-TXSTRH 1/4-20 X 3/4
-
171623-115 SCREW, SELF TAP-TSFH 10-16X.750SCREW, SELF TAP-TSFH 10-16X.750
-
182706-552 GUARD, HOSEGUARD, HOSE
-
198060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
202606-958 FOOTREST - RIGHTFOOTREST - RIGHT
-
202606-959 FOOTREST - LEFTFOOTREST - LEFT
-
210623-282 RIVET, 3/16 MONOBOLTRIVET, 3/16 MONOBOLT
-
222706-151 PLATE, BACKINGPLATE, BACKING
-
230623-341 RIVET, 3/16 MONOBOLT (.214/.437RIVET, 3/16 MONOBOLT (.214/.437
-
240706-371 TRIMTRIM
-
251623-130 RIVET, 3/16 HUCK-M4RIVET, 3/16 HUCK-M4
-
263606-178 BUMPER, RUBBERBUMPER, RUBBER
-
278017-579 SCREW, MACHINESCREW, MACHINE
-
282706-517 TUBE, BELT GUARDTUBE, BELT GUARD
-
290607-725 PLATE, BACKINGPLATE, BACKING
-
301623-167 BOLT, CARRIAGE (5/16-18X1.125) - RIBBEDBOLT, CARRIAGE (5/16-18X1.125) - RIBBED
-
312606-939 PLATE, MOUNTING - TORQUE BUMPER - ENGINEPLATE, MOUNTING - TORQUE BUMPER - ENGINE
-
320704-352 MOUNT, TORQUE BUMPER - ENGINEMOUNT, TORQUE BUMPER - ENGINE
-
330608-396 BUMPER, TORQUE - ENGINEBUMPER, TORQUE - ENGINE
-
348042-486 NUTNUT
-
358002-042 SCREW, CAPSCREW, CAP
-
363706-050 BRACE, SIDE PLATE - LEFTBRACE, SIDE PLATE - LEFT
-
370708-467 BRACKET, BEARING SUPPORT (INC. 38-39)BRACKET, BEARING SUPPORT (INC. 38-39)
-
381623-410 BOLT, STUD (1/4-20X1.) - RIBBEDBOLT, STUD (1/4-20X1.) - RIBBED
-
391623-411 BOLT, STUD (5/16-18X1) - RIBBEDBOLT, STUD (5/16-18X1) - RIBBED
-
400623-190 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
418047-426 NUT, LOCKNUT, LOCK
-
428041-246 NUT, LOCKNUT, LOCK
-
430608-432 GUIDE, ROPEGUIDE, ROPE
-
448017-400 SCREW, CAPSCREW, CAP
-
451623-171 CLIPCLIP
-
461623-018 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
