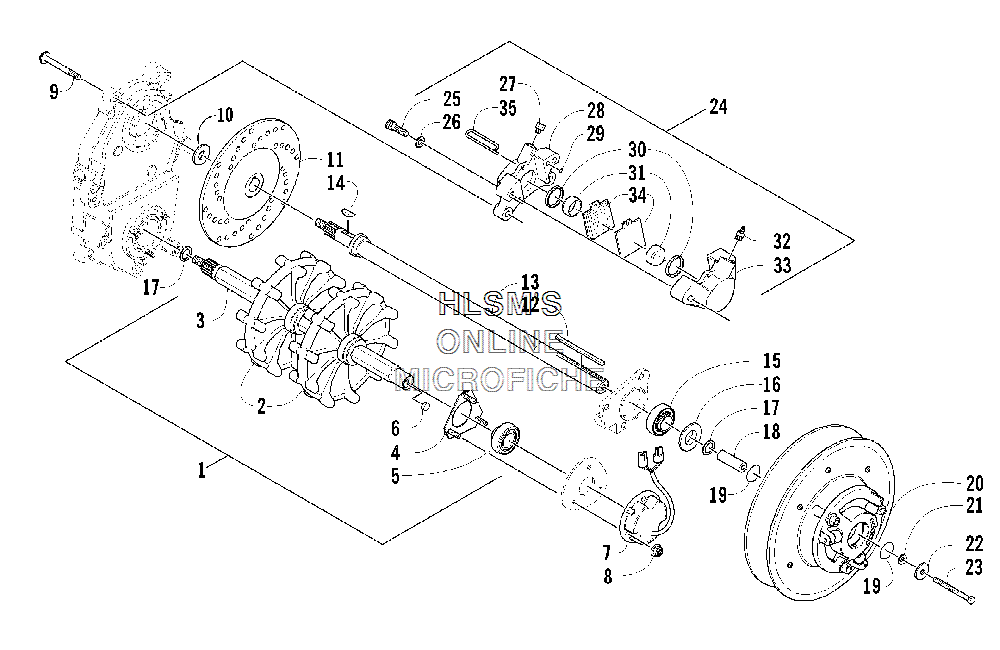

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10728-114 TRACK DRIVE ASSY. (INC. 2-6)TRACK DRIVE ASSY. (INC. 2-6)
-
21602-510 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-551 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-374 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-167 MAGNETMAGNET
-
70630-166 REGULATOR, VOLTAGE (4 WIRE)REGULATOR, VOLTAGE (4 WIRE)
-
88047-426 NUT, LOCKNUT, LOCK
-
98020-315 SCREW, CAPSCREW, CAP
-
100623-912 WASHER, FLATWASHER, FLAT
-
111602-205 DISC, BRAKEDISC, BRAKE
-
120101-076 KEY (3/16 X 1/4 X 3)KEY (3/16 X 1/4 X 3)
-
130702-506 SHAFT, DRIVEN (INC. 14-16)SHAFT, DRIVEN (INC. 14-16)
-
140602-598 KEY, WOODRUFF-HARDENEDKEY, WOODRUFF-HARDENED
-
151602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
161602-367 SPACERSPACER
-
170623-118 WASHER, FLAT (1.00 X1.43 X.030)WASHER, FLAT (1.00 X1.43 X.030)
-
170623-119 WASHER, FLAT (1.00 X1.43 X.075)WASHER, FLAT (1.00 X1.43 X.075)
-
180648-042 SHAFT, STUBSHAFT, STUB
-
190616-032 O-RING-WINDSHIELD (1 I.D.)O-RING-WINDSHIELD (1 I.D.)
-
200726-182 CLUTCH, DRIVENCLUTCH, DRIVEN
-
210123-053 WASHER, FLAT (5/16 X 3/4)WASHER, FLAT (5/16 X 3/4)
-
220123-019 WASHER, FLAT (21/64X1-1/2X)WASHER, FLAT (21/64X1-1/2X)
-
238002-139 SCREW, CAPSCREW, CAP
-
240602-829 CALIPER, BRAKE ASSY. (INC. 25-35)CALIPER, BRAKE ASSY. (INC. 25-35)
-
258005-677 SCREW, CAPSCREW, CAP
-
268050-272 WASHER, FLAT (3/8 X .734 X .063)WASHER, FLAT (3/8 X .734 X .063)
-
270602-590 FITTING, ADAPTERFITTING, ADAPTER
-
290602-729 O-RING, HOUSINGO-RING, HOUSING
-
300602-583 O-RINGO-RING
-
310602-708 PISTONPISTON
-
320602-707 SCREW, BLEED - ASSY.SCREW, BLEED - ASSY.
-
340702-229 PAD, BRAKE - SET (INC. 35)PAD, BRAKE - SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
