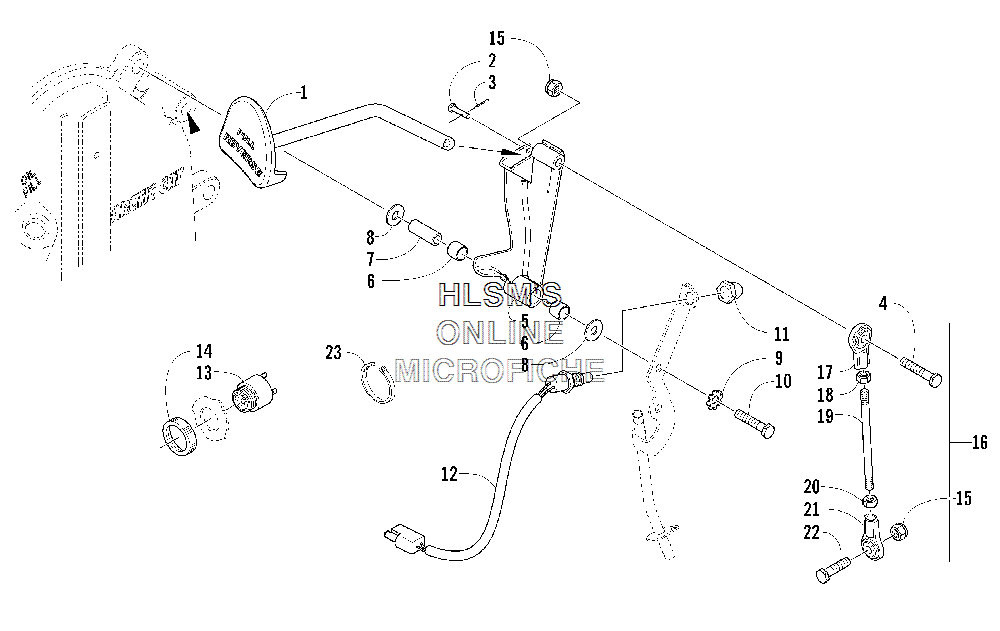

REVERSE SHIFT LEVER ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11602-429 LEVER, REVERSE ASSY.LEVER, REVERSE ASSY.
-
20623-641 PIN, CLEVISPIN, CLEVIS
-
30117-868 PIN, COTTERPIN, COTTER
-
48002-137 SCREW, CAPSCREW, CAP
-
50702-806 SHIFT PIVOT (INC. 6)SHIFT PIVOT (INC. 6)
-
60602-844 BUSHINGBUSHING
-
70602-853 AXLEAXLE
-
88050-247 WASHER, FLATWASHER, FLAT
-
98053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
108002-140 SCREW, CAPSCREW, CAP
-
110630-013 BOOT, SWITCHBOOT, SWITCH
-
120630-011 SWITCH, ALARMSWITCH, ALARM
-
130630-010 ALARM, REVERSE (INC. 14)ALARM, REVERSE (INC. 14)
-
140630-017 RING, RETAININGRING, RETAINING
-
158040-426 NUT, LOCKNUT, LOCK
-
160702-499 LINKAGE, SHIFTING - ASSY. (INC. 17-21)LINKAGE, SHIFTING - ASSY. (INC. 17-21)
-
170602-305 ROD END - LEFTROD END - LEFT
-
180623-260 NUT, JAM - LEFTNUT, JAM - LEFT
-
200123-144 NUT, JAM - RIGHTNUT, JAM - RIGHT
-
210602-322 ROD END - RIGHTROD END - RIGHT
-
228002-132 SCREW, CAPSCREW, CAP
-
230123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
