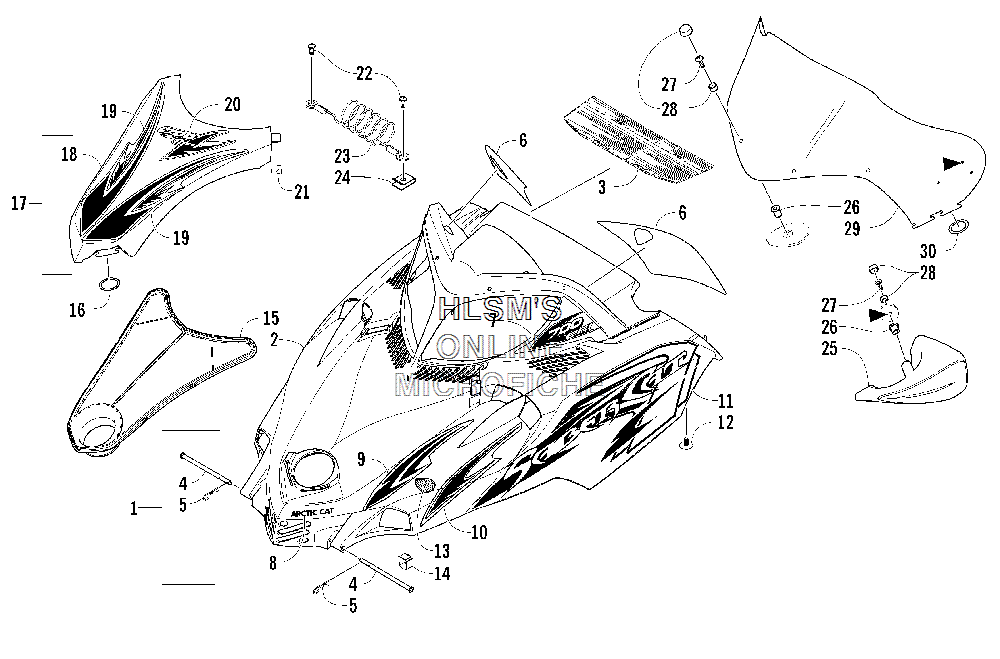

HOOD AND WINDSHIELD ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11718-796 HOOD W/DECALS (INC. 2-11)HOOD W/DECALS (INC. 2-11)
-
21718-667 HOOD W/O DECALS (INC. 3-5)HOOD W/O DECALS (INC. 3-5)
-
35611-483 DECAL, WARNING - GENERAL AND BRAKEDECAL, WARNING - GENERAL AND BRAKE
-
41623-026 PIN, CLEVISPIN, CLEVIS
-
50623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
66611-668 DECAL, CONSOLE - RIGHTDECAL, CONSOLE - RIGHT
-
66611-669 DECAL, CONSOLE - LEFTDECAL, CONSOLE - LEFT
-
76611-660 DECAL, HEADLIGHT - RIGHTDECAL, HEADLIGHT - RIGHT
-
76611-661 DECAL, HEADLIGHT - LEFTDECAL, HEADLIGHT - LEFT
-
86611-673 DECAL, HOOD - "ARCTIC CAT"DECAL, HOOD - "ARCTIC CAT"
-
96611-662 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
96611-663 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
106611-664 DECAL, HOOD - FORWARD - RIGHTDECAL, HOOD - FORWARD - RIGHT
-
106611-665 DECAL, HOOD - FORWARD - LEFTDECAL, HOOD - FORWARD - LEFT
-
116611-666 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
116611-667 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
120623-544 PLUG, CHRISTMAS TREEPLUG, CHRISTMAS TREE
-
130617-466 FOAM, HOODFOAM, HOOD
-
140123-394 CLIP, RETAINING - FOAMCLIP, RETAINING - FOAM
-
153606-150 SCREEN, HOODSCREEN, HOOD
-
162606-801 O-RINGO-RING
-
171718-788 COVER, HOOD (INC. 18-21)COVER, HOOD (INC. 18-21)
-
182706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
196611-674 DECAL, COVER - RIGHTDECAL, COVER - RIGHT
-
196611-675 DECAL, COVER - LEFTDECAL, COVER - LEFT
-
206611-672 DECAL, COVER - CENTERDECAL, COVER - CENTER
-
212606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
220623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
232606-726 CABLE, HOODCABLE, HOOD
-
241623-052 U-NUTU-NUT
-
252639-477 KIT, MIRROR (INC. SIX NO. 26-28)KIT, MIRROR (INC. SIX NO. 26-28)
-
260623-845 NUT, EXPANSIONNUT, EXPANSION
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
293606-943 WINDSHIELD, FORMED-W/HOLEWINDSHIELD, FORMED-W/HOLE
-
300616-032 O-RING, WINDSHIELD (1 I.D.)O-RING, WINDSHIELD (1 I.D.)
