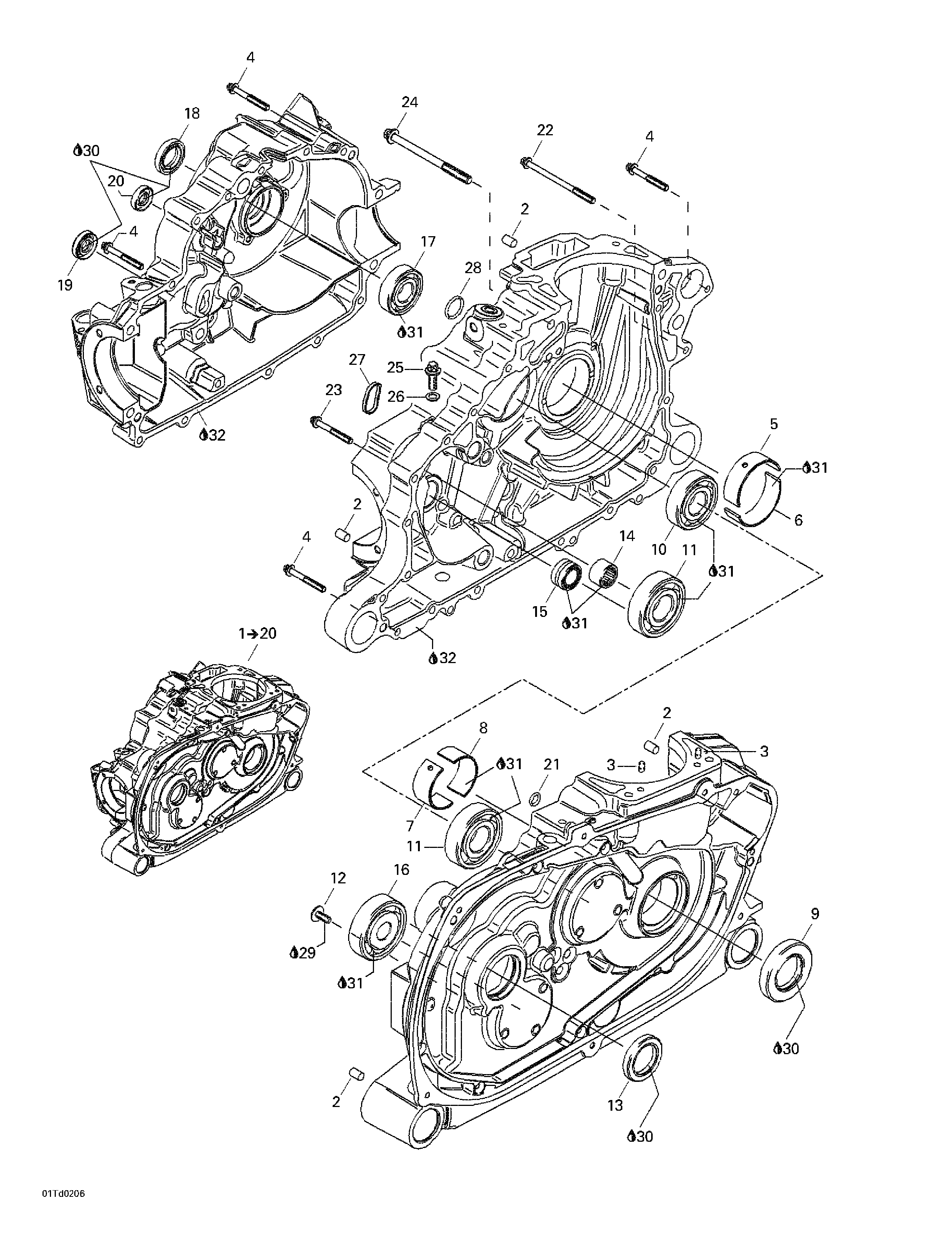

01- Crankcase для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1711296652 Crankcase Ass'y. Includes 1 - 20.Crankcase Ass'y. Includes 1 - 20.
-
2290632010 Center Pin 8 x 12Center Pin 8 x 12
-
3420929650 Drive Pin 5 x 10Drive Pin 5 x 10
-
4711641193 Torx Flanged Screw M6 x 45Torx Flanged Screw M6 x 45
-
5711933492 Plain BearingPlain Bearing
-
6711933495 Plain BearingPlain Bearing
-
7711233740 Plain BearingPlain Bearing
-
8711233745 Plain BearingPlain Bearing
-
9711630150 Oil SealOil Seal
-
10711632200 Ball BearingBall Bearing
-
11420932825 Ball BearingBall Bearing
-
12711241526 Torx Screw M6 x 16Torx Screw M6 x 16
-
13711950087 Oil SealOil Seal
-
14711832240 Needle BearingNeedle Bearing
-
15711232085 Needle BearingNeedle Bearing
-
16711632290 Ball BearingBall Bearing
-
17711932432 Ball BearingBall Bearing
-
18290930390 Oil SealOil Seal
-
19711650310 Oil SealOil Seal
-
20711250450 Oil SealOil Seal
-
21711850900 O RingO Ring
-
22711641223 Torx Flanged Screw M6 x 85Torx Flanged Screw M6 x 85
-
23711641193 Torx Flanged Screw M6 x 45Torx Flanged Screw M6 x 45
-
24711640938 Torx Flanged Screw M8 x 90Torx Flanged Screw M8 x 90
-
25711641243 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
26420950141 Sealing RingSealing Ring
-
27711630180 GasketGasket
-
28711950180 O-RingO-Ring
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
32293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
