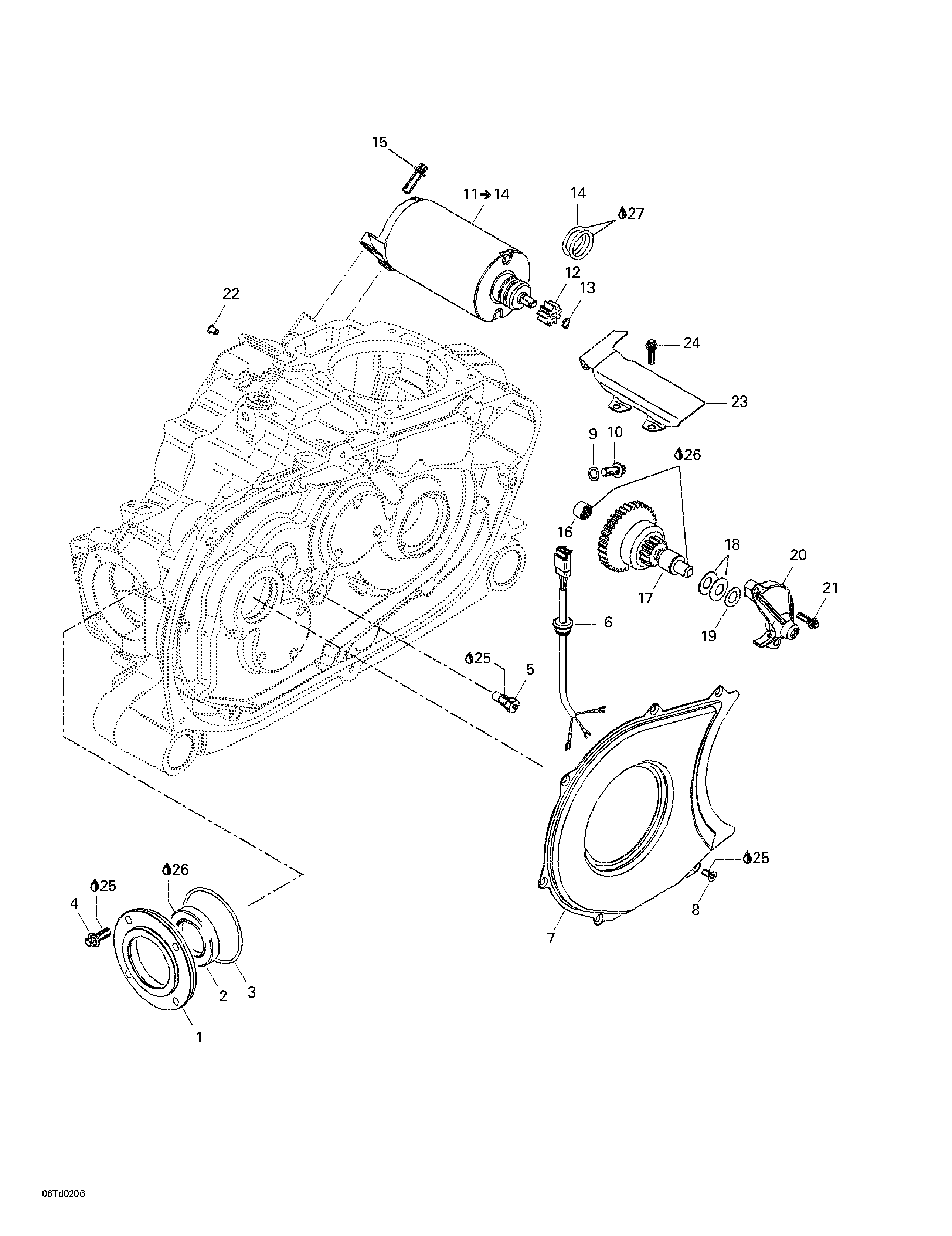

04- Electric Starter для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1711610240 Bearing CoverBearing Cover
-
2711650680 Oil SealOil Seal
-
3711630130 O RingO Ring
-
4711641243 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
5711241850 Contact Screw M10Contact Screw M10
-
6711265831 Wiring HarnessWiring Harness
-
7711610262 Air GuideAir Guide
-
8711241465 Torx Taptite Screw M6 x 12Torx Taptite Screw M6 x 12
-
9420950141 Sealing RingSealing Ring
-
10711641243 Torx Flanged Screw M8 x 25Torx Flanged Screw M8 x 25
-
11711888991 Electric Starter Ass'y. Includes 11 - 14.Electric Starter Ass'y. Includes 11 - 14.
-
10420664710 Brush Kit (Not shown)Brush Kit (Not shown)
-
12290834521 Starter Gear (9 teeth)Starter Gear (9 teeth)
-
13711845600 Retaining RingRetaining Ring
-
14711250300 O-RingO-Ring
-
15711641233 Torx Flanged Screw M6 x 25Torx Flanged Screw M6 x 25
-
16290232480 Needle BushingNeedle Bushing
-
17711889645 Starter DriveStarter Drive
-
18711238300 Spring WasherSpring Washer
-
19711827261 Thrust WasherThrust Washer
-
20711610376 Gear CoverGear Cover
-
21290640690 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
22711860245 PlugPlug
-
23711251240 Heat DeflectorHeat Deflector
-
24711641043 Torx Flanged Screw M6 x 16Torx Flanged Screw M6 x 16
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
