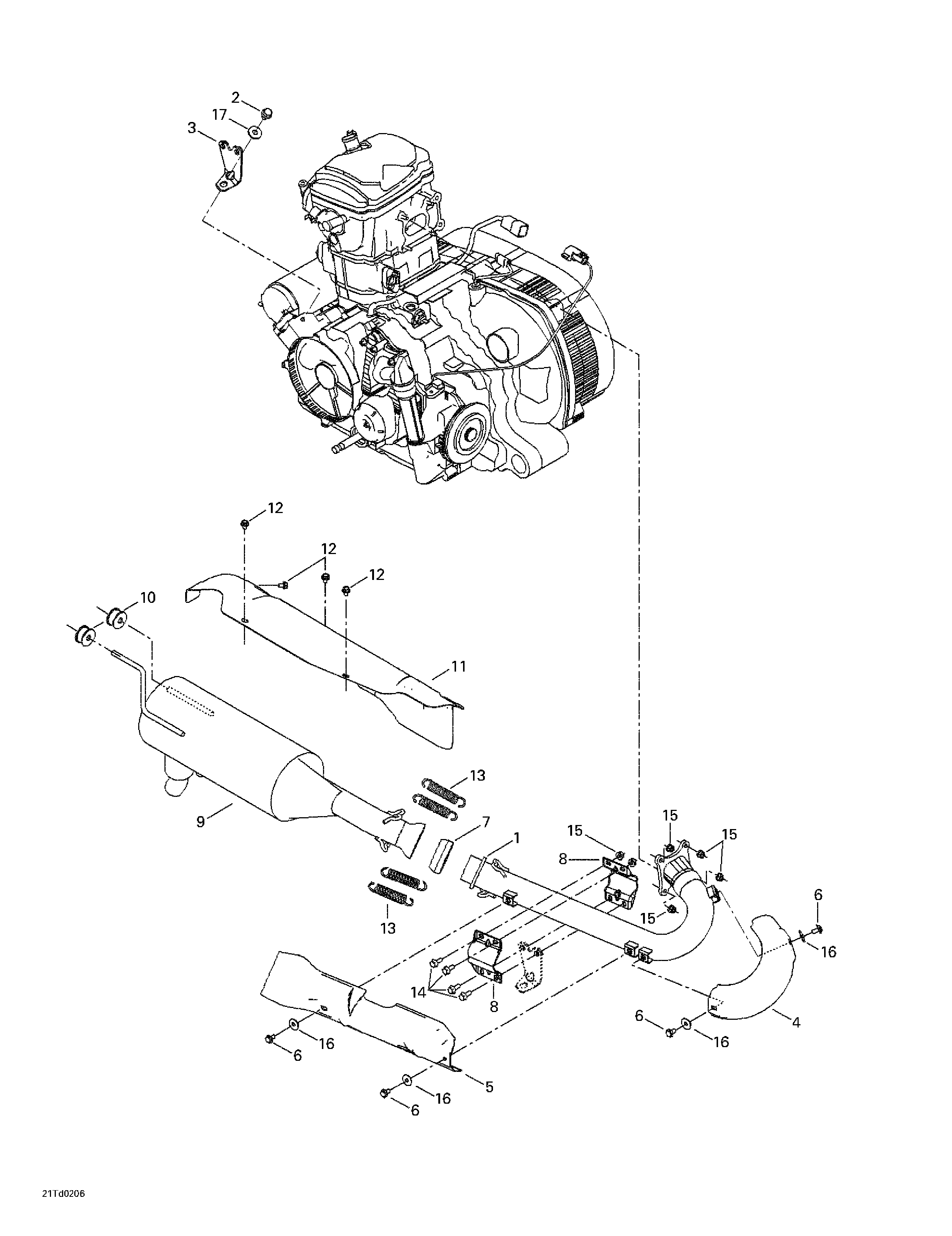

01- Exhaust System для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1707600084 Tuned PipeTuned Pipe
-
2207581646 Hex. Flanged Screw M8 x 16. (Scotch Grip)Hex. Flanged Screw M8 x 16. (Scotch Grip)
-
3707600131 Exhaust SupportExhaust Support
-
4707600167 Heat ShieldHeat Shield
-
5707600168 Heat ShieldHeat Shield
-
6250000073 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
7707600164 Pipe GasketPipe Gasket
-
8707600165 Exhaust ClampExhaust Clamp
-
9707600130 Tuned PipeTuned Pipe
-
10707600012 Rubber MountRubber Mount
-
11707600076 Heat ShieldHeat Shield
-
12210261040 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
13707600177 SpringSpring
-
14207661646 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
15233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
16224060201 Flat WasherFlat Washer
-
17234082410 Flat WasherFlat Washer
