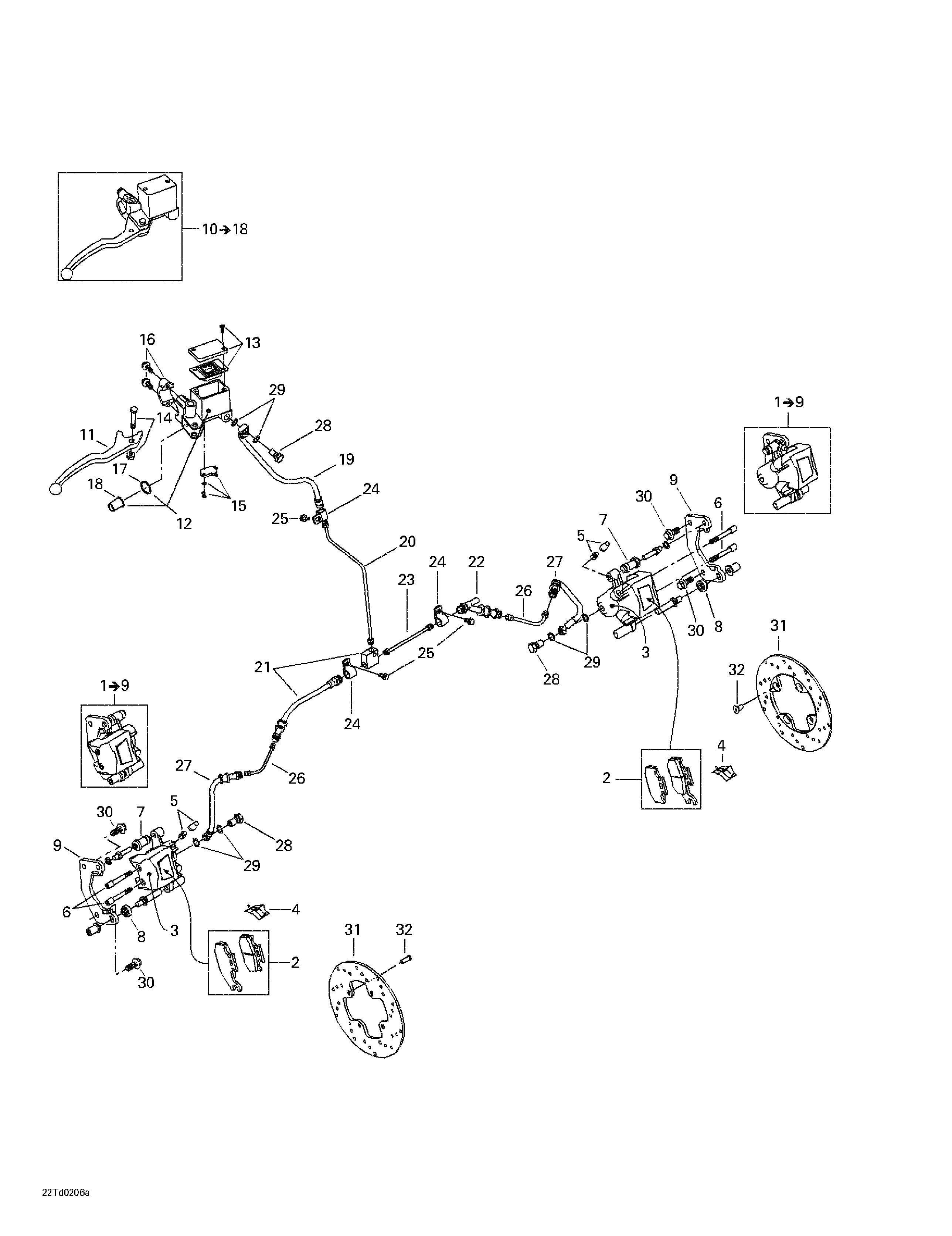

06- Hydraulic Front Brake для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1705600118 R.H. Caliper. Includes 1 - 9.R.H. Caliper. Includes 1 - 9.
-
705600119 LH CaliperLH Caliper
-
2705600004 R.H. Brake Pad KitR.H. Brake Pad Kit
-
705600014 LH Brake Pad KitLH Brake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeder ScrewBleeder Screw
-
6705600081 Pin SetPin Set
-
7705600082 BootBoot
-
8705600083 BootBoot
-
9705600149 Lining SupportLining Support
-
10705600120 Master Cylinder. Includes 10 - 18.Master Cylinder. Includes 10 - 18.
-
11705600164 Arm LeverArm Lever
-
12705600152 Piston Kit (Included Item 17 and 18)Piston Kit (Included Item 17 and 18)
-
13705600084 Boot KitBoot Kit
-
14705600085 Bolt Kit (Lever)Bolt Kit (Lever)
-
15705600148 Switch KitSwitch Kit
-
16705600087 Bracket KitBracket Kit
-
17705600088 CirclipCirclip
-
18705600089 BootBoot
-
19705600165 Brake Handle HoseBrake Handle Hose
-
20705600036 Vertical TubeVertical Tube
-
21705600174 R.H. Flexible HoseR.H. Flexible Hose
-
22705600175 LH Flexible HoseLH Flexible Hose
-
23705600038 Horizontal TubeHorizontal Tube
-
24705600232 Tube ClipTube Clip
-
25210261680 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
26705600176 Rigid TubeRigid Tube
-
27705600177 Flexible HoseFlexible Hose
-
28705600056 Banjo BoltBanjo Bolt
-
29414920600 WasherWasher
-
30250000057 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
31705600168 Brake Disk (Front)Brake Disk (Front)
-
32235381646 Torx Screw M8 x 16 (Scotch Grip)Torx Screw M8 x 16 (Scotch Grip)
