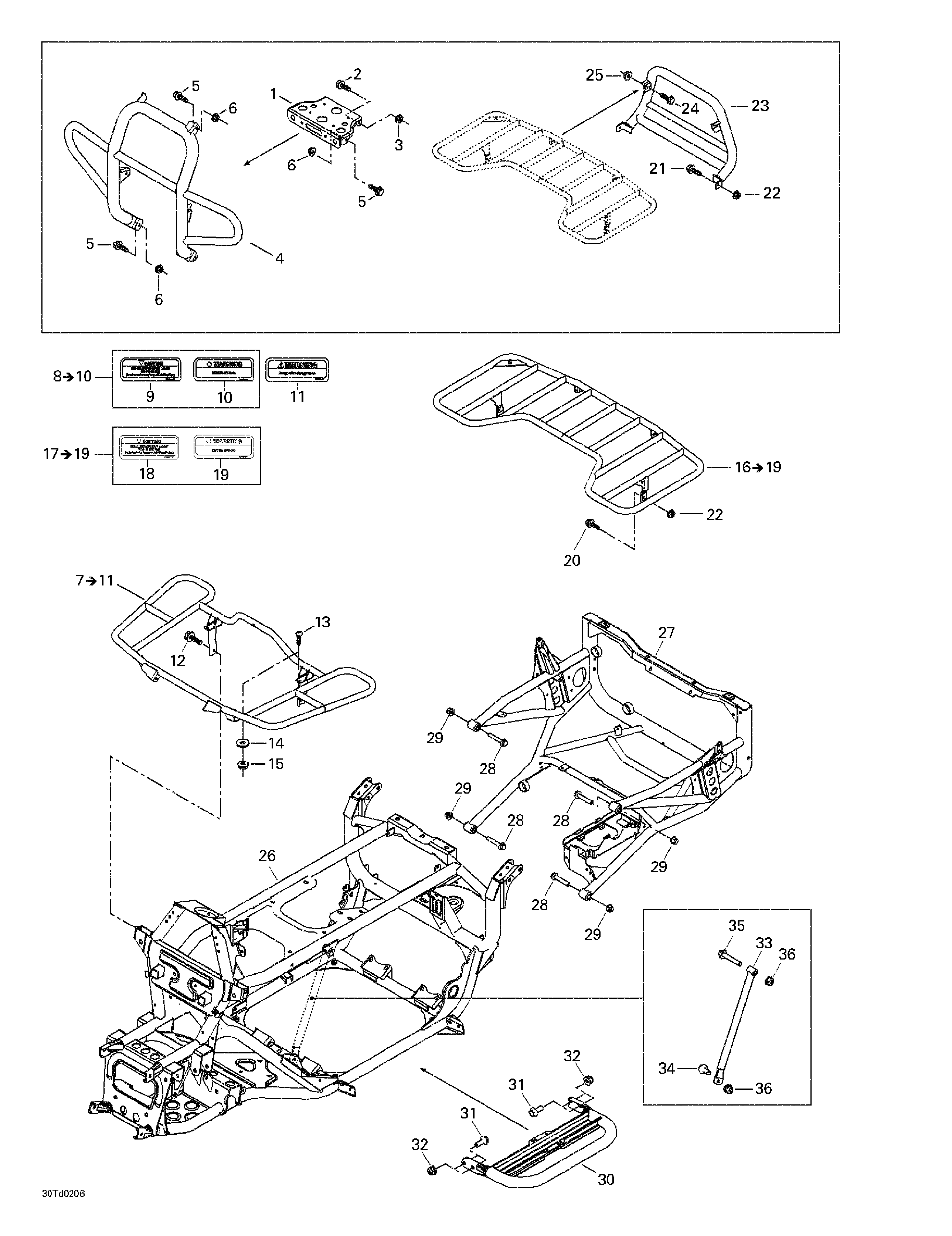

09- Frame And Luggage Racks для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1705200196 Winch LatchWinch Latch
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
4705000001 Front BumperFront Bumper
-
5207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
6233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
7703500053 Front Luggage Rack Ass'y. Includes 7 - 11.Front Luggage Rack Ass'y. Includes 7 - 11.
-
8704900037 Front Cargo Warning Labels. Includes 8 - 10.Front Cargo Warning Labels. Includes 8 - 10.
-
11704900038 Warning Label. (Cover Attachment)Warning Label. (Cover Attachment)
-
12207582044 Hex. Flanged Screw M8 x 20. (Scotch Grip)Hex. Flanged Screw M8 x 20. (Scotch Grip)
-
13250000035 Phillips Screw M6 x 25Phillips Screw M6 x 25
-
14224060201 Flat WasherFlat Washer
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16703500059 Rear Luggage Rack Ass'y. Includes 16 - 19.Rear Luggage Rack Ass'y. Includes 16 - 19.
-
17704900036 Rear Cargo Warning Labels. Includes 17 - 19.Rear Cargo Warning Labels. Includes 17 - 19.
-
20207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
21207685044 Hex. Flanged Screw M8 x 50Hex. Flanged Screw M8 x 50
-
22233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
23705000210 Rear Bumper (Silver)Rear Bumper (Silver)
-
24207682046 Hex. Flanged Srew M8 x 20Hex. Flanged Srew M8 x 20
-
25233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
26705200258 Frame (Black)Frame (Black)
-
27705200254 Frame ExtentionFrame Extention
-
28207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
29233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
30705000008 FootrestFootrest
-
31207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
32233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
33705200404 R.H. Removable BraceR.H. Removable Brace
-
705200405 LH Removable BraceLH Removable Brace
-
34207682544 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
35207684544 Hex. Flanged Screw M8 x 45Hex. Flanged Screw M8 x 45
-
36233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
