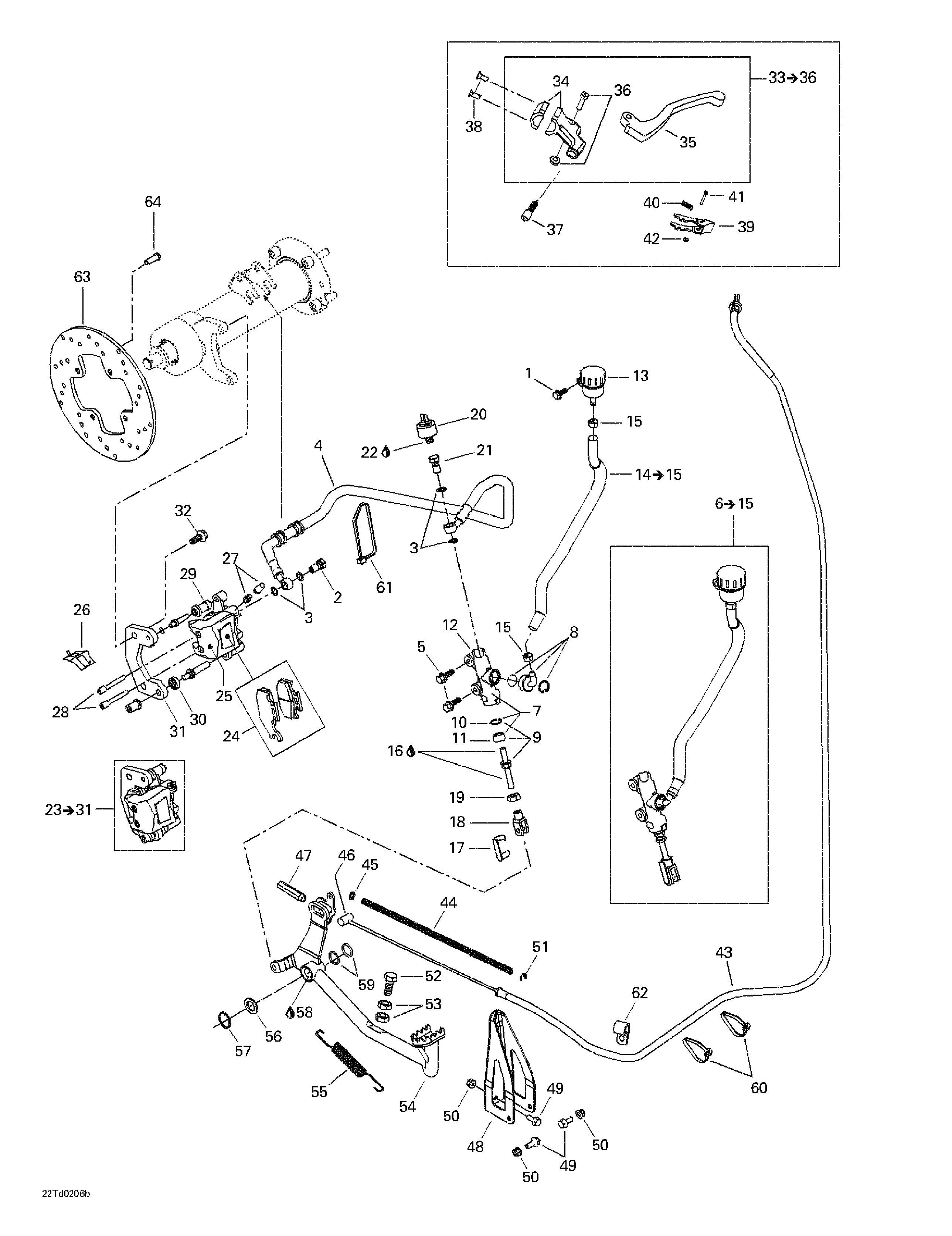

06- Hydraulic Rear Brake для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1210261680 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
2705600056 Banjo BoltBanjo Bolt
-
3414920600 WasherWasher
-
4705600163 Flexible HoseFlexible Hose
-
5207581646 Hex. Flanged Screw M8 x 16. (Scotch Grip)Hex. Flanged Screw M8 x 16. (Scotch Grip)
-
6705600154 Master Cylinder Ass'y. Includes 6 - 15.Master Cylinder Ass'y. Includes 6 - 15.
-
7705600063 Piston Set. (Included Item 10 and 11)Piston Set. (Included Item 10 and 11)
-
8705600064 Pusher BracketPusher Bracket
-
10705600068 CirclipCirclip
-
11705600090 BootBoot
-
13705600067 Oil TankOil Tank
-
14705600169 Oil Housing Hose. Includes 14 - 15.Oil Housing Hose. Includes 14 - 15.
-
17250400007 PinPin
-
18705600100 YokeYoke
-
19232081414 Hex. Nut M8Hex. Nut M8
-
20710000099 Brake SwitchBrake Switch
-
21705600092 Banjo BoltBanjo Bolt
-
22293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
23705600122 Rear Caliper. Includes 23 - 31.Rear Caliper. Includes 23 - 31.
-
24705600150 Brake Pad KitBrake Pad Kit
-
25705600078 Piston SetPiston Set
-
26705600079 SpringSpring
-
27705600080 Bleeder ScrewBleeder Screw
-
28705600081 Pin SetPin Set
-
29705600082 BootBoot
-
30705600083 BootBoot
-
31705600149 Lining Support (Brake Pad)Lining Support (Brake Pad)
-
32250000058 Hex. Screw M10 x 15 (Scotch Grip)Hex. Screw M10 x 15 (Scotch Grip)
-
33705600269 Brake Handle Ass'y. Includes 33 - 36.Brake Handle Ass'y. Includes 33 - 36.
-
34705600270 Clamp KitClamp Kit
-
35705600186 LeverLever
-
36705600187 Pivot KitPivot Kit
-
37250000030 ScrewScrew
-
38205351646 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
39705600224 Block LeverBlock Lever
-
40705600225 SpringSpring
-
41208032291 Screw M3 x 22Screw M3 x 22
-
42232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
43705600124 Rear Brake CableRear Brake Cable
-
44705600173 SpringSpring
-
45705600145 Flat WasherFlat Washer
-
46705600146 Pin CylinderPin Cylinder
-
47705600147 NutNut
-
48705600191 Cable SupportCable Support
-
49207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
50233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
51705600272 CirclipCirclip
-
52207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
53232006414 Hex. Nut M10Hex. Nut M10
-
54705600125 Brake PedalBrake Pedal
-
55705600107 Brake Pedal SpringBrake Pedal Spring
-
56503107800 WasherWasher
-
57293370012 CirclipCirclip
-
58293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
59293300053 O-RingO-Ring
-
60414115200 Tie Rap 180 mmTie Rap 180 mm
-
61293750008 Tie Rap 350 mmTie Rap 350 mm
-
62414351600 ClipClip
-
63705600167 Disc Brake (Rear)Disc Brake (Rear)
-
64235381646 Torx Screw M8 x 16 (Scotch Grip)Torx Screw M8 x 16 (Scotch Grip)
