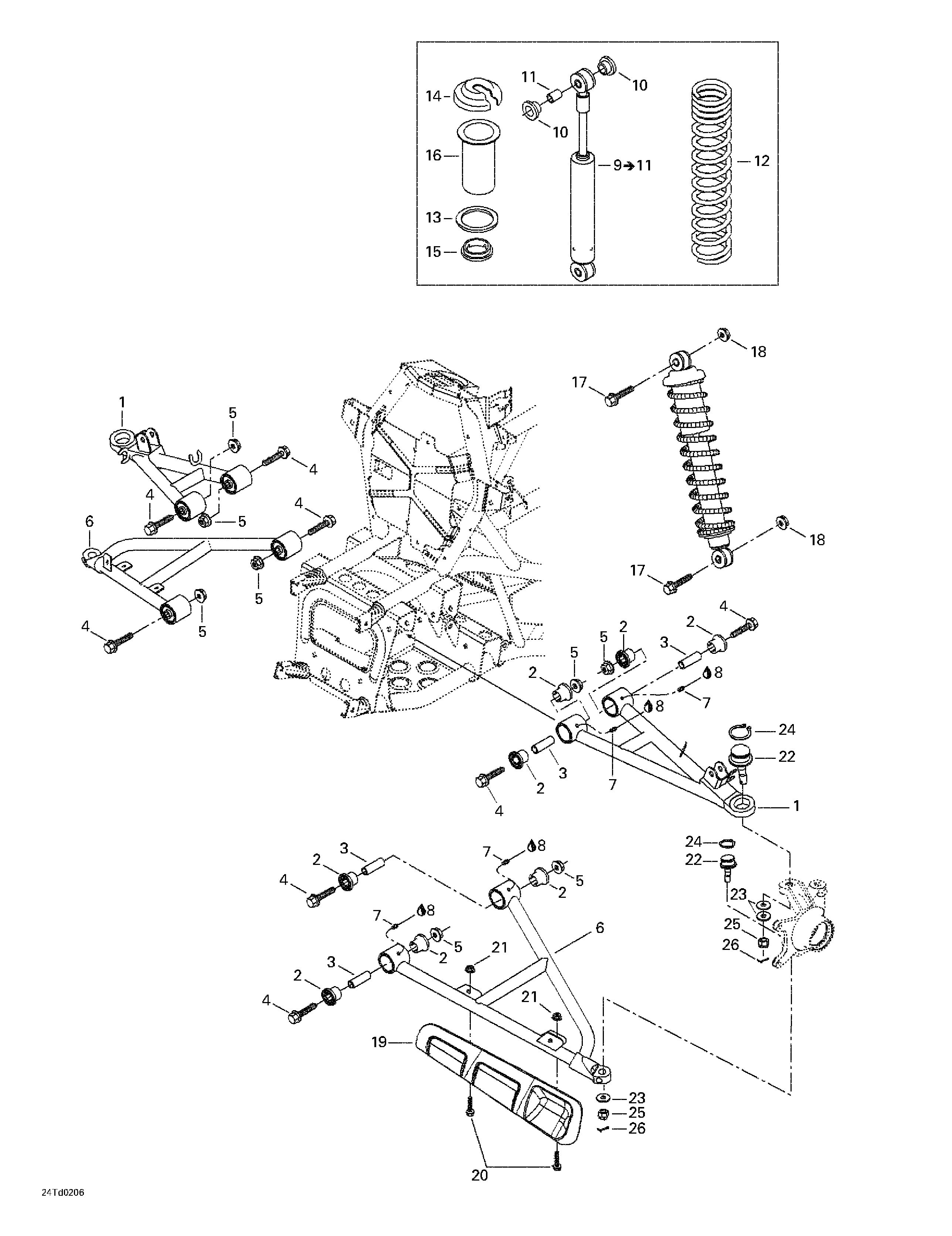

07- Front Suspension для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1706200187 R.H. Upper Arm (Black)R.H. Upper Arm (Black)
-
706200193 LH Upper Arm (Black)LH Upper Arm (Black)
-
2706200181 CushionCushion
-
3706200182 Interior BushingInterior Bushing
-
4207607046 Hex. Flanged Screw M10 x 70Hex. Flanged Screw M10 x 70
-
5233201416 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
6706200196 R.H. Lower Arm (Black)R.H. Lower Arm (Black)
-
706200200 LH Lower Arm (Black)LH Lower Arm (Black)
-
7408200700 Grease FittingGrease Fitting
-
8293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
9706200221 Front Shock. Includes 9 - 11.Front Shock. Includes 9 - 11.
-
10706200185 CushionCushion
-
11706200186 BushingBushing
-
12706200006 Front SpringFront Spring
-
13706000028 Ring HolderRing Holder
-
14503140600 Spring StopperSpring Stopper
-
15706000007 Seat SpringSeat Spring
-
16503139800 ProtectorProtector
-
17207604544 Hex. Flanged Screw M10 x 45Hex. Flanged Screw M10 x 45
-
18233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
19706200179 R.H. Arm ProtectorR.H. Arm Protector
-
706200180 LH Arm ProtectorLH Arm Protector
-
20207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
21233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22706200091 Ball JointBall Joint
-
23706200281 Hardened WasherHardened Washer
-
24293370009 Circlip 32 mmCirclip 32 mm
-
25232221414 Hex. Castellated Nut M12Hex. Castellated Nut M12
-
26211400017 Cotter PinCotter Pin
