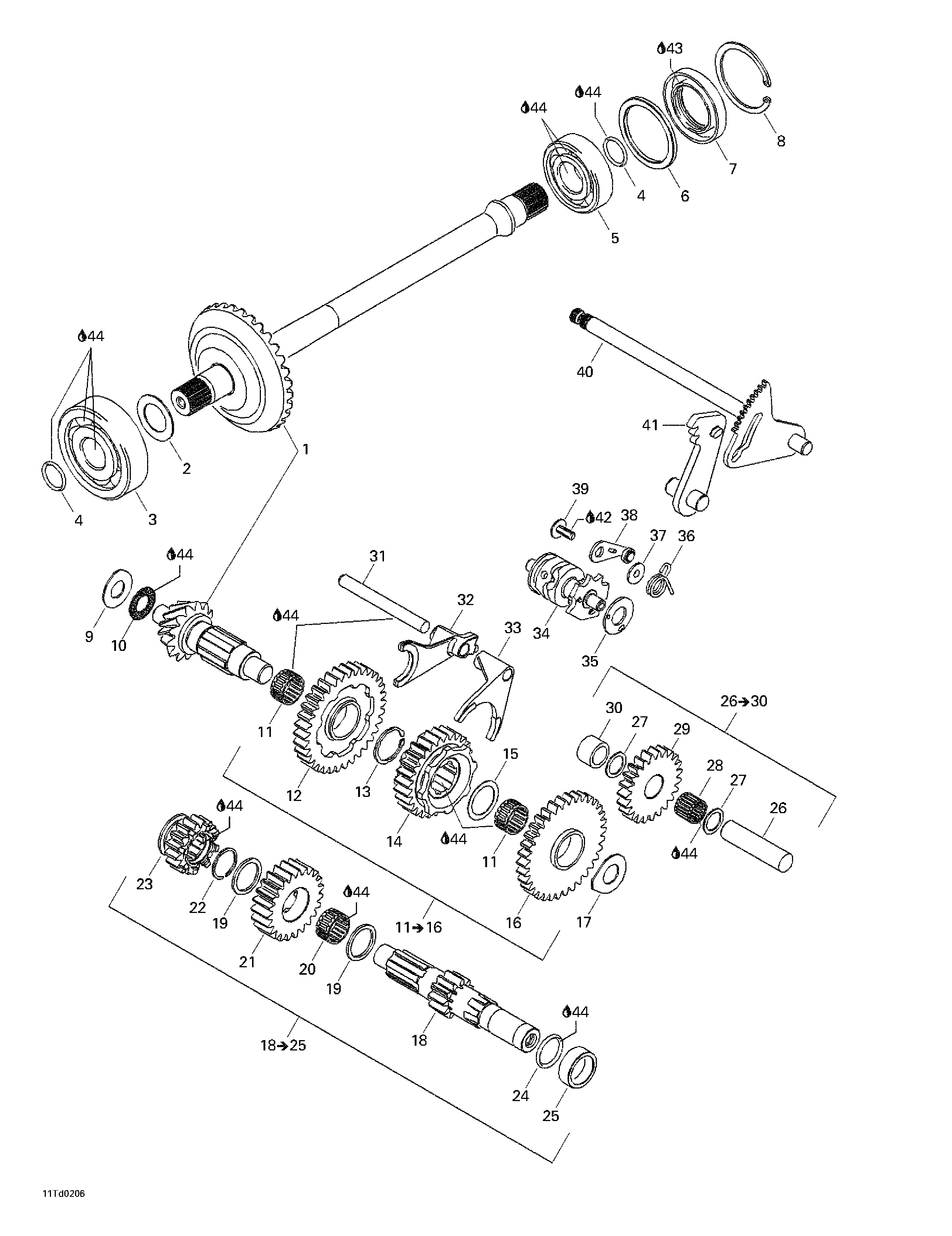

05- Gear Shift для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1711296530 Bevel Gear Ass'yBevel Gear Ass'y
-
2711281300 Thrust Washer SetThrust Washer Set
-
3711632280 Ball BearingBall Bearing
-
4420430370 O-RingO-Ring
-
5420932825 Ball BearingBall Bearing
-
6711247090 Distance RingDistance Ring
-
7711650680 Oil SealOil Seal
-
8711445070 Retaining RingRetaining Ring
-
9711281304 Thrust Washer Set (Mag Side)Thrust Washer Set (Mag Side)
-
10711632300 Needle BearingNeedle Bearing
-
11711281282 Gearwheel Set. Includes 11 - 16.Gearwheel Set. Includes 11 - 16.
-
11711632070 Needle BearingNeedle Bearing
-
13711245850 Retaining RingRetaining Ring
-
17711281302 Thrust Washer SetThrust Washer Set
-
18711220978 Countershaft Ass'y (11 Teeth). Includes 18 - 25.Countershaft Ass'y (11 Teeth). Includes 18 - 25.
-
20711632070 Needle BearingNeedle Bearing
-
22420445300 CirclipCirclip
-
24711630040 O-RingO-Ring
-
25711247110 Distance RingDistance Ring
-
26711229605 Idle Gear Shaft. Includes 26 - 30.Idle Gear Shaft. Includes 26 - 30.
-
26711229600 Needle PinNeedle Pin
-
27711944190 Thrust WasherThrust Washer
-
28711432030 Needle CageNeedle Cage
-
29711635310 Internal Gear (23 teeth)Internal Gear (23 teeth)
-
30711247120 Distance SleeveDistance Sleeve
-
31711229540 PinPin
-
32711257180 Shift ForkShift Fork
-
33711257230 Shift ForkShift Fork
-
34711257175 Shift DrumShift Drum
-
35711227567 Isolating WasherIsolating Washer
-
36711239561 Index SpringIndex Spring
-
37711227710 BushingBushing
-
38703500189 Transmission Repair KitTransmission Repair Kit
-
39711241526 Torx Screw M6 x 16Torx Screw M6 x 16
-
40711220806 Shift ShaftShift Shaft
-
41711257156 Lock LeverLock Lever
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
