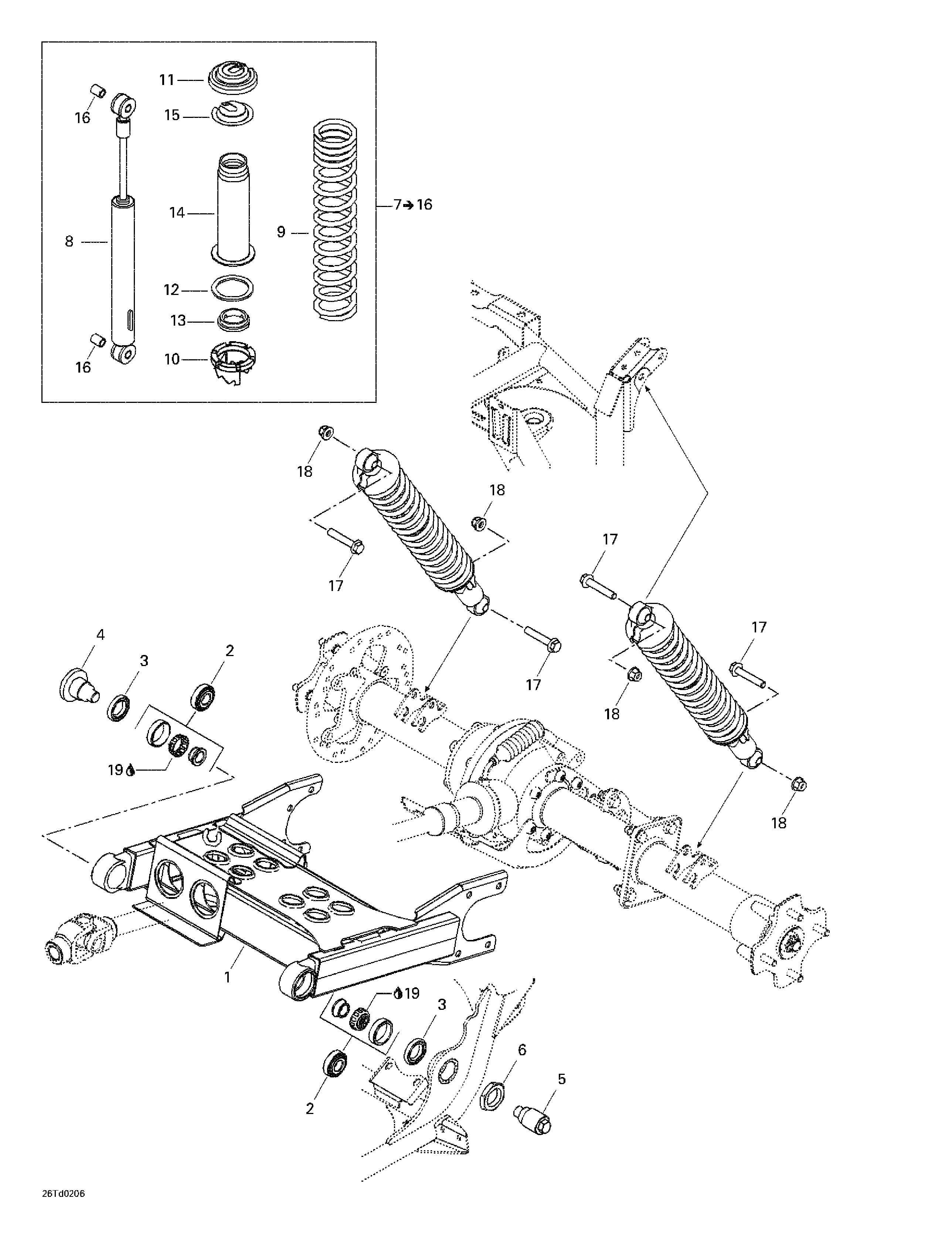

08- Rear Suspension для BRP Quest, Blue/bleu - 2002
-
№АртикулНазвание
-
1706000106 Swing ArmSwing Arm
-
2706000009 Cone BearingCone Bearing
-
3706000010 SealSeal
-
4706000092 R.H. Pivot BoltR.H. Pivot Bolt
-
5706000093 LH Pivot BoltLH Pivot Bolt
-
6706000006 Hex. Jam NutHex. Jam Nut
-
8706000129 Rear ShockRear Shock
-
9706000172 Rear SpringRear Spring
-
10706000073 Adjuster RingAdjuster Ring
-
11503140600 Spring StopperSpring Stopper
-
12706000028 Ring HolderRing Holder
-
13706000007 Seat SpringSeat Spring
-
14503139800 ProtectorProtector
-
15503141600 CapCap
-
16706000146 CushionCushion
-
17207605544 Hex. Flanged Screw M10 x 55Hex. Flanged Screw M10 x 55
-
18233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
19293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
