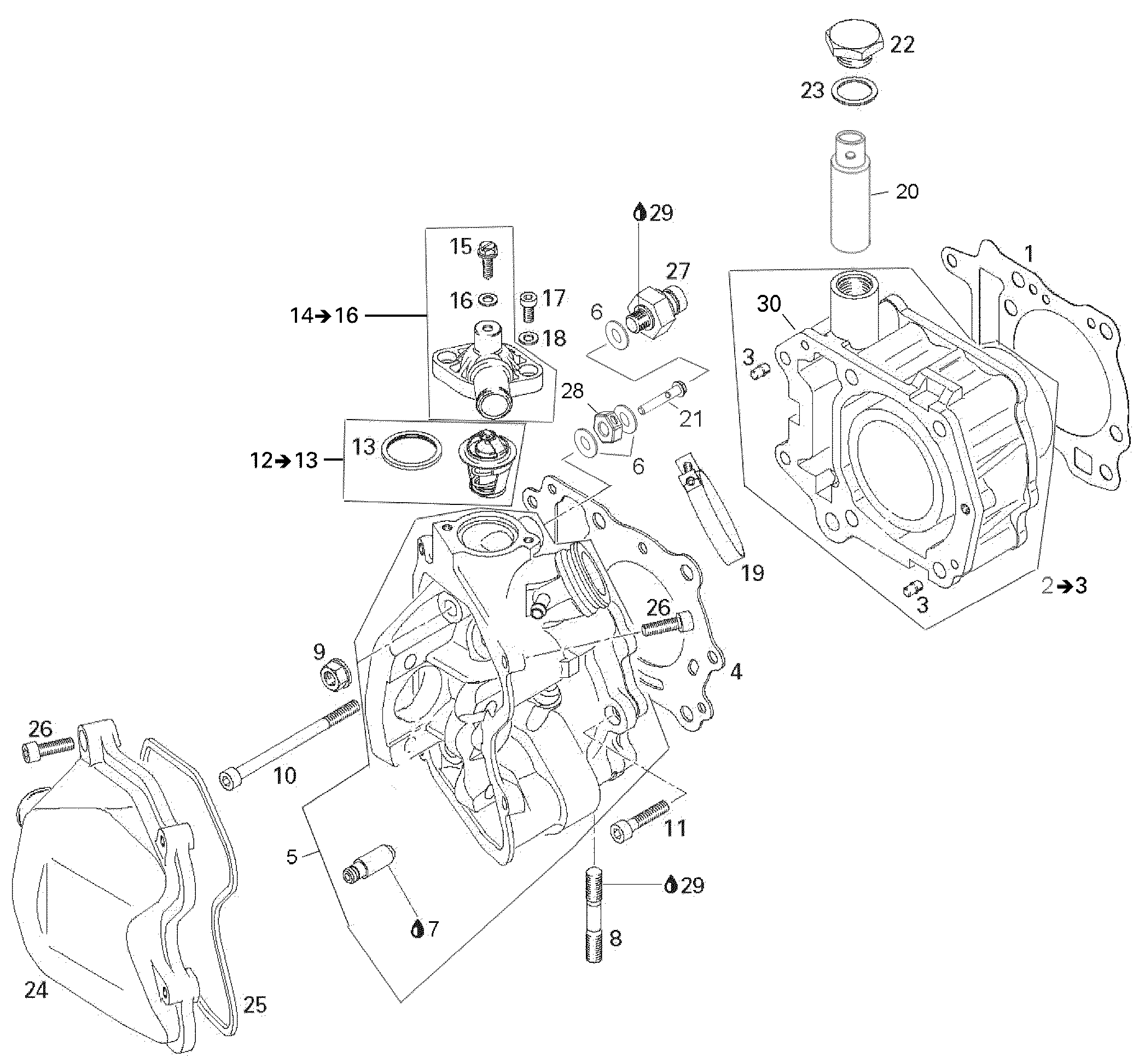

01- Cylinder для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A12191179000 GasketGasket
-
2420613346 Cylinder Ass'y. Includes 2 to 3Cylinder Ass'y. Includes 2 to 3
-
3420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
-
4420650172 GasketGasket
-
5A12200179000 Cylinder Head Ass'yCylinder Head Ass'y
-
6A941031015012 Copper WasherCopper Washer
-
7293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
8420240366 StudStud
-
9233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
10420241481 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
11205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
12A19310179000 Thermostat 65°. Includes 12 to 13Thermostat 65°. Includes 12 to 13
-
13A19312179000 Thermostat GasketThermostat Gasket
-
14A19311179000 Thermostat Cover. Includes 14 to 16Thermostat Cover. Includes 14 to 16
-
15420941950 Screw M5.5 X 13Screw M5.5 X 13
-
16A941020511010 Gasket RingGasket Ring
-
17420241841 Socket Screw M5 x 12Socket Screw M5 x 12
-
18420927571 WasherWasher
-
19420251052 Hose ClampHose Clamp
-
20A40546179000 Chain ExpanderChain Expander
-
21A35502179000 3-Way Bolt3-Way Bolt
-
22420552276 Hex. Screw M18 x 10Hex. Screw M18 x 10
-
23A941041824010 O-RingO-Ring
-
24A12310179000 Valve CoverValve Cover
-
25A12391179000 GasketGasket
-
26205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
27A35500179000 Cooling Temperature SwitchCooling Temperature Switch
-
28A35501179000 3-Way Joint3-Way Joint
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
