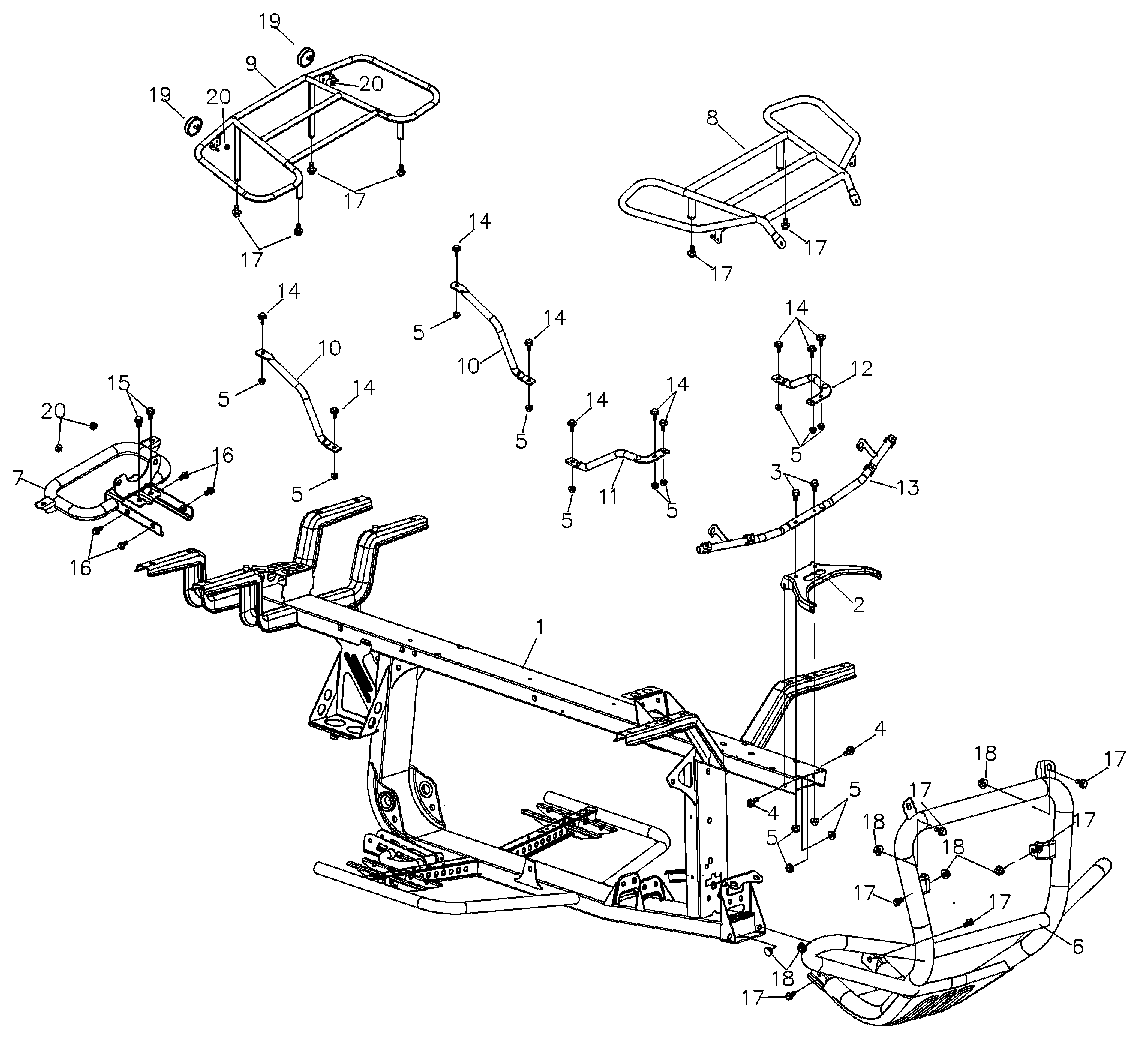

09- Frame And Luggage Racks Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A5010017900B FrameFrame
-
2A50114179000 Front PlateFront Plate
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6A5010417900BBK Front BumperFront Bumper
-
7A5010517900BBK Rear BumperRear Bumper
-
8A6120017900BBK Front RackFront Rack
-
9A8120017900BBK Rear RackRear Rack
-
10A83401179000 Rear Cover PoleRear Cover Pole
-
11A64307179000 RH Front Cover PoleRH Front Cover Pole
-
12A64308179000 LH Front Cover PoleLH Front Cover Pole
-
13A64336179000 Front Fascia PoleFront Fascia Pole
-
14210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
15A9600008016KLZ Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
16A9600008016KLZ Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
17207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
18233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19A33741145000RD ReflectorReflector
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
