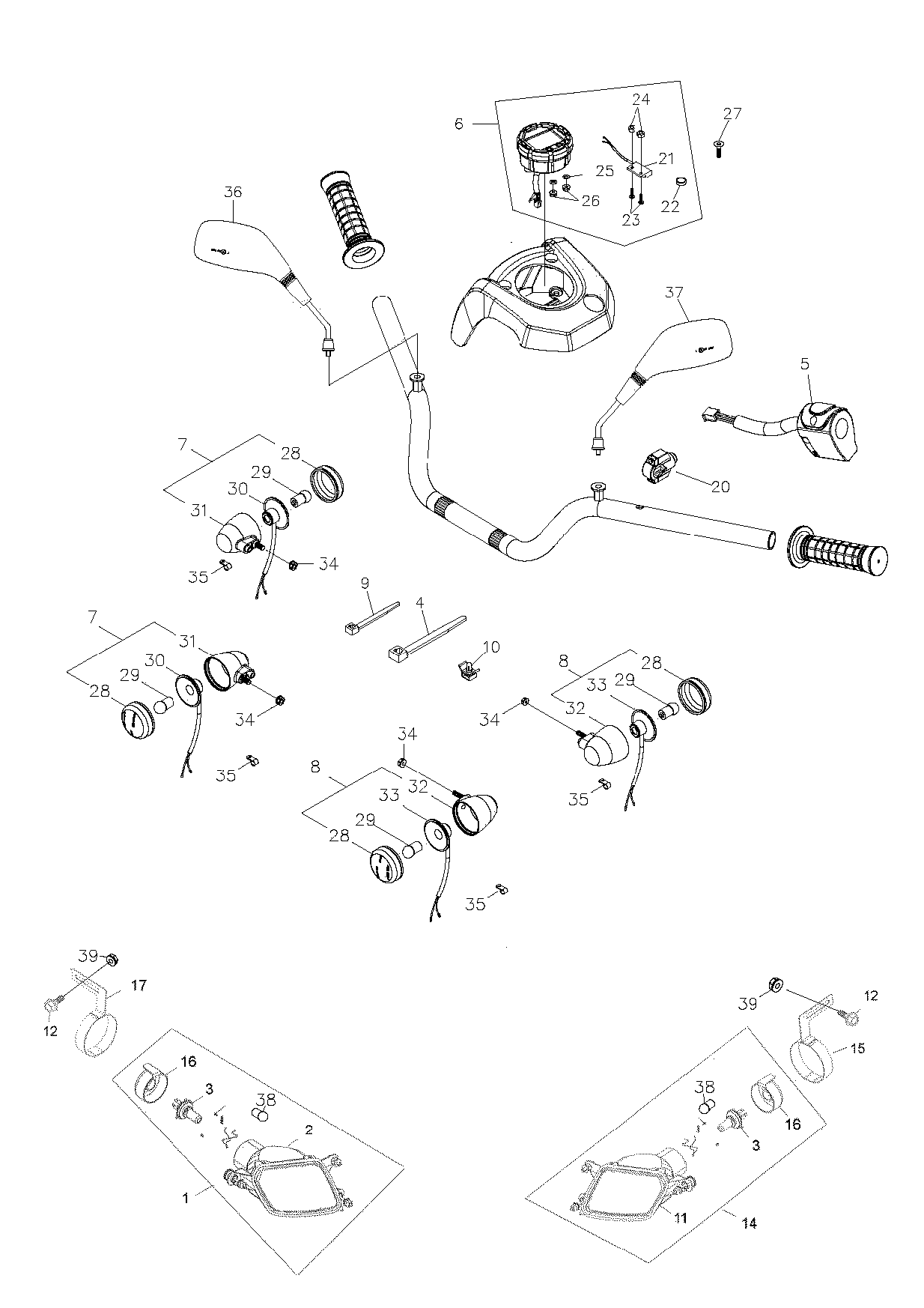

10- Electrical Accessories Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A3310017900A RH Front Light Ass'yRH Front Light Ass'y
-
3A34901179000 BulbBulb
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5A3520017900A LH SwitchLH Switch
-
6A37200179000 SpeedometerSpeedometer
-
7A3340015900A RH Turn Signal LightRH Turn Signal Light
-
8A3345015900A LH Turn Signal LightLH Turn Signal Light
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10293730018 Mount DartMount Dart
-
12A901120601610 Flanged Hex. Screw M6 X 16Flanged Hex. Screw M6 X 16
-
14A3320017900A LH Front Light Ass'yLH Front Light Ass'y
-
15A33154179000 LH Head Light BracketLH Head Light Bracket
-
16A33109179000 Lamp RubberLamp Rubber
-
17A33155179000 RH Head Light BracketRH Head Light Bracket
-
20A35115179000 SwitchSwitch
-
21A37218169000 SensorSensor
-
22A37217169000 MagnetMagnet
-
23A9350003010 Phillips ScrewPhillips Screw
-
24A9400103000 Nut Hex.Nut Hex.
-
25A941010615010 WasherWasher
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27A9370106015G Phillips Screw M6 X 15Phillips Screw M6 X 15
-
29A3490511800A BulbBulb
-
34A9370106012G Phillips Screw M6 X 12Phillips Screw M6 X 12
-
35A90667179000 ClipClip
-
36A88120145000 RH MirrorRH Mirror
-
37A88110145000 LH MirrorLH Mirror
-
38A34909179000 BulbBulb
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
