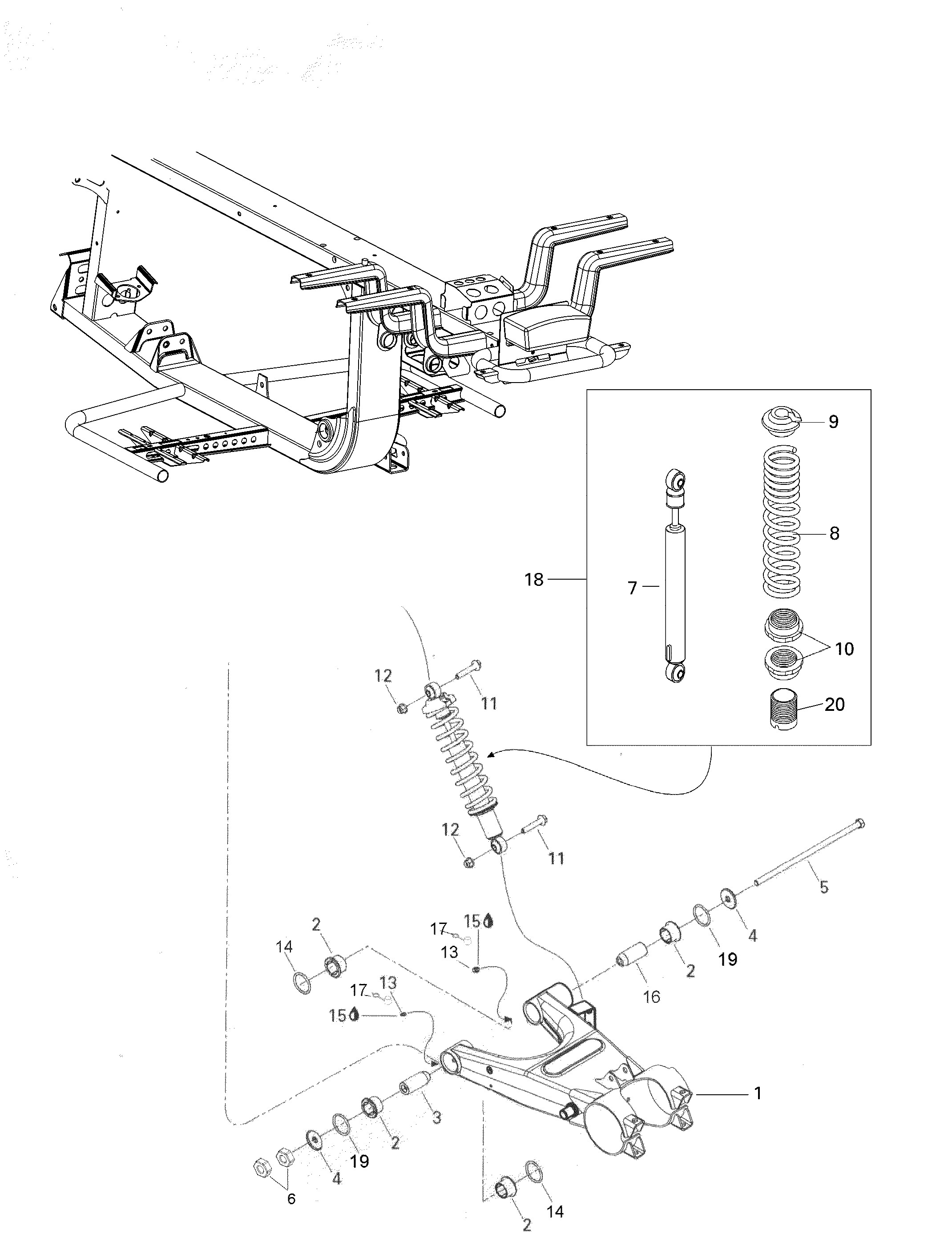

08- Rear Suspension Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A52100179001 Swing ArmSwing Arm
-
2A52103179000 CushionCushion
-
3A52113179000 Inner BushingInner Bushing
-
4A904511245050 Thrust WasherThrust Washer
-
5A920001232017 Hex. Screw M12 X 320Hex. Screw M12 X 320
-
6420242515 Hex. Nut M12Hex. Nut M12
-
7A52404179000 Rear ShockRear Shock
-
8A52405179000 Rear SpringRear Spring
-
9503140600 Spring StopperSpring Stopper
-
10706000197 Spring SeatSpring Seat
-
11A9600010055Z Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
12A9405010000L Hex. Flanged NutHex. Flanged Nut
-
13408200700 Grease FittingGrease Fitting
-
14293300087 O-RingO-Ring
-
15293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
16A52119179000 Inner BushingInner Bushing
-
17A9650206000 Grease Valve CapGrease Valve Cap
-
19293300089 O-RingO-Ring
-
20A51422179000 Spring Seat StopperSpring Seat Stopper
