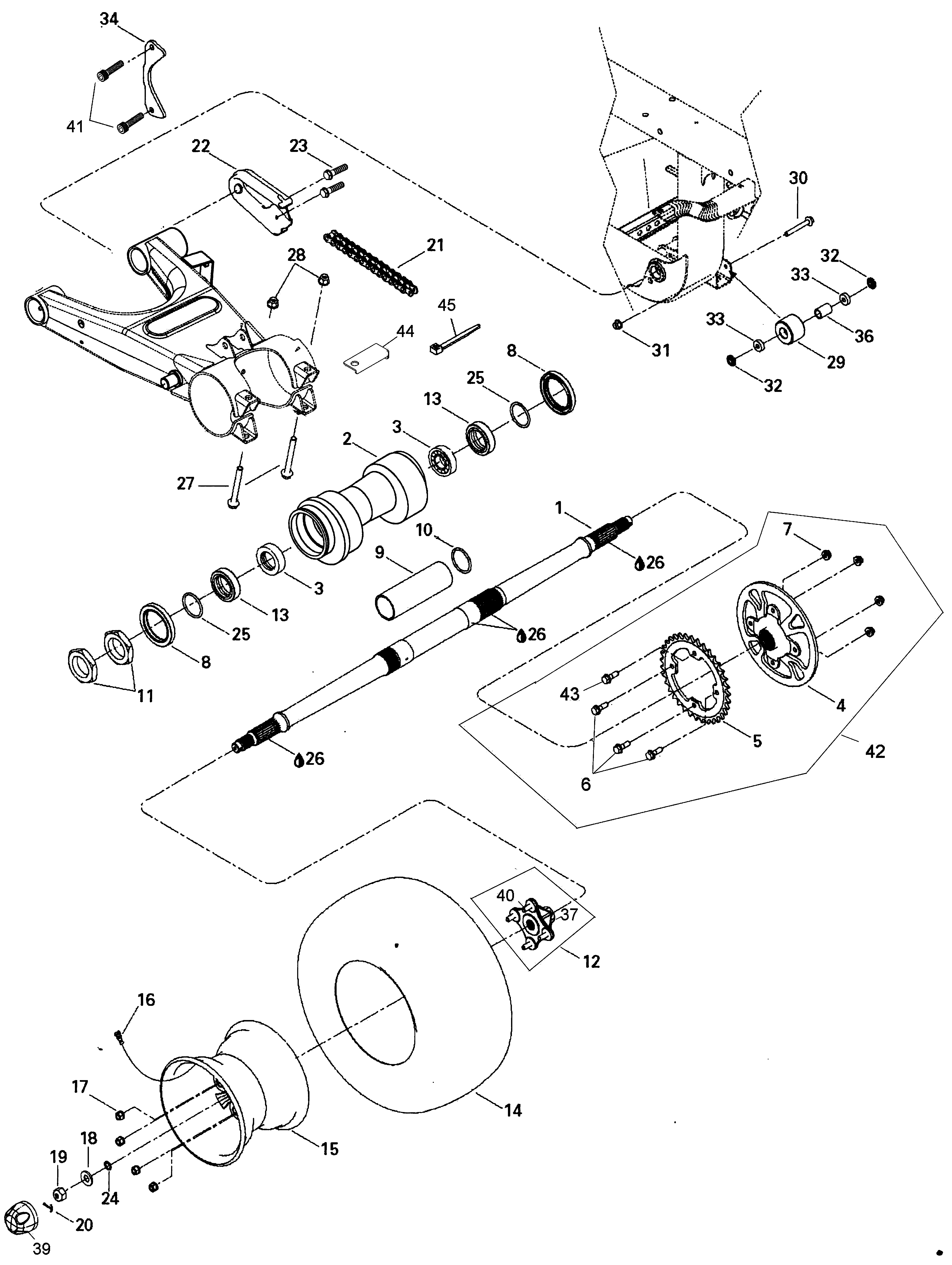

08- Drive System, Rear Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A42301179001 Rear AxleRear Axle
-
2A52200179000 Chain TensionnerChain Tensionner
-
3A961006007LLU Ball BearingBall Bearing
-
4A42610179001 HubHub
-
5705500219 Sprocket, 35 TeethSprocket, 35 Teeth
-
6207582586 Hex. Flanged Screw M8 x 25Hex. Flanged Screw M8 x 25
-
7233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8A96500506810 Oil SealOil Seal
-
9705500291 SpacerSpacer
-
10705500292 Retainer RingRetainer Ring
-
11A9407233000 Nut LockingNut Locking
-
12A42035179000 Wheel Hub Ass'yWheel Hub Ass'y
-
13A52109179000 Wear RingWear Ring
-
14A4281117900A Rear TireRear Tire
-
15705500295 Rear RimRear Rim
-
16705400193 Rim ValveRim Valve
-
17250100042 Wheel NutWheel Nut
-
18705500481 Formed WasherFormed Washer
-
19232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
20250400016 Cotter PinCotter Pin
-
21705500274 ChainChain
-
22A40533179000 Shoe SliderShoe Slider
-
23207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
24293300082 O-RingO-Ring
-
25293300089 O-RingO-Ring
-
26293550030 Grease, Super LubeGrease, Super Lube
-
27A9600010090 Hex. Flanged Screw M10 X 90Hex. Flanged Screw M10 X 90
-
28A9035110000 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
29A40537179000 Roller ChainRoller Chain
-
30207686044 Hex. Flanged Screw M8 X 60Hex. Flanged Screw M8 X 60
-
31233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
32705500398 SpacerSpacer
-
33293350039 Ball BearingBall Bearing
-
34A40516179000 Chain GuideChain Guide
-
36A40539179000 SpacerSpacer
-
39705400012 Wheel CapWheel Cap
-
40250300013 Wheel StudWheel Stud
-
41A9600008016G Hex. Flanged Screw M8 X 16Hex. Flanged Screw M8 X 16
-
43207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
44A37219179000 BracketBracket
-
45A90669179000 Tie RapTie Rap
