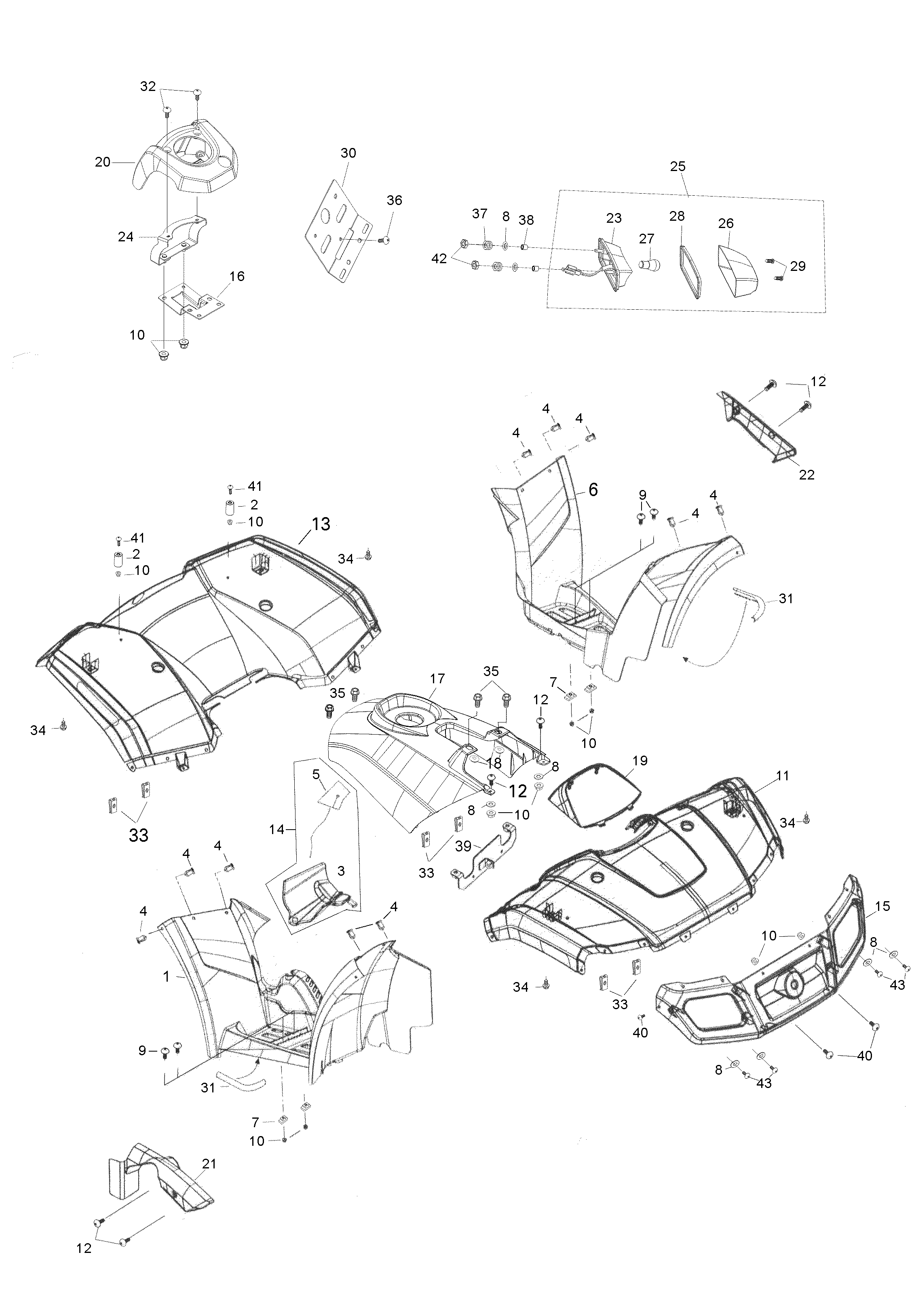

09- Body And Accessories Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A64312179000 RH Footboard, BlackRH Footboard, Black
-
2A83406179000 Rear Cover RubberRear Cover Rubber
-
3705000870 Chain CoverChain Cover
-
4293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5705000563 Reflective SheetReflective Sheet
-
6A6431317900A LH FootboardLH Footboard
-
7705000407 Rubber StopperRubber Stopper
-
8250200029 Washer M6Washer M6
-
9A9380006032k Phillips Screw M6 X 32Phillips Screw M6 X 32
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11A64301179000RD Front Fender, RedFront Fender, Red
-
11A64301179000YL Front Fender, YellowFront Fender, Yellow
-
12A9370106025k Phillips Screw M6 X 25Phillips Screw M6 X 25
-
13A83400179000RD Rear Fender, RedRear Fender, Red
-
13A83400179000YL Rear Fender, YellowRear Fender, Yellow
-
15A64321179000RD Front Fascia, RedFront Fascia, Red
-
15A64321179000YL Front Fascia, YellowFront Fascia, Yellow
-
16A53113179000 Gauge HolderGauge Holder
-
17A64501179001RD Dash Board, RedDash Board, Red
-
17A64501179001YL Dash Board, YellowDash Board, Yellow
-
18705005156 Oblong WasherOblong Washer
-
19A64502179000RD Console Cover, RedConsole Cover, Red
-
19A64502179000YL Console Cover, YellowConsole Cover, Yellow
-
20A6421117900A Handbar CoverHandbar Cover
-
21A83505179000 RH PanelRH Panel
-
22A83506179000 LH PanelLH Panel
-
24A37212223000 Speedometer HolderSpeedometer Holder
-
25A3370017900A Tail Light HousingTail Light Housing
-
26A3370217900A Tail Light LensTail Light Lens
-
27A3490617900A Tail Light BulbTail Light Bulb
-
28A33717179000 GasketGasket
-
29A9390304035 Screw M4 X 35Screw M4 X 35
-
30A50357179000 BracketBracket
-
31293250087 GasketGasket
-
32A9370106012G Phillips Screw M6 X 12Phillips Screw M6 X 12
-
33A903440600B U Plate NutU Plate Nut
-
34210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
35A9600006010 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
36A960000601210G Hex Washer Face Bolt M6 X 12Hex Washer Face Bolt M6 X 12
-
37A33713179000 Tail Light Rubber RingTail Light Rubber Ring
-
38A33718179000 Tail Light Rubber Ring SpacerTail Light Rubber Ring Spacer
-
39A64504179000 Dash Board BracketDash Board Bracket
-
40A9370106018k Phillips Screw M6 X 18Phillips Screw M6 X 18
-
41A9370106060 Phillips Screw M6 X 60Phillips Screw M6 X 60
-
42A9035006000 Nylon Nut M6Nylon Nut M6
-
43A9370106018KL Phillips Screw M6 X 18Phillips Screw M6 X 18
