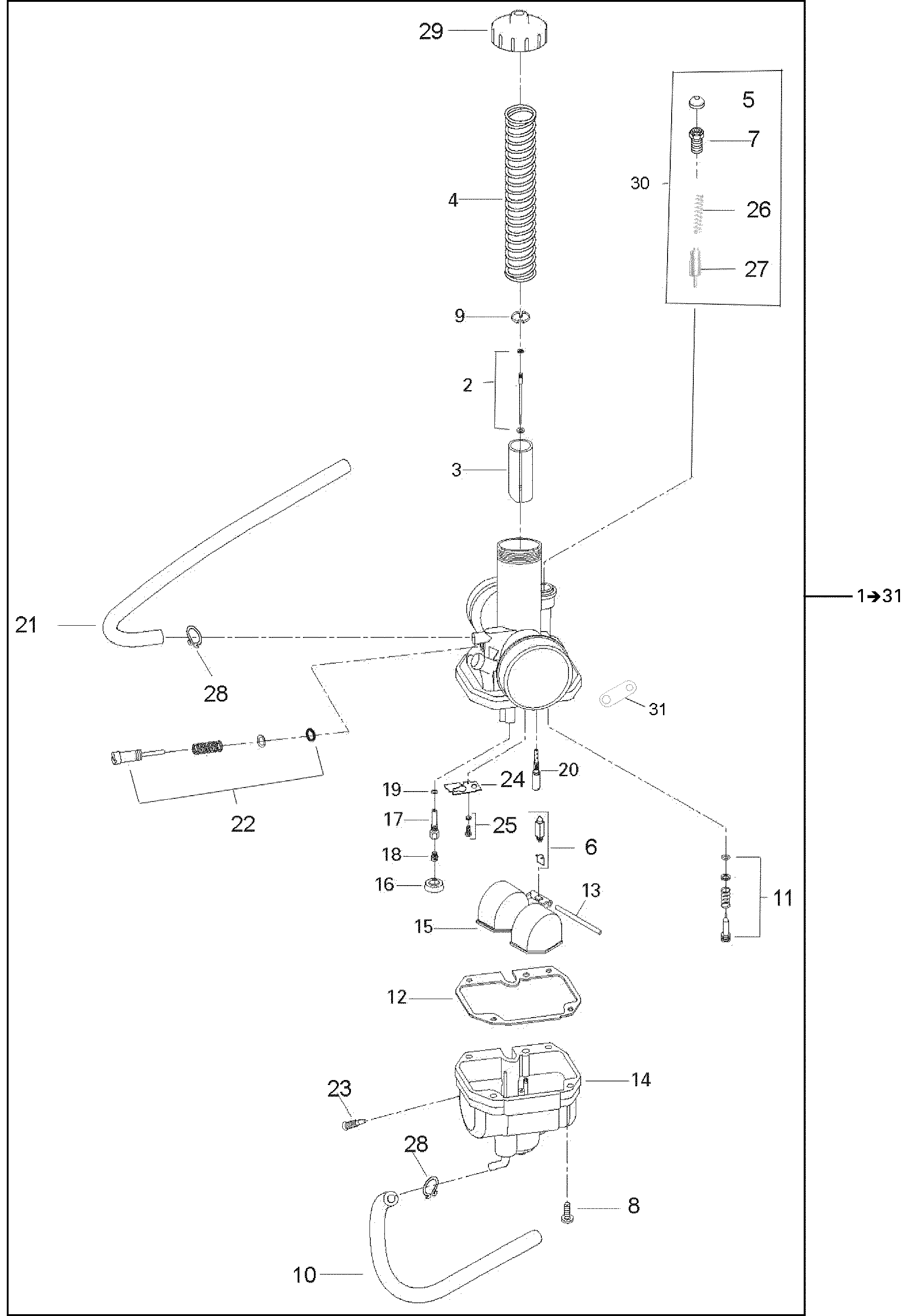

02- Carburetor для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A16100179000 Carburetor. Includes 1 to 31Carburetor. Includes 1 to 31
-
2A16104179000 Ensemble d'AiguilleEnsemble d'Aiguille
-
3707200201 Valve PistonValve Piston
-
4707200202 SpringSpring
-
5404120100 Rubber CapRubber Cap
-
6404046103 Needle Valve 1.8Needle Valve 1.8
-
7707200213 Retainer GuideRetainer Guide
-
8404901400 ScrewScrew
-
9707200204 ClipClip
-
10707200218 HoseHose
-
11A16115179000 Air Adjuster Screw KitAir Adjuster Screw Kit
-
12707200206 GasketGasket
-
13404123400 PinPin
-
15707200207 Float Ass'yFloat Ass'y
-
16707200208 HolderHolder
-
17707200225 Jet HolderJet Holder
-
18707200229 Main Jet 105.0Main Jet 105.0
-
19270500119 O-RingO-Ring
-
20707200227 Pilot Jet 22.5Pilot Jet 22.5
-
21707200212 HoseHose
-
22A16114179000 Idle Screw KitIdle Screw Kit
-
23707200024 ScrewScrew
-
24707200217 PlatePlate
-
25404121300 Screw With WasherScrew With Washer
-
26404103500 SpringSpring
-
27A16133179000 Plunger Ass'yPlunger Ass'y
-
28707200222 ClipClip
-
29707200220 Mixing CapMixing Cap
-
30A17215179000 Choke Screw KitChoke Screw Kit
-
31A16151179000 Hose Fixed PlateHose Fixed Plate
