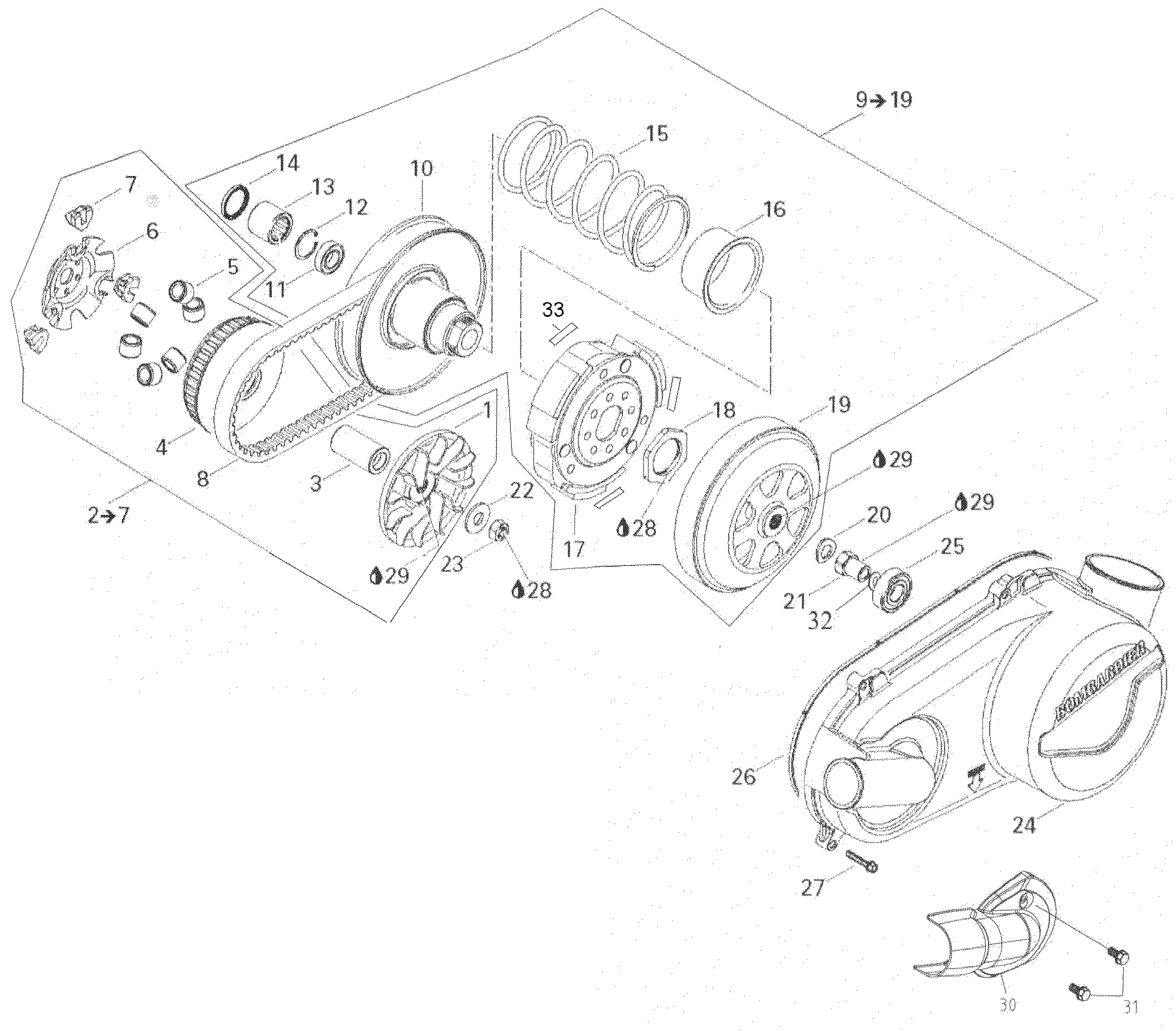

05- Pulley System для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1711280092 Fixed PulleyFixed Pulley
-
2420296785 CVT Drive Unit Ass'y. Includes 2 to 7CVT Drive Unit Ass'y. Includes 2 to 7
-
3420233779 SpacerSpacer
-
5420281310 Roller KitRoller Kit
-
7420281320 Slide Piece, 3 PiecesSlide Piece, 3 Pieces
-
8715900028 V-BeltV-Belt
-
10420684011 CVT Driven UnitCVT Driven Unit
-
11420632420 Ball BearingBall Bearing
-
12420945615 Retaining RingRetaining Ring
-
13420659400 Sprag ClutchSprag Clutch
-
14420631090 Oil SealOil Seal
-
15420239402 SpringSpring
-
16420627172 Spring SeatSpring Seat
-
17420659252 Clutch Ass'yClutch Ass'y
-
18420242040 Hex. Nut M10Hex. Nut M10
-
19420259664 Clutch DrumClutch Drum
-
20420945754 Lock WasherLock Washer
-
21420242230 Nut M12Nut M12
-
22420227180 Thrust WasherThrust Washer
-
23420242515 Hex. Nut M12Hex. Nut M12
-
24A11341179000 Transmission CoverTransmission Cover
-
25A961006203LLU Ball BearingBall Bearing
-
26A11359179000 Rubber GasketRubber Gasket
-
27420241941 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
30A11347179000 CVTCoverCVTCover
-
31A9151006012 Torx Screw M6 X 12Torx Screw M6 X 12
-
32293300058 O-RingO-Ring
-
33A22540201000 Spring PlateSpring Plate
