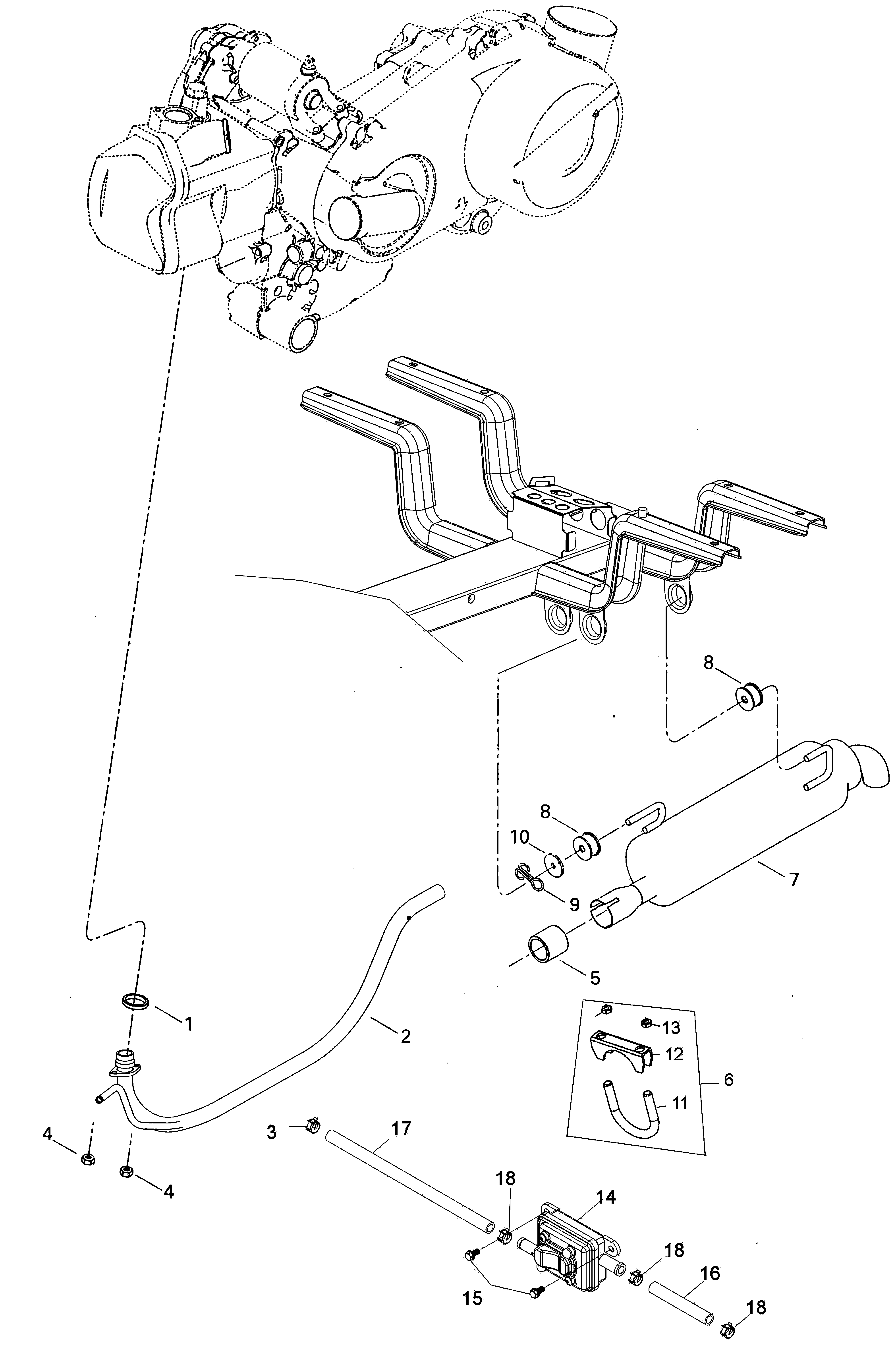

01- Exhaust System Europe для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1707600239 Pipe GasketPipe Gasket
-
2A1831117900A Front Exhaust PipeFront Exhaust Pipe
-
3A9451318000 Spring ClampSpring Clamp
-
4233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5707600175 Pipe GasketPipe Gasket
-
6293650148 U-ClampU-Clamp
-
7A1832117900A MufflerMuffler
-
8707600012 Anti-Vibration RubberAnti-Vibration Rubber
-
9211400017 Cotter PinCotter Pin
-
10250200030 WasherWasher
-
14A17410127000 Reed Valve CompReed Valve Comp
-
15A960000601610G Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16A17411179000 HoseHose
-
17A17412179000 HoseHose
-
18A9451316000 Spring ClampSpring Clamp
