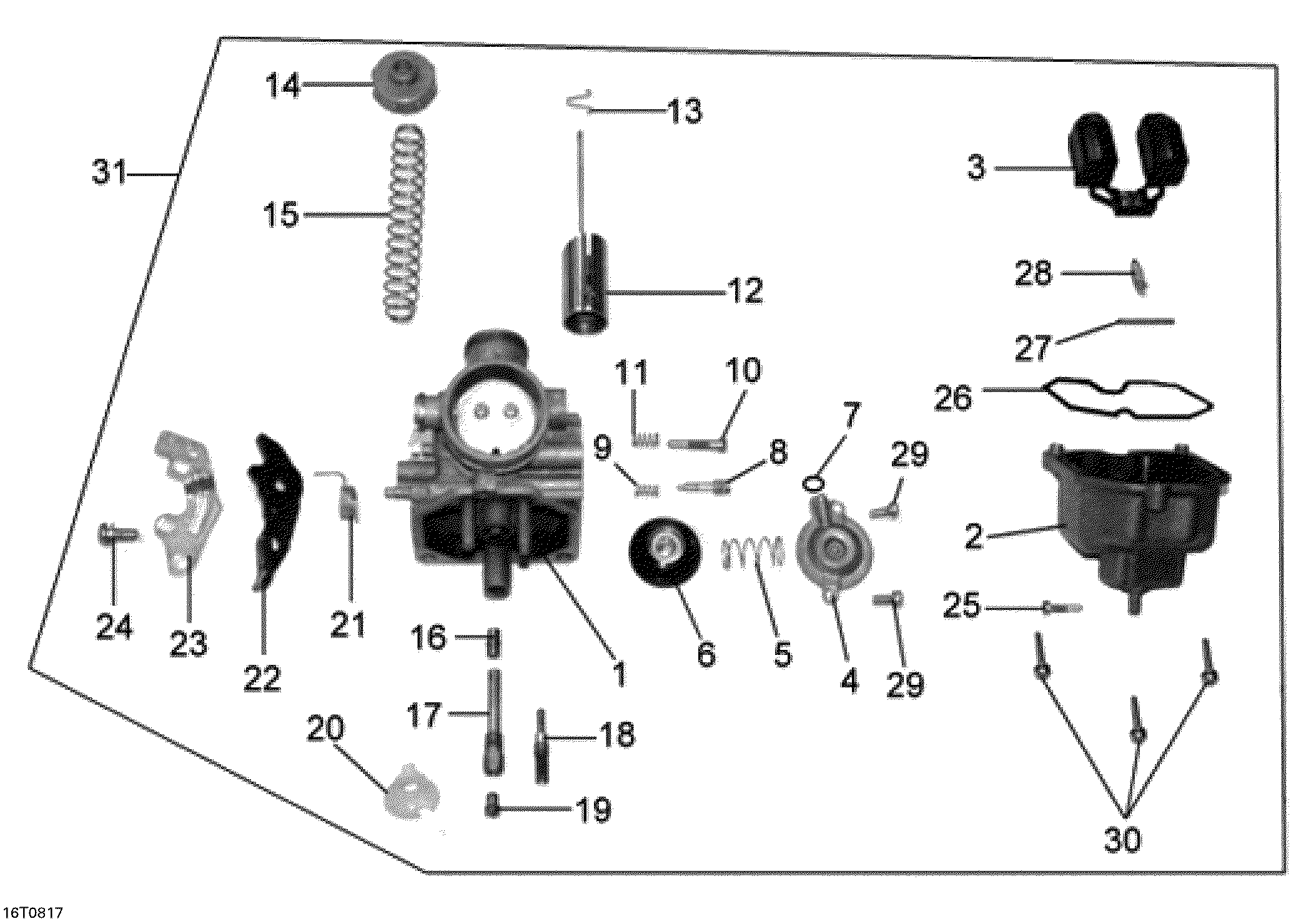

02- Carburetor для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
9S1300KG8H9010 SpringSpring
-
11S1300KG8H0010 SpringSpring
-
16S101043FH9900 Jet NeedleJet Needle
-
21S1305491H9901 SpringSpring
-
22S1113HB7H6710 Choke LeverChoke Lever
-
28S16155ZG8L100 Needle ValveNeedle Valve
-
31S16100RCB000 Carburetor Ass'y. North America, InternationalCarburetor Ass'y. North America, International
-
31S16100RCA000 Carburetor Ass'y. EuropeCarburetor Ass'y. Europe
