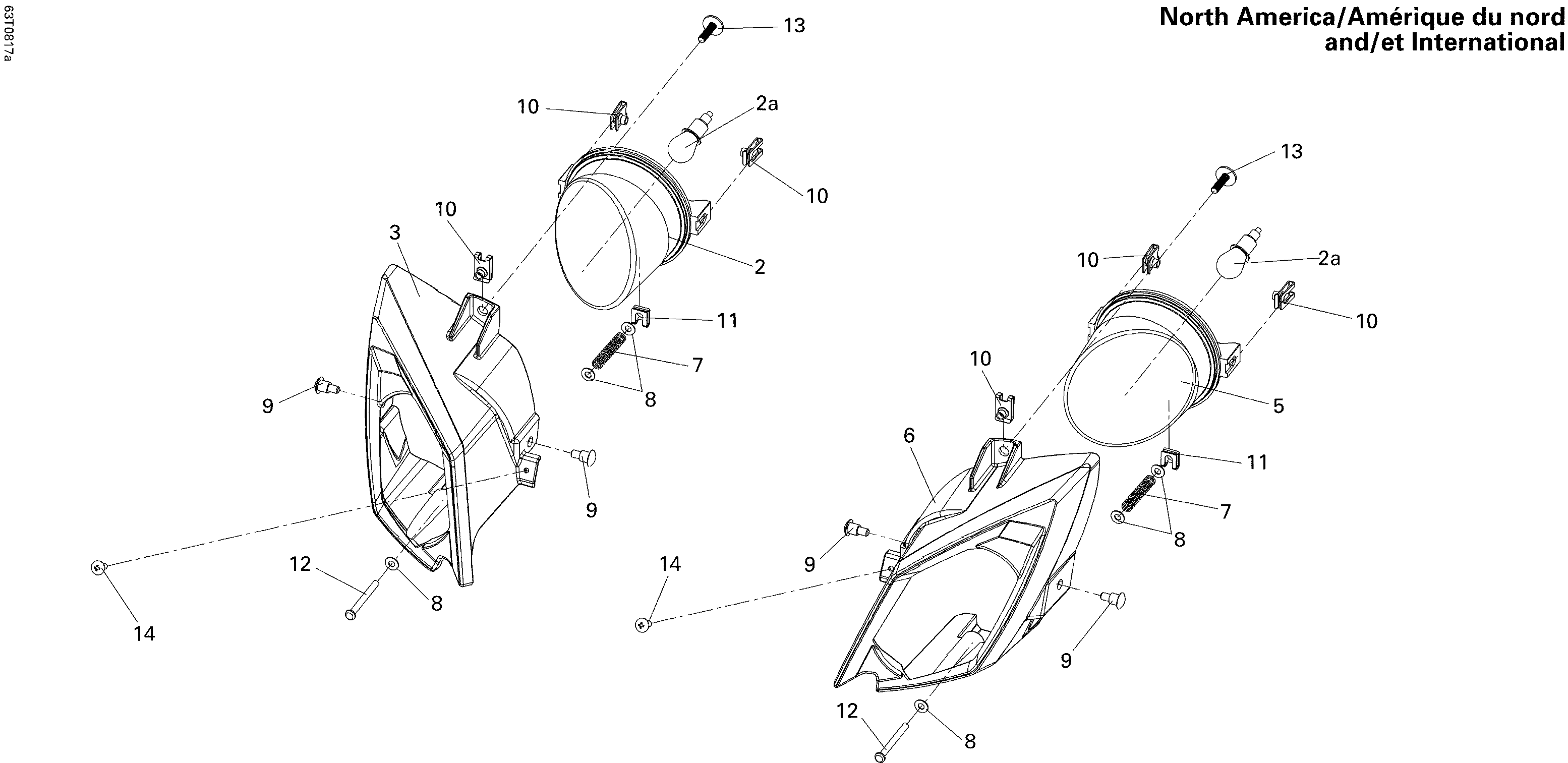

10- Headlights America, International для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
2S33100RCB000 RH Head LightRH Head Light
-
2aS34901RCB000 Bulb 12V/31.5WBulb 12V/31.5W
-
3S63100RCB000 RH Head Light ShroudRH Head Light Shroud
-
5S33150RCB000 LH Head Light Ass'yLH Head Light Ass'y
-
6S63150RCB000 LH Head Light ShroudLH Head Light Shroud
-
7S33101RCA000 SpringSpring
-
8S9410105700 Washer 5 mmWasher 5 mm
-
9S90110RCA000 Special Bolt 6 mmSpecial Bolt 6 mm
-
10S90301RCA000 Clip NutClip Nut
-
11S90303RCA000 Clip NutClip Nut
-
12S93500050550G Pan Screw M5 X 55Pan Screw M5 X 55
-
13S934040602807 Washer Bolt M6 X 25Washer Bolt M6 X 25
-
14S90117H9A000 Washer ScrewWasher Screw
