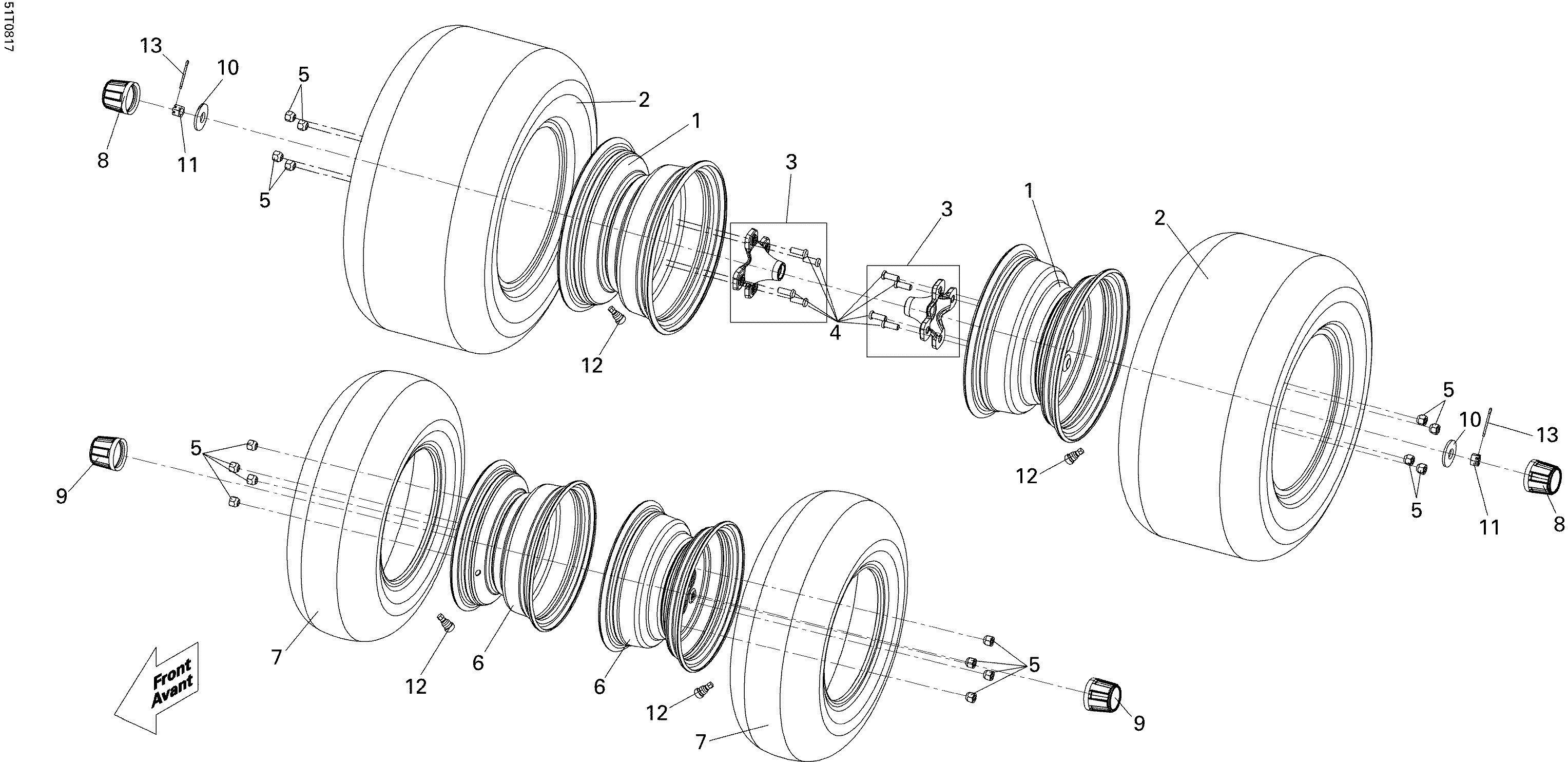

07- Wheels And Tires для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
1S42650RCA000 Rear Rim Ass'y.Rear Rim Ass'y.
-
2S42710RCA000 Rear TireRear Tire
-
3S42705RCA000 Axle Connector. Includes Item 4Axle Connector. Includes Item 4
-
4S90114RCA000 Rear Hub BoltRear Hub Bolt
-
5S90315RCA000 NutNut
-
6S44650RCA000 Front Rim Assy.Front Rim Assy.
-
7S44710RCA000 Front TireFront Tire
-
8S42609RCA000 Rear Wheel CapRear Wheel Cap
-
9S44609RCA000 Front Wheel CapFront Wheel Cap
-
10250200006 Spring Washer 14 mmSpring Washer 14 mm
-
11S90310RCA000 Castle Nut 14 mmCastle Nut 14 mm
-
12705400193 Rim ValveRim Valve
-
13371003400 Cotter PinCotter Pin
