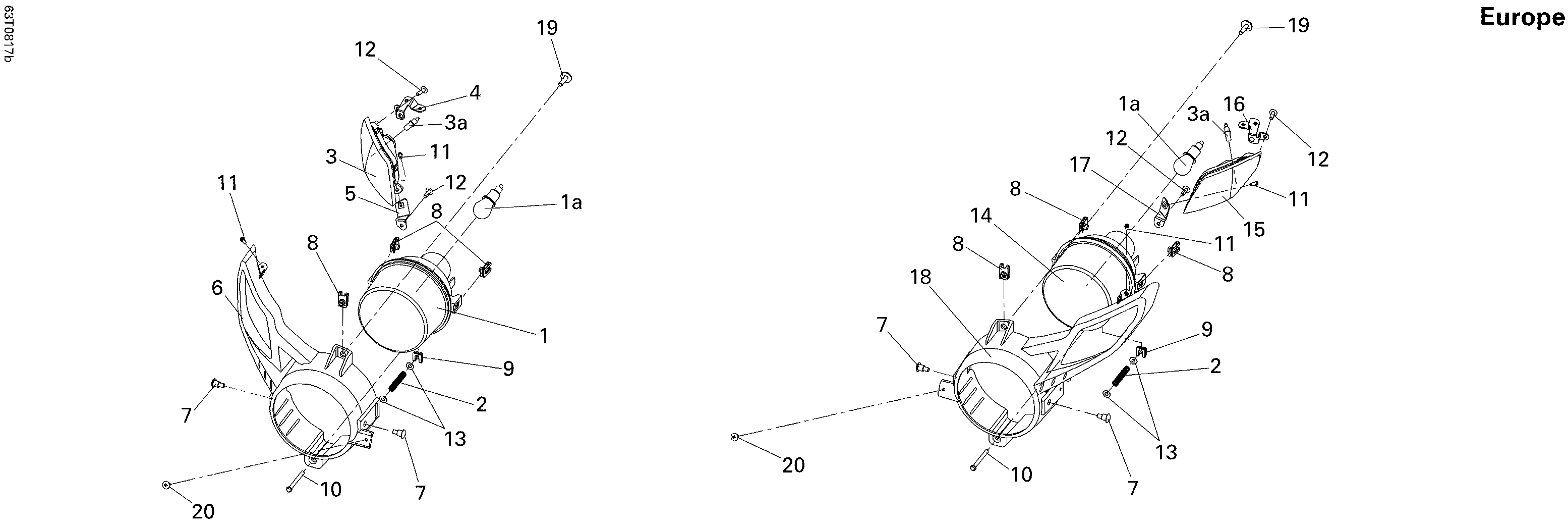

10- Headlights Europe для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
1S33100RCA000 Head Light Ass'yHead Light Ass'y
-
1aS34901RCA000 Headlight Bulb, 12v/35wHeadlight Bulb, 12v/35w
-
2S33101RCA000 SpringSpring
-
3S33400RCA000 RH Front Flasher Ass'yRH Front Flasher Ass'y
-
3aS34905RB1000 Flasher Bulb, 12v/21wFlasher Bulb, 12v/21w
-
4S33401RCA000 RH Front Flasher Support ARH Front Flasher Support A
-
5S33402RCA000 RH Front Flasher Support BRH Front Flasher Support B
-
6S63100RCA000 RH Head Light ShroudRH Head Light Shroud
-
7S90110RCA000 Special Bolt 6 mmSpecial Bolt 6 mm
-
8S90301RCA000 Clip NutClip Nut
-
9S90303RCA000 Clip NutClip Nut
-
10S93500050550G Pan Screw M5 X 55Pan Screw M5 X 55
-
12S938910401007 Washer Screw M4 X 10Washer Screw M4 X 10
-
13S9410105700 Washer 5 mmWasher 5 mm
-
14S33100RCA000 Head Light Ass'yHead Light Ass'y
-
15S33450RCA000 LH Front Flasher Ass'yLH Front Flasher Ass'y
-
16S33451RCA000 LH Front Flasher Support ALH Front Flasher Support A
-
17S33452RCA000 LH Front Flasher Support BLH Front Flasher Support B
-
18S63150RCA000 LH Head Light ShroudLH Head Light Shroud
-
19S934040602807 Washer Bolt M6 X 25Washer Bolt M6 X 25
-
20S90117H9A000 Washer ScrewWasher Screw
