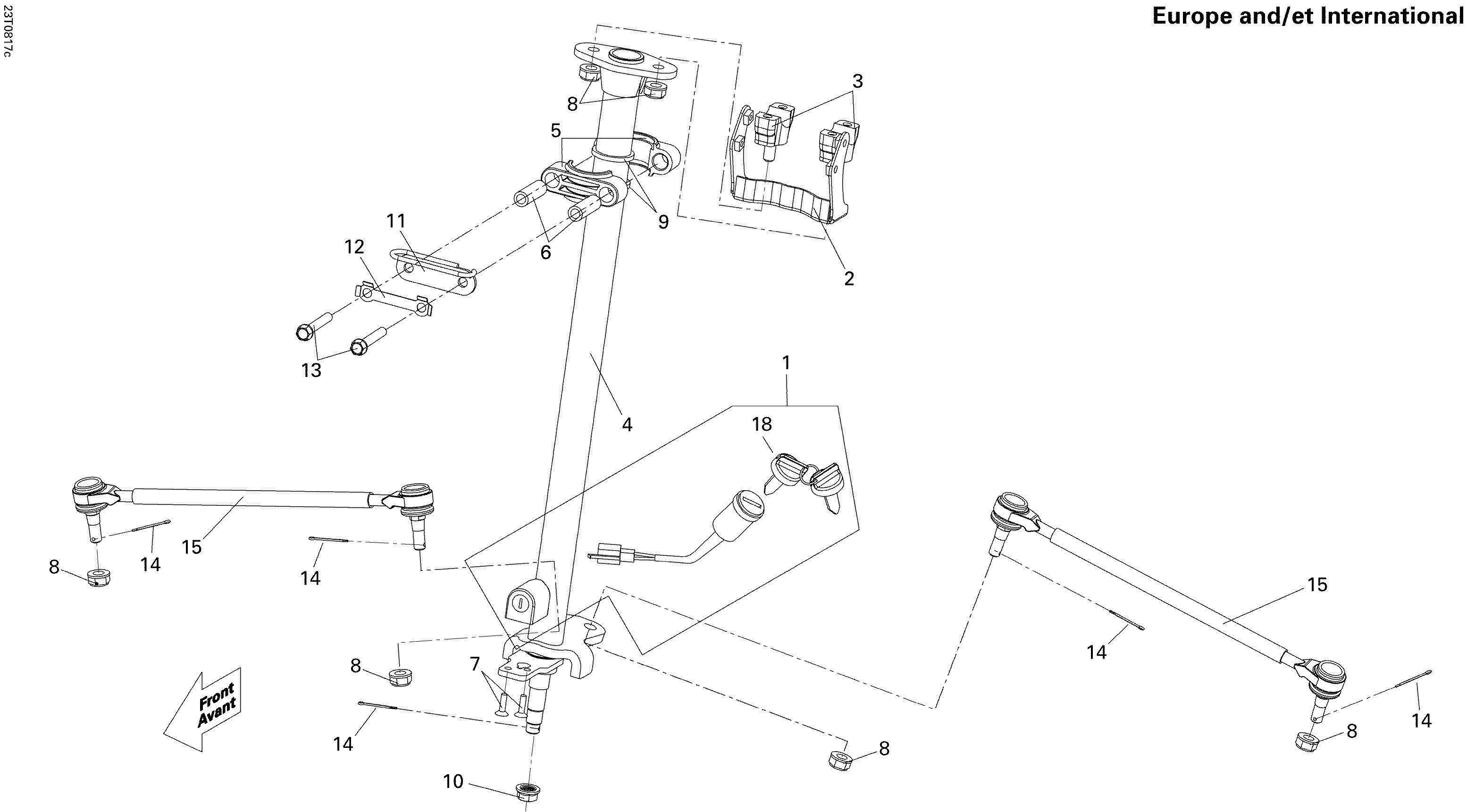

07- Steering Linkage Europe, International для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
1S35010RCB000 Ignition Switch And Key Set. InternationalIgnition Switch And Key Set. International
-
1S35010RCA000 Ignition Switch And Key Set. EuropeIgnition Switch And Key Set. Europe
-
2S53106RCB000 Speedometer Bracket. InternationalSpeedometer Bracket. International
-
2S53106RCA000 Speedometer Bracket. EuropeSpeedometer Bracket. Europe
-
3S53121RCA010 Handle Bar Bottle ClampHandle Bar Bottle Clamp
-
4S53200RCA000 Steering ColumnSteering Column
-
5S53202RCA000 Half BushingHalf Bushing
-
6S53203RCA000 BushingBushing
-
7S90164X01000 Flat Lock Screw M6 X 12Flat Lock Screw M6 X 12
-
8S90304M9Q800 Hex. Flanged Nut 10 mmHex. Flanged Nut 10 mm
-
9S91208RCA000 Oil SealOil Seal
-
10S90305GW0901 Self Lock Nut 14 mmSelf Lock Nut 14 mm
-
11S53204RCA000 Steering Column Holder PlateSteering Column Holder Plate
-
12S53206RCA000 Lock TabLock Tab
-
13S958010806007 Flanged Bolt M8 X 60Flanged Bolt M8 X 60
-
14S9420125250 Split PinSplit Pin
-
15S50258RCA000 Tie-rod Ass'yTie-rod Ass'y
-
18S35111RCA000 KeyKey
