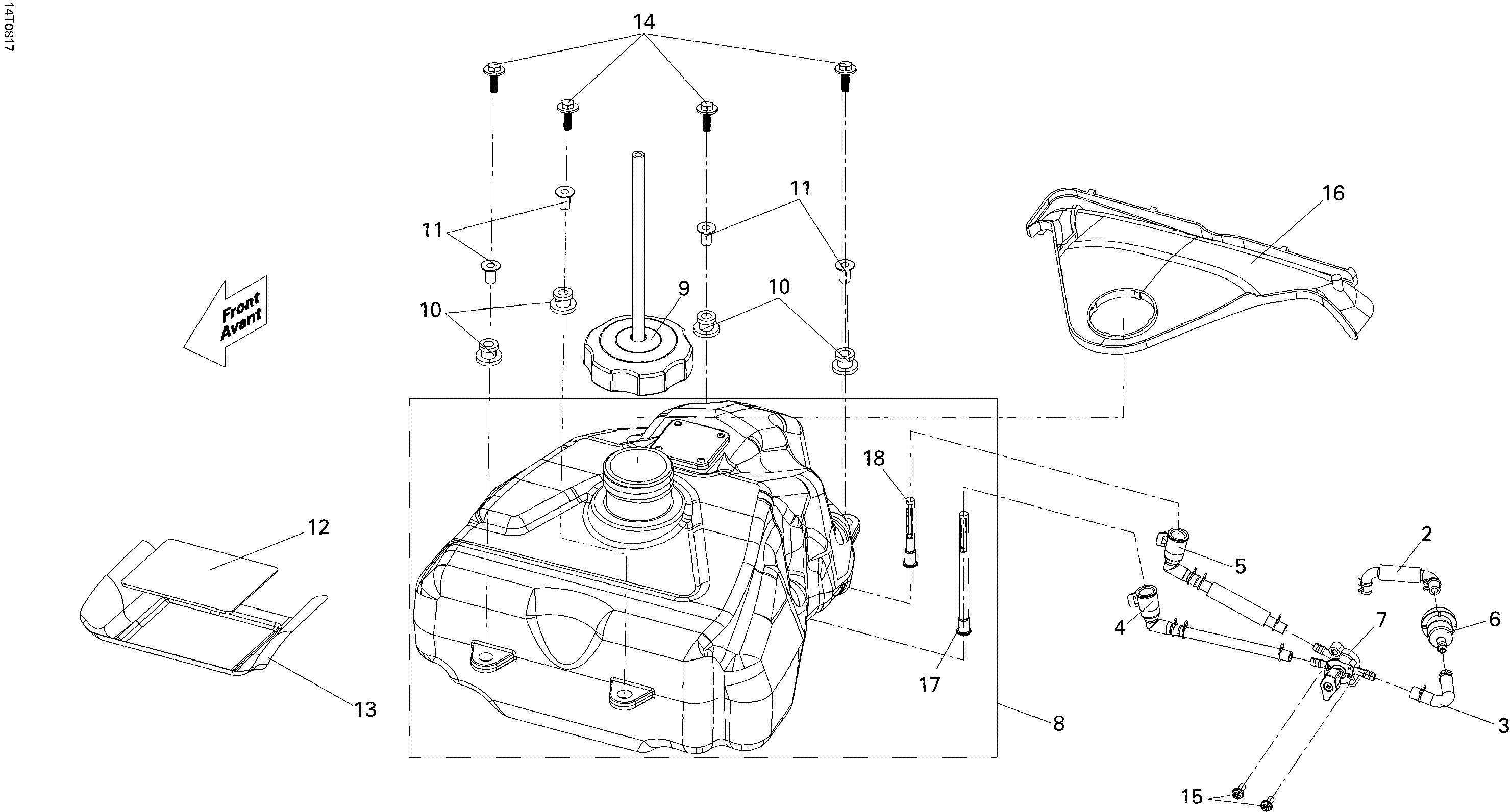

02- Fuel System для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
2S16702RCA000 HoseHose
-
3S16704RCA000 HoseHose
-
4S16708RCA000 Fuel TubeFuel Tube
-
5S16708RCA000 Fuel TubeFuel Tube
-
6S16910GN5911A Fuel StrainerFuel Strainer
-
7S16950RCA010 Fuel ValveFuel Valve
-
8S17500RCA000 Fuel TankFuel Tank
-
9S17620RCA000 Fuel Tank CapFuel Tank Cap
-
10S80103RCA000 Fuel Tank Rubber BushingFuel Tank Rubber Bushing
-
11S80104RCA000 Fuel Tank CollarFuel Tank Collar
-
12S80101RCA000 Heat Shield AHeat Shield A
-
13S80102RCA000 Heat Shield BHeat Shield B
-
14S934040603007 Washer Bolt M6 X 30Washer Bolt M6 X 30
-
15S938910501807 Washer Bolt M5 X 18Washer Bolt M5 X 18
-
16S17505RB1000 Fuel Tank CoverFuel Tank Cover
-
17S17501RCA000 Fuel Strainer AFuel Strainer A
-
18S17502RCA000 Fuel Strainer BFuel Strainer B
