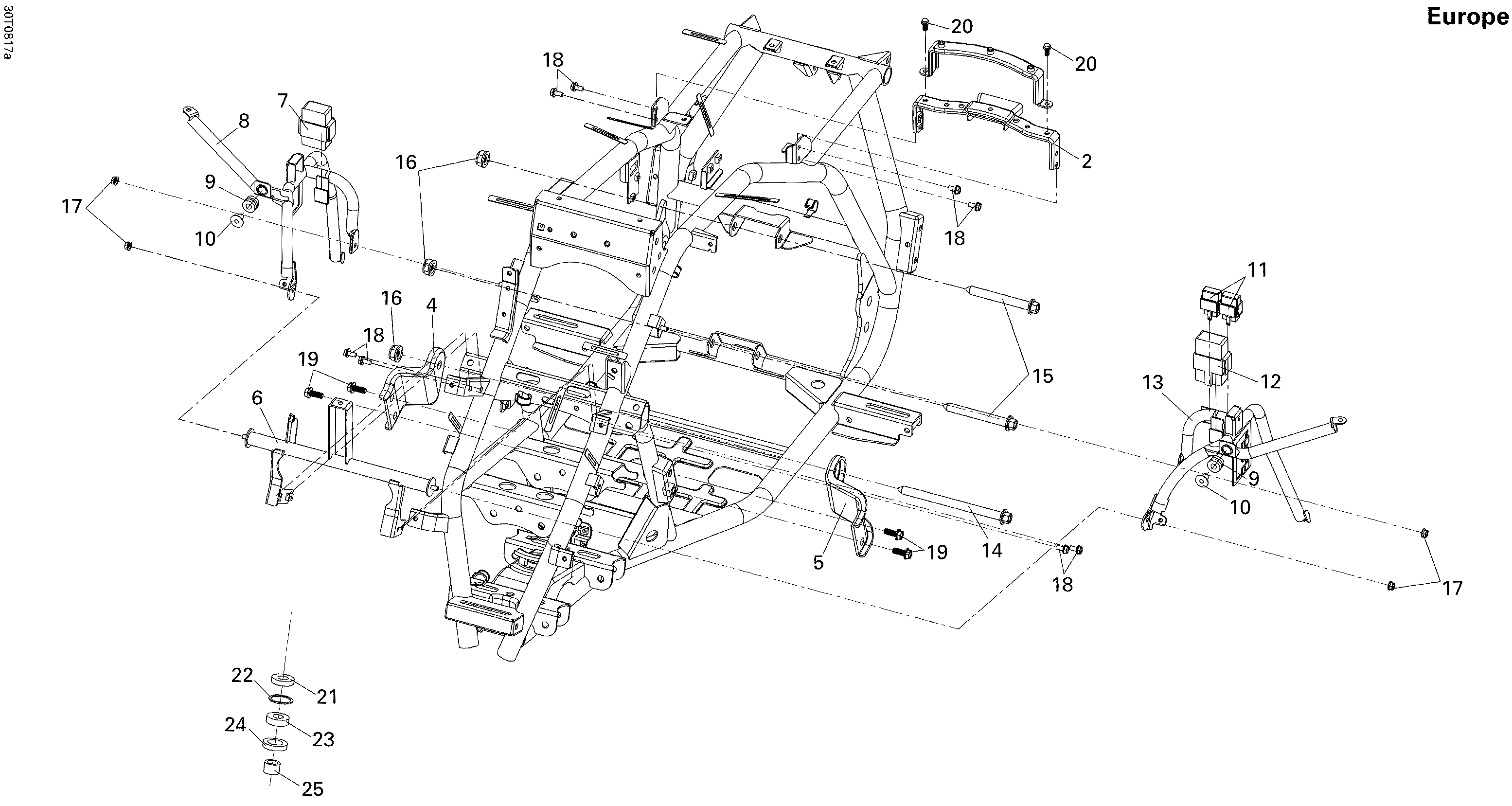

09- Frame Europe для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
2S50171RCA000 Tank Cover BracketTank Cover Bracket
-
4S50350RCA000 RH Engine BracketRH Engine Bracket
-
5S50360RCA000 LH Engine BracketLH Engine Bracket
-
6S50510RCA000 Front Fender SupportFront Fender Support
-
7S3576ARCA000 Shift Gear Control UnitShift Gear Control Unit
-
8S50520RCA000 RH Front Fender SupportRH Front Fender Support
-
9S80103X01000 Rubber WasherRubber Washer
-
10S80104X01000 Fender CollarFender Collar
-
11S3850AHLA000 Electrical Relay Ass'yElectrical Relay Ass'y
-
12S3872ARFA000 Hazard Control Unit Ass'yHazard Control Unit Ass'y
-
13S50522RCA000 LH Front Fender SupportLH Front Fender Support
-
14S90101RCA000 Bolt M12 X 162Bolt M12 X 162
-
15S90102RCA000 Bolt M12 X 98Bolt M12 X 98
-
16S90306M9Q000 Self Lock Nut M12Self Lock Nut M12
-
17S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
18S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
19S958011001607 Flanged Bolt M10 X 16Flanged Bolt M10 X 16
-
20S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
21S91210RCA000 Oil SealOil Seal
-
22S9452032000 CirclipCirclip
-
23S961306002310 Ball BearingBall Bearing
-
24S91211RCA000 Oil SealOil Seal
-
25S53207RCA000 Steering Column CollarSteering Column Collar
