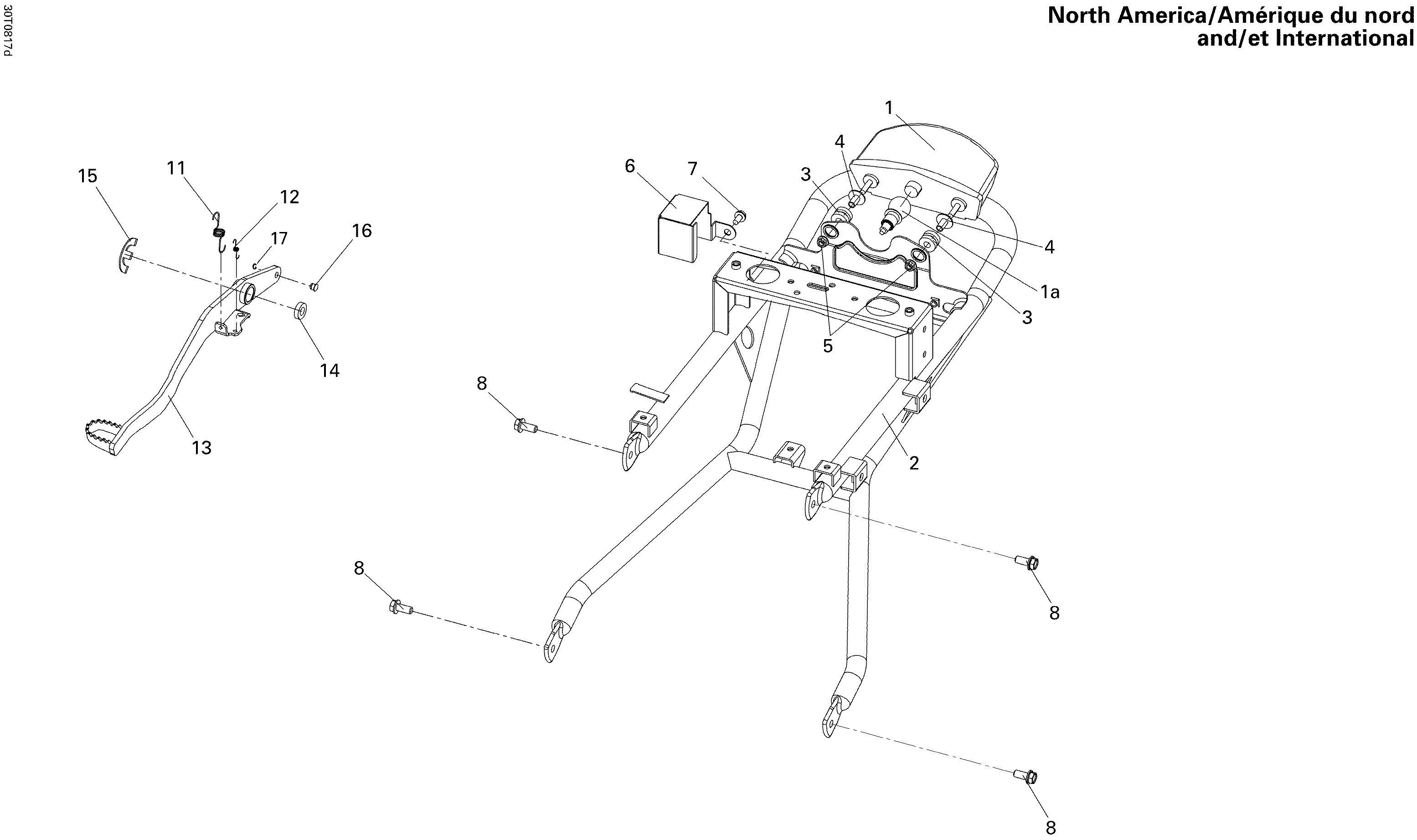

09- Rear Frame North America, International для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
1S33700RCB000 Tail Light Ass'yTail Light Ass'y
-
1aS34906RCA000 Tail Light BulbTail Light Bulb
-
2S50180RCB000 Rear FrameRear Frame
-
3S80103X01000 Rubber WasherRubber Washer
-
4S80104X01000 Fender CollarFender Collar
-
5S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
6S50175RCA000 CVT Tube StayCVT Tube Stay
-
7S958010801207 Flanged Bolt M8 X 12Flanged Bolt M8 X 12
-
8S958010801807 Flanged Bolt M8 X 18Flanged Bolt M8 X 18
-
11S50706RCA000 Brake Pedal SpringBrake Pedal Spring
-
12S50707RCA000 Brake Switch SpringBrake Switch Spring
-
13S50708RCA000 Brake Pedal Ass'yBrake Pedal Ass'y
-
14S50709RCA000 Brake Plate WasherBrake Plate Washer
-
15S9454005017 E-RingE-Ring
-
16S91510RCA000 PinPin
-
17293370002 C-RingC-Ring
