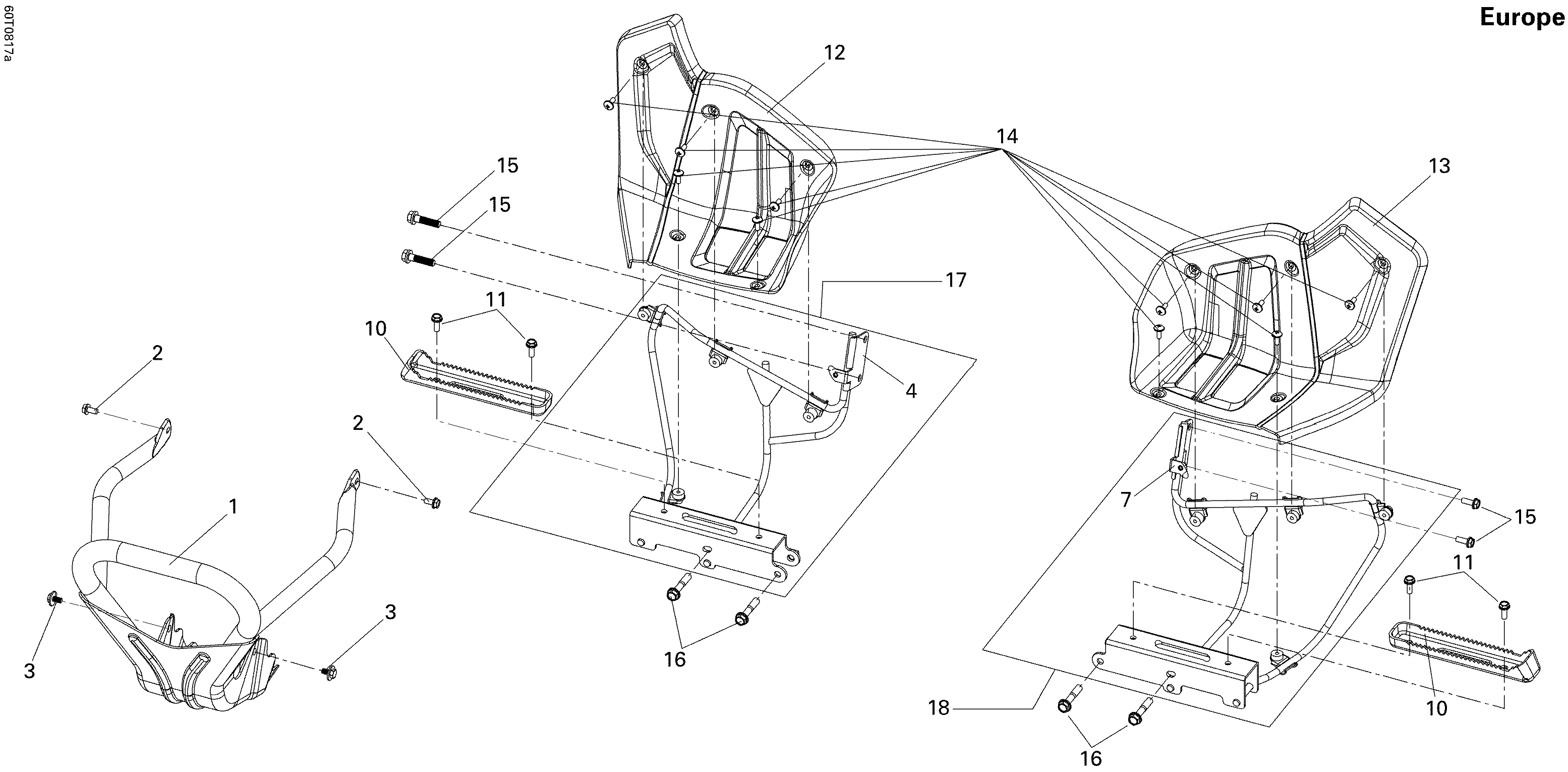

09- Front Bumper And Footrests Europe для BRP DS 250 CVT - 2008
-
№АртикулНазвание
-
1S50400RCA000 Front BumperFront Bumper
-
2S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
-
3S958010801407 Flanged Bolt M8 X 14Flanged Bolt M8 X 14
-
10S50620RCA000 Foot PegFoot Peg
-
11S958010601607 Flanged Bolt M6 X 16Flanged Bolt M6 X 16
-
12S64310RCA000 RH FootrestRH Footrest
-
13S64410RCA000 LH FootrestLH Footrest
-
14S90118T15000 Washer ScrewWasher Screw
-
15S958010801407 Flanged Bolt M8 X 14Flanged Bolt M8 X 14
-
16S958010805007 Flanged Bolt M8 X 50Flanged Bolt M8 X 50
-
17S5055ARCA000 LH Footrest BarLH Footrest Bar
-
18S5054ARCA000 RH Footrest BarRH Footrest Bar
