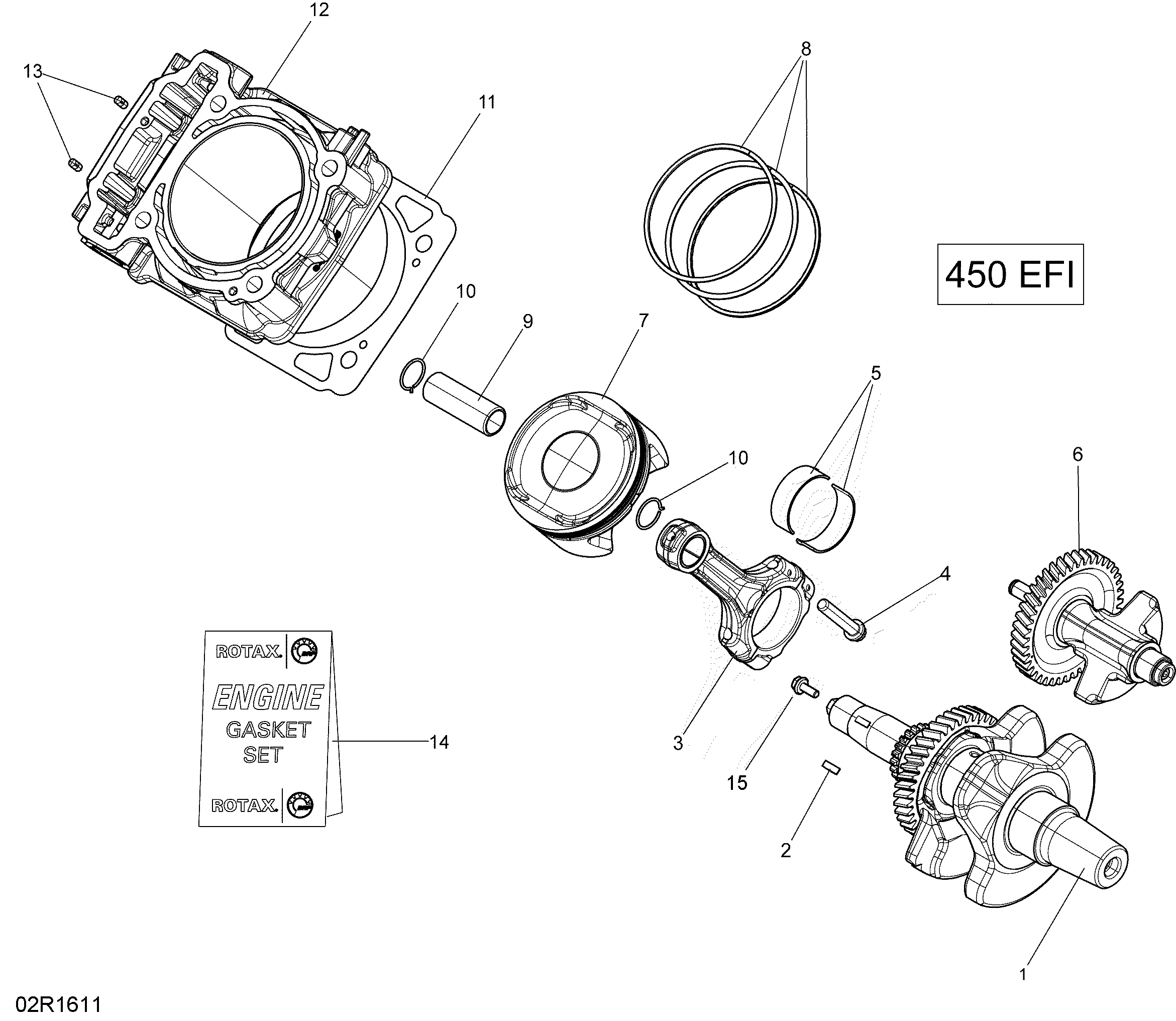

01- Crankshaft and Pistons - 450 EFI для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1420295030 Crankshaft Ass'yCrankshaft Ass'y
-
2420246571 Woodruff KeyWoodruff Key
-
3420217429 Connecting Rod Ass'y. Includes 4 to 5Connecting Rod Ass'y. Includes 4 to 5
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420637455 Balance ShaftBalance Shaft
-
7420686310 Piston Ass'y, 93.958 mmPiston Ass'y, 93.958 mm
-
8420686314 Piston Ring SetPiston Ring Set
-
9420216270 Piston PinPiston Pin
-
10420845107 Piston CirclipPiston Circlip
-
11420450330 GasketGasket
-
12420413265 Cylinder With SleeveCylinder With Sleeve
-
13420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
14420685125 Gasket Set, EngineGasket Set, Engine
-
15295501043 Screw KitScrew Kit
