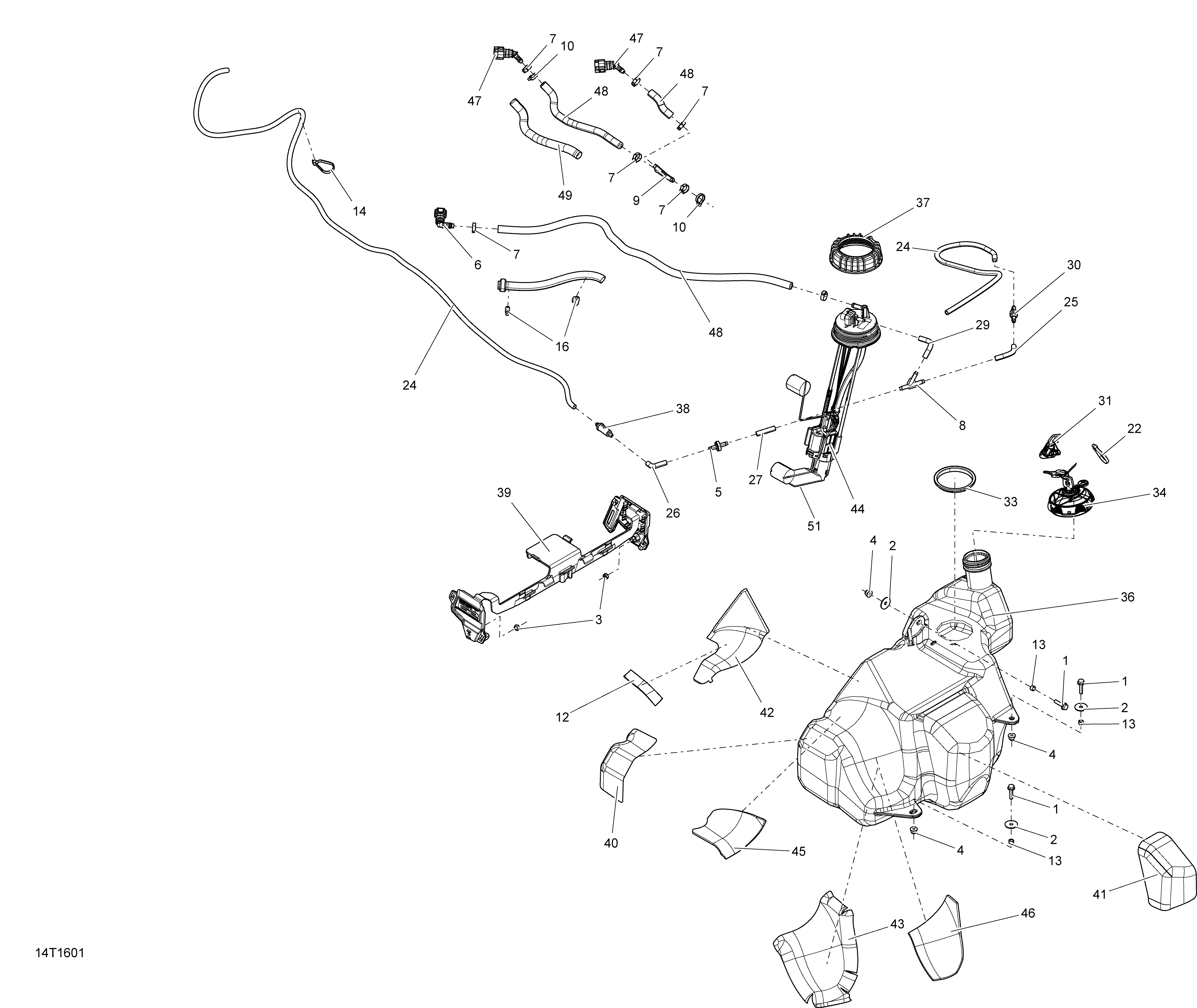

02- Fuel System - All Models для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060251 WasherWasher
-
3232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5275500398 Check ValveCheck Valve
-
6275500700 Quick Attach 90°. Engine 450Quick Attach 90°. Engine 450
-
7293650047 Crimp ClampCrimp Clamp
-
8293710059 Y-FittingY-Fitting
-
9293710136 Y-Fitting, 5/16''. Except Engine 450Y-Fitting, 5/16''. Except Engine 450
-
10293750002 Tie-Rap 142 mm. Except Engine 450Tie-Rap 142 mm. Except Engine 450
-
12293830172 Rubber PadRubber Pad
-
13293900104 BushingBushing
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24415080200 Hose, PolyurethaneHose, Polyurethane
-
30513033469 Check ValveCheck Valve
-
31707001750 Lock Device Kit. Europe ModelLock Device Kit. Europe Model
-
33709000208 SealSeal
-
34513033025 Fuel Tank Cap. Except Europe Model. Incl 34aFuel Tank Cap. Except Europe Model. Incl 34a
-
34707001750 Lock Device Kit. Europe ModelLock Device Kit. Europe Model
-
34a707000666 LockLock
-
36709000310 Fuel Tank Ass'yFuel Tank Ass'y
-
37709000328 Fuel Pump Module NutFuel Pump Module Nut
-
38709000330 FilterFilter
-
39709000359 Hose Support Ass'yHose Support Ass'y
-
40709000381 Heat Reflective SheetHeat Reflective Sheet
-
41709000382 Heat Reflective SheetHeat Reflective Sheet
-
42709000387 Heat Reflective SheetHeat Reflective Sheet
-
43709000388 Heat Reflective SheetHeat Reflective Sheet
-
44709000461 Fuel PumpFuel Pump
-
47709000627 Quick Fitting 45° Ass'y. Except Engine 450Quick Fitting 45° Ass'y. Except Engine 450
-
48709000516 Fuel LineFuel Line
-
50219702535 Tube 25Mm. Engine 450Tube 25Mm. Engine 450
-
51715900322 Prefilter Fuel Pump KitPrefilter Fuel Pump Kit
