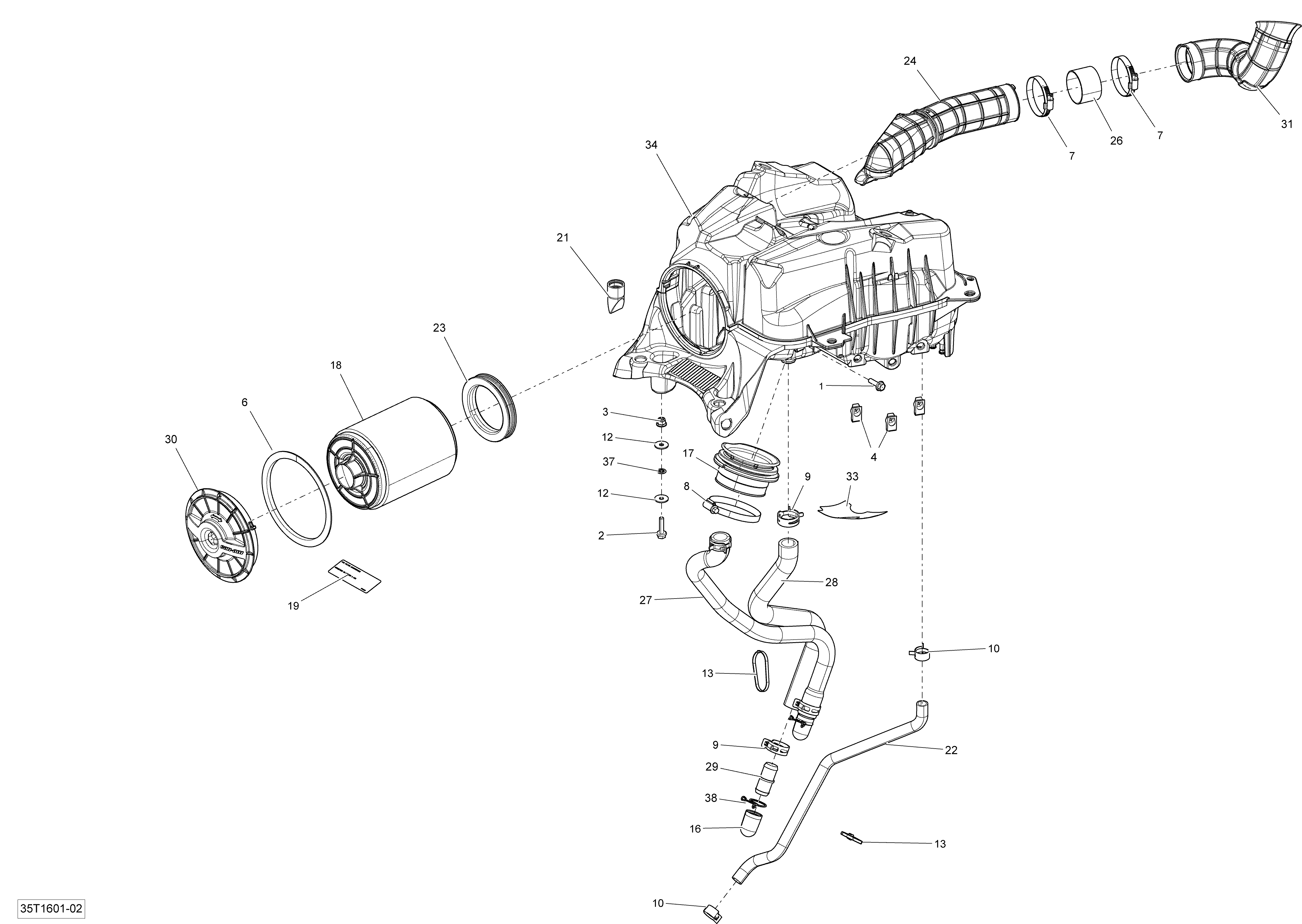

02- Air Intake - XMR для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6293300175 GasketGasket
-
7293650077 Norma ClampNorma Clamp
-
8293650091 Norma ClampNorma Clamp
-
9293650109 Norma Spring ClampNorma Spring Clamp
-
10293650110 Norma ClampNorma Clamp
-
12250200082 Flat WasherFlat Washer
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16707800080 Drain TubeDrain Tube
-
17707800333 Intake AdaptorIntake Adaptor
-
18707800371 Air FilterAir Filter
-
19707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
21707800404 Drain TubeDrain Tube
-
22707800453 Vent HoseVent Hose
-
23707800470 Air Filter AdaptorAir Filter Adaptor
-
24707800501 Air Intake HoseAir Intake Hose
-
26707800504 RingRing
-
27707800510 Formed HoseFormed Hose
-
28707800511 Formed HoseFormed Hose
-
29707800512 Straight FittingStraight Fitting
-
30707800518 Intake Silencer CapIntake Silencer Cap
-
31707800528 Air Intake FrontAir Intake Front
-
33707800597 Heat ShieldHeat Shield
-
34707800599 Welded Air BoxWelded Air Box
-
37732610072 Push NutPush Nut
-
38707800278 Retainer ClipRetainer Clip
