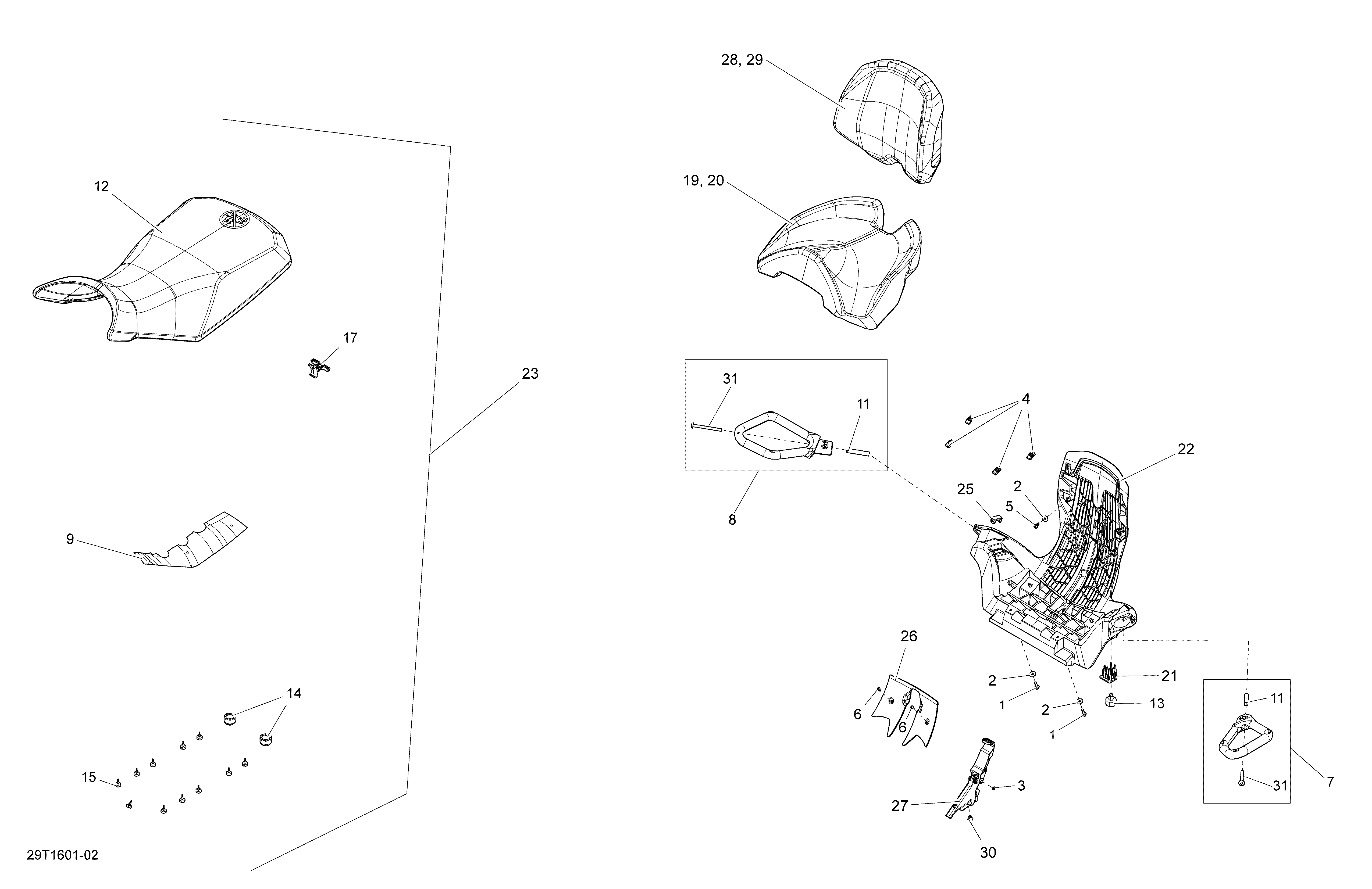

09- Seat - All Models для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1207562044 Flanged Screw M6 X 20, Scotch Grip. MAX ModelFlanged Screw M6 X 20, Scotch Grip. MAX Model
-
2224060201 Flat Washer. MAX ModelFlat Washer. MAX Model
-
3234051410 Flat Washer M5. MAX ModelFlat Washer M5. MAX Model
-
4250000048 Panel Nut M6 X 1.0. MAX ModelPanel Nut M6 X 1.0. MAX Model
-
5250000546 Oval Head Torx Screw K60 X 16. MAX ModelOval Head Torx Screw K60 X 16. MAX Model
-
6250000577 Torx Truss K40 X 12. MAX ModelTorx Truss K40 X 12. MAX Model
-
7703500806 LH Passenger Seat Handle Kit. MAX ModelLH Passenger Seat Handle Kit. MAX Model
-
8703500807 RH Passenger Seat Handle Kit. MAX ModelRH Passenger Seat Handle Kit. MAX Model
-
9705005761 Heat ShieldHeat Shield
-
11705006129 Sleeve. MAX ModelSleeve. MAX Model
-
12708000724 Black Seat Cover. Package STD, DPS, HunterBlack Seat Cover. Package STD, DPS, Hunter
-
12708001972 Seat Cover. Package PRO, LESeat Cover. Package PRO, LE
-
12708001979 Seat Cover. Package XMRSeat Cover. Package XMR
-
13708000758 Rubber Stopper. MAX ModelRubber Stopper. MAX Model
-
14708000760 Bumper RubberBumper Rubber
-
17708000909 Latch. Package STD - XMR - PROLatch. Package STD - XMR - PRO
-
19708002088 Rear Seat. MAX ModelRear Seat. MAX Model
-
20708001290 Black Seat Cover. MAX ModelBlack Seat Cover. MAX Model
-
21708001483 Seat Support. MAX ModelSeat Support. MAX Model
-
22708001487 Seat Base. MAX ModelSeat Base. MAX Model
-
23708002146 Seat Ass'y. Package STD, DPS, HunterSeat Ass'y. Package STD, DPS, Hunter
-
23708002151 Seat Ass'y. Package PRO, LESeat Ass'y. Package PRO, LE
-
23708002152 Seat Ass'y. Package XMRSeat Ass'y. Package XMR
-
25708001511 Insert. MAX ModelInsert. MAX Model
-
26708001512 Cap. MAX ModelCap. MAX Model
-
27708001532 Latch. MAX ModelLatch. MAX Model
-
28708002085 Back Rest. MAX ModelBack Rest. MAX Model
-
29708001841 Back Rest Cover. MAX ModelBack Rest Cover. MAX Model
-
30293150108 Pop Rivet 3/16''. MAX ModelPop Rivet 3/16''. MAX Model
-
31250000617 Torx Screw M8 X 90. MAX ModelTorx Screw M8 X 90. MAX Model
