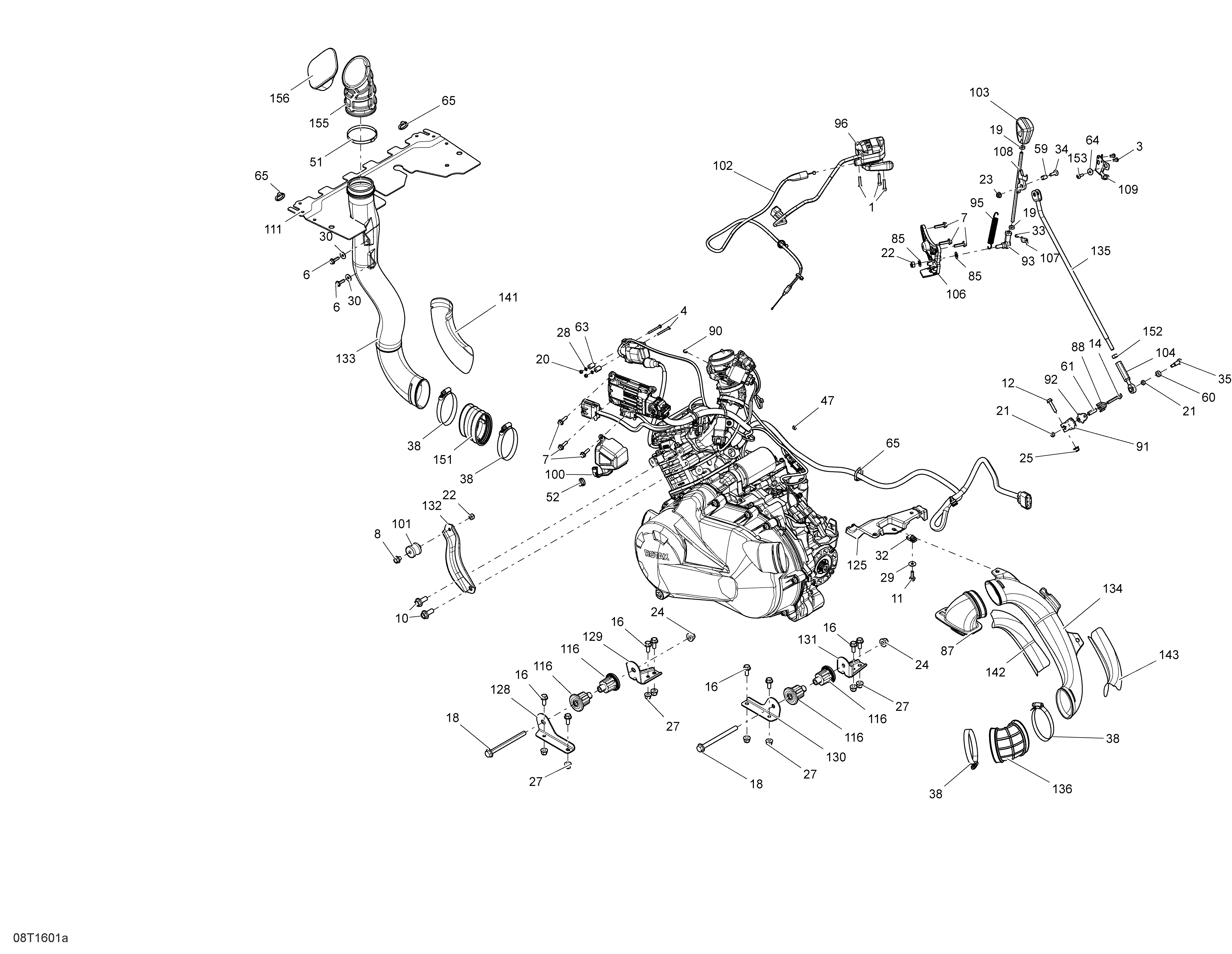

01- Engine and Engine Support - 450 EFI для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
3205951046 Socket Head Screw M5 X 10. Europe ModelSocket Head Screw M5 X 10. Europe Model
-
4207144044 Hex. Cap ScrewHex. Cap Screw
-
6207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
10207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
14207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
16207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
18230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
19232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
20232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
23233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
24233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
28234040600 Flat Washer 4 mmFlat Washer 4 mm
-
29234062410 Flat Washer 6 mmFlat Washer 6 mm
-
30234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
32250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
33250000332 Torx Screw M4 X 8. Europe ModelTorx Screw M4 X 8. Europe Model
-
34250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
35250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
38293650091 Norma ClampNorma Clamp
-
47293650100 Oetiker ClampOetiker Clamp
-
51293650240 Crimp Clamp. Package PROCrimp Clamp. Package PRO
-
52293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
59293900019 BushingBushing
-
60293900028 BushingBushing
-
61293900079 BushingBushing
-
63293900117 BushingBushing
-
64391301600 Washer. Europe ModelWasher. Europe Model
-
65414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
85506151252 WasherWasher
-
87706600024 Air OutletAir Outlet
-
88707000310 SpringSpring
-
90707000434 Cable GuideCable Guide
-
91707000503 LeverLever
-
92707000507 Pivot PlatePivot Plate
-
93707000546 RH Ball JointRH Ball Joint
-
95707000577 SpringSpring
-
96707000595 Throttle HandleThrottle Handle
-
100707000945 CoverCover
-
101707000949 Rubber IsolatorRubber Isolator
-
102707000955 Throttle CableThrottle Cable
-
103707000965 Lever ButtonLever Button
-
104707000966 Ball Joint Ass'yBall Joint Ass'y
-
106707000971 Shift Arm BaseShift Arm Base
-
107707000573 Speed Limiter. Europe ModelSpeed Limiter. Europe Model
-
108707000840 Shift Arm. Except Europe ModelShift Arm. Except Europe Model
-
108707001003 Shift Arm. Europe ModelShift Arm. Europe Model
-
109707001042 Fixing Plate. Europe ModelFixing Plate. Europe Model
-
111707001124 Upper Water DeflectorUpper Water Deflector
-
116707001169 DamperDamper
-
125707001262 Air Outlet SupportAir Outlet Support
-
128707001407 LH Front Engine BracketLH Front Engine Bracket
-
129707001408 RH Front Engine BracketRH Front Engine Bracket
-
130707001409 LH Rear Engine BracketLH Rear Engine Bracket
-
131707001410 RH Rear Engine BracketRH Rear Engine Bracket
-
132707001411 Upper Engine BracketUpper Engine Bracket
-
133707001412 CVT Air InletCVT Air Inlet
-
134707001413 CVT Air OutletCVT Air Outlet
-
135707001414 Shifter RodShifter Rod
-
136707001425 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
141707001638 Heat ShieldHeat Shield
-
142707001639 Heat ShieldHeat Shield
-
143707001641 Heat ShieldHeat Shield
-
151707001467 Flexible AdaptorFlexible Adaptor
-
152250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
153250000720 Torx Screw K50 X 16. Europe ModelTorx Screw K50 X 16. Europe Model
-
155707001864 Cvt Inlet. Package PROCvt Inlet. Package PRO
-
156707001786 Filter Cvt. Package PROFilter Cvt. Package PRO
