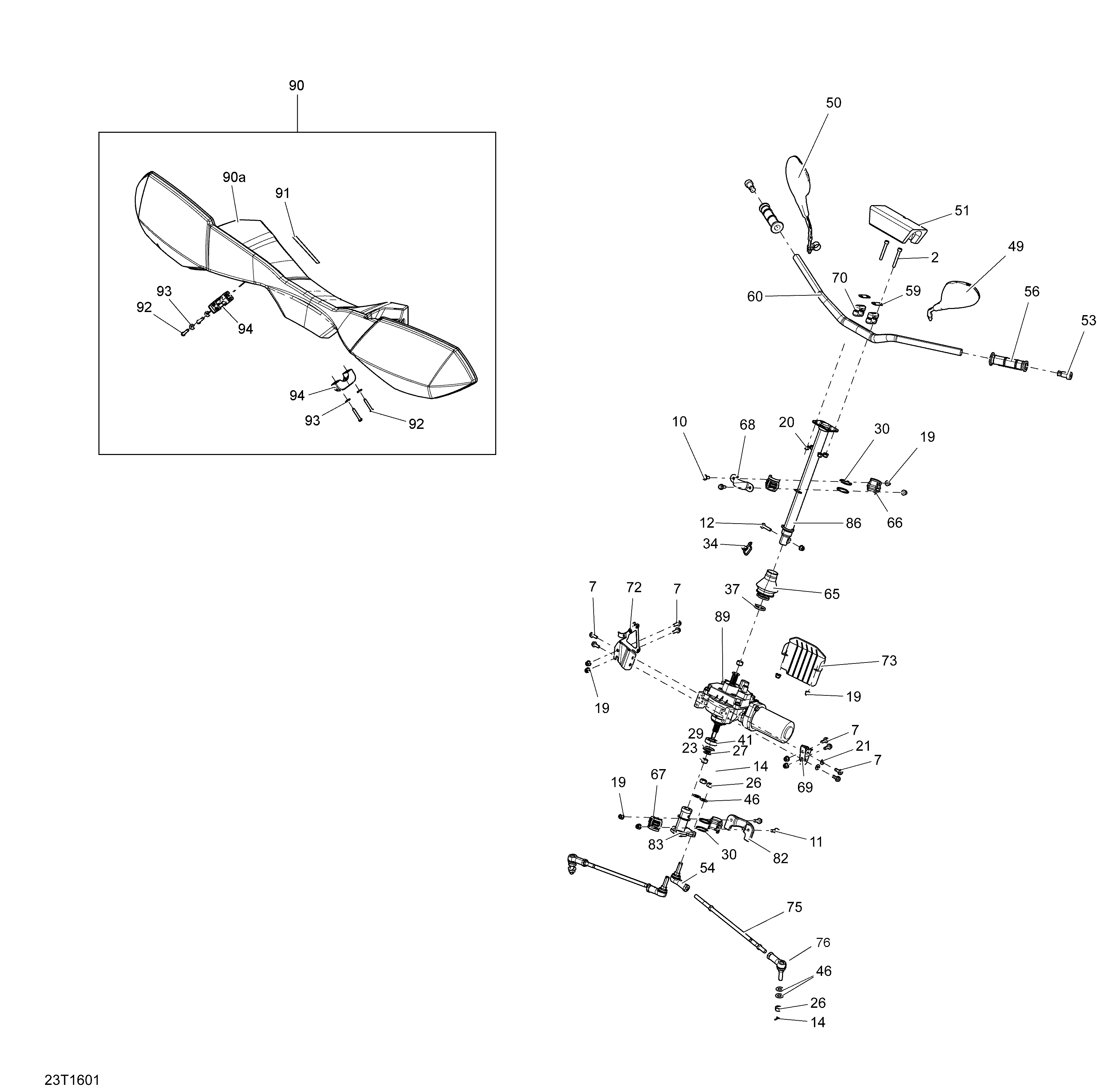

07- Steering - All Models для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
2207086046 Hex. Screw M8 X 60. Except Package XMRHex. Screw M8 X 60. Except Package XMR
-
2207086046 Hex. Screw M8 X 60. Package XMRHex. Screw M8 X 60. Package XMR
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package STDHex. Flanged Screw M8 X 20, Scotch Grip. Except Package STD
-
10207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
11207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
12207683544 Hex. Flanged Screw M8 X 35. Except Package STDHex. Flanged Screw M8 X 35. Except Package STD
-
14211400013 Cotter Pin. Package STDCotter Pin. Package STD
-
14250400034 Cotter Pin. Package STDCotter Pin. Package STD
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233281414 Hex. Flanged Elastic Nut M8. Except Package STDHex. Flanged Elastic Nut M8. Except Package STD
-
20233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
21234281474 Conical Spring Washer M8. Except Package STDConical Spring Washer M8. Except Package STD
-
23250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
26250100099 Nut M12Nut M12
-
27250200086 Flat WasherFlat Washer
-
29293250177 Seal. Package STDSeal. Package STD
-
30293300068 O-Ring. Package STDO-Ring. Package STD
-
30293300068 O-Ring. Except Package STDO-Ring. Except Package STD
-
37414115200 Tie-Rap 180 mm. Except Package STDTie-Rap 180 mm. Except Package STD
-
41503190396 Ball Bearing. Package STDBall Bearing. Package STD
-
46250200086 Flat WasherFlat Washer
-
49709400406 LH Mirror. Europe ModelLH Mirror. Europe Model
-
50709400407 RH Mirror. Europe ModelRH Mirror. Europe Model
-
51709400939 CoverCover
-
53709400449 End PieceEnd Piece
-
54709400490 Ball JointBall Joint
-
56709400493 Handle GripHandle Grip
-
59709400509 StiffnerStiffner
-
60709401240 Black Handle BarBlack Handle Bar
-
65709400674 Bellows. Except Package STDBellows. Except Package STD
-
66709400783 Spherical Half BushingSpherical Half Bushing
-
67709400783 Spherical Half Bushing. Except Package STDSpherical Half Bushing. Except Package STD
-
67709401370 Spherical Half Bushing. Package STDSpherical Half Bushing. Package STD
-
68709400827 Upper Column AttachmentUpper Column Attachment
-
69709400848 Power Steering Module Bracket. Except Package STDPower Steering Module Bracket. Except Package STD
-
70709400919 Steering SupportSteering Support
-
72709400994 RH Steering BracketRH Steering Bracket
-
73709401005 Heat Deflector. Except Package STDHeat Deflector. Except Package STD
-
75703500783 Tie-Rod Ass'y. Except Package XMR, Incl 54, 76Tie-Rod Ass'y. Except Package XMR, Incl 54, 76
-
75703500829 Tie-Rod Ass'y. Package XMR, Incl 54, 76Tie-Rod Ass'y. Package XMR, Incl 54, 76
-
76709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
82709401428 Column AttachmentColumn Attachment
-
83709401542 Pitman Arm. Package STDPitman Arm. Package STD
-
83703500785 Pitman Kit. Except Package STD/XMRPitman Kit. Except Package STD/XMR
-
83703500812 Pitman Kit. Package XMRPitman Kit. Package XMR
-
86709401545 Black Upper Main Tube. Package STDBlack Upper Main Tube. Package STD
-
86709400703 Noir Upper Main Tube. Except Package STDNoir Upper Main Tube. Except Package STD
-
89709401608 POWER STEERING. Except Package STDPOWER STEERING. Except Package STD
-
90703100352 Handle Bar Protector Kit. Package Hunter, LEHandle Bar Protector Kit. Package Hunter, LE
-
90A709400822 Handle Bar Protector. Package Hunter, LEHandle Bar Protector. Package Hunter, LE
-
91704902966 DPS Decal. Package Hunter, LEDPS Decal. Package Hunter, LE
-
92241142560 Hex. Flanged Screw K40 X 25. Package Hunter, LEHex. Flanged Screw K40 X 25. Package Hunter, LE
-
93211200035 Flat Washer. Package Hunter, LEFlat Washer. Package Hunter, LE
-
94517303264 U-Clamp. Package Hunter, LEU-Clamp. Package Hunter, LE
