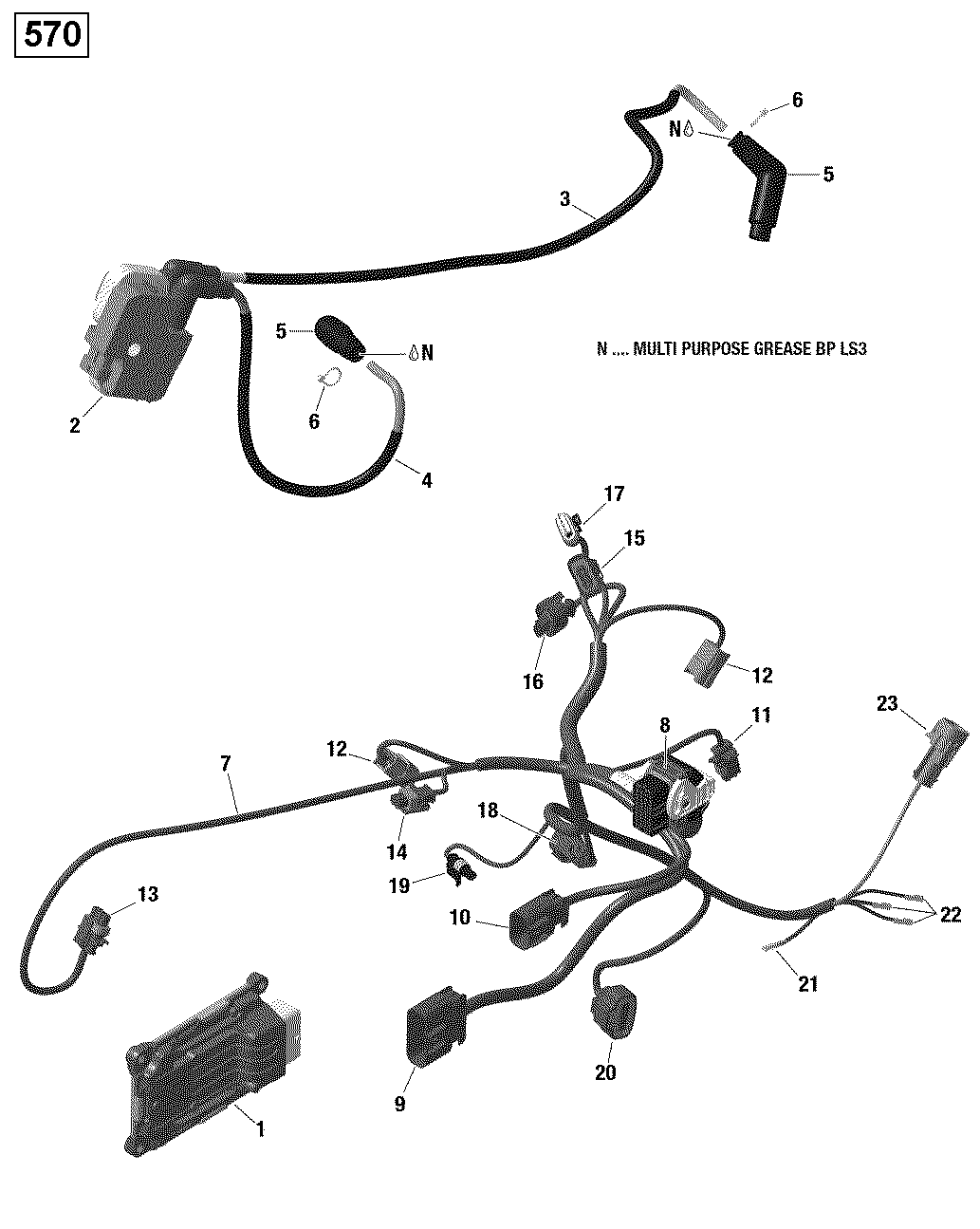

10- Engine Harness and Electronic Module - 570 EFI (Outlander L XMR) для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1420666976 ECM, Engine Control ModuleECM, Engine Control Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>23420264791 Engine Wiring HarnessEngine Wiring Harness
-
9710001227 HousingHousing
-
10710001927 HousingHousing
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
16515176410 Male ConnectorMale Connector
-
18278002378 Male HousingMale Housing
-
19278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21>21a278001009 Female TerminalFemale Terminal
-
21a278001007 Insulated SheathInsulated Sheath
-
22>22a278001009 Female TerminalFemale Terminal
-
22a278001007 Insulated SheathInsulated Sheath
