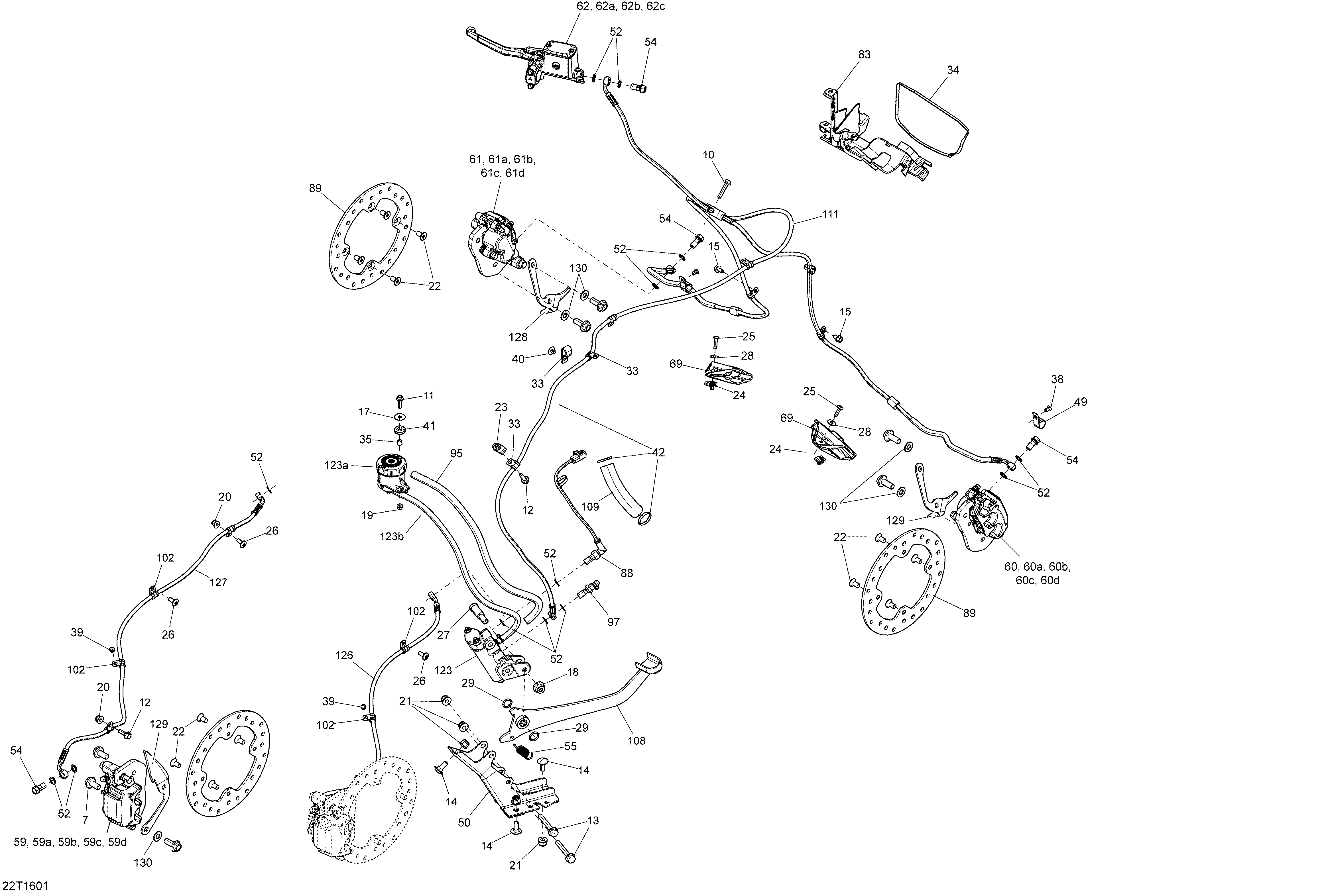

06- Brakes - North America, International для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
7207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
8207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
10207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
11207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
12207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
13207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
14207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
15210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
17224060201 Flat WasherFlat Washer
-
18233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
19233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
23250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
24250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
25250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
26250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250000513 Shoulder Screw M10Shoulder Screw M10
-
28250200025 Washer M5Washer M5
-
29293300144 O-RingO-Ring
-
33293650220 ClampClamp
-
34293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
35293900112 BushingBushing
-
38390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
39390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
41414036300 GrommetGrommet
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49518321570 Open ClampOpen Clamp
-
50705202000 Bracket Brake PedalBracket Brake Pedal
-
52705600310 Copper WasherCopper Washer
-
54705600609 Banjo BoltBanjo Bolt
-
55705600792 Brake Pedal SpringBrake Pedal Spring
-
59705600859 RH Rear Caliper Ass'yRH Rear Caliper Ass'y
-
59a705601016 Pin SetPin Set
-
59b705601017 Bleeding ScrewBleeding Screw
-
59c705601018 SpringSpring
-
59d705601014 RH Brake Pad KitRH Brake Pad Kit
-
60705600861 RH Front Caliper Ass'yRH Front Caliper Ass'y
-
60a705601014 RH Brake Pad KitRH Brake Pad Kit
-
60b705601016 Pin SetPin Set
-
60c705601017 Bleeding ScrewBleeding Screw
-
60d705601018 SpringSpring
-
61705600862 LH Front Caliper Ass'yLH Front Caliper Ass'y
-
61a705601016 Pin SetPin Set
-
61b705601017 Bleeding ScrewBleeding Screw
-
61c705601018 SpringSpring
-
61d705601015 LH Brake Pad KitLH Brake Pad Kit
-
62705600865 Front Master CylinderFront Master Cylinder
-
62a705601013 Lever SetLever Set
-
62b507032477 Clamp And Screw KitClamp And Screw Kit
-
62c219800096 Cap SetCap Set
-
69705600962 Front Hose ProtectorFront Hose Protector
-
83705600983 Front Hose BracketFront Hose Bracket
-
88705601250 Brake SwitchBrake Switch
-
89705600999 Disc BrakeDisc Brake
-
95415079900 Tubing 10 mmTubing 10 mm
-
97705601051 Bleeding ScrewBleeding Screw
-
102715900250 Hose ClipHose Clip
-
108705601155 Brake PedalBrake Pedal
-
111705601263 Front HoseFront Hose
-
123705601273 Rear Master CylinderRear Master Cylinder
-
123a705601020 Oil TankOil Tank
-
123b705601019 Housing Oil HoseHousing Oil Hose
-
126705601301 RH Rear Hose. Except Max ModelRH Rear Hose. Except Max Model
-
126705601302 RH Rear Hose. Max ModelRH Rear Hose. Max Model
-
128705601214 LH Deflector. Package XMRLH Deflector. Package XMR
-
129705601215 RH Deflector. Package XMRRH Deflector. Package XMR
-
130234001410 Flat Washer 10 mm. Package XMRFlat Washer 10 mm. Package XMR
