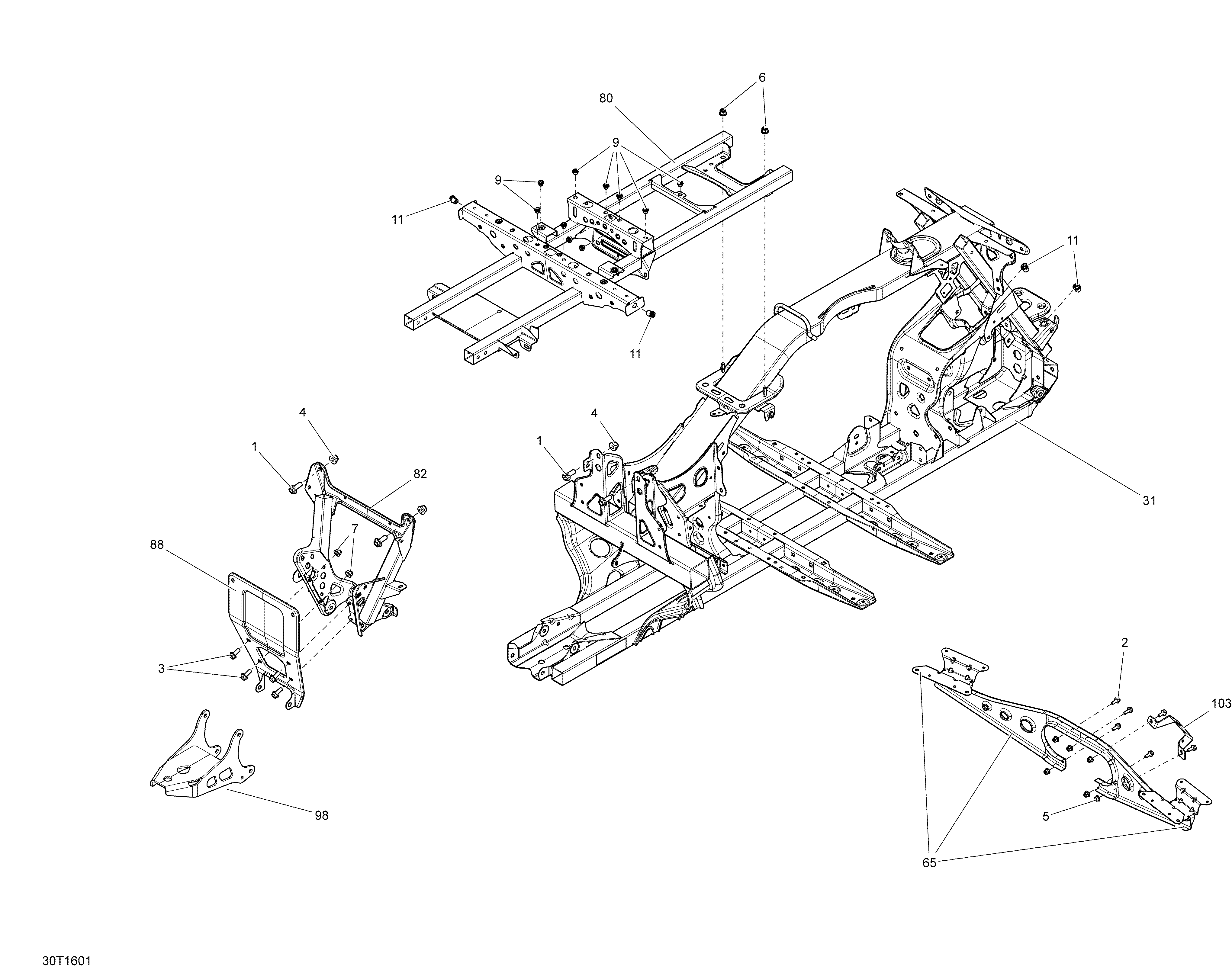

09- Frame - All Models для BRP Outlander L - Outlander L MAX - 2016
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207661644 Hex. Flanged Screw M6 X 16. MAX ModelHex. Flanged Screw M6 X 16. MAX Model
-
3207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233261414 Hex. Flanged Elastic Nut M6. MAX ModelHex. Flanged Elastic Nut M6. MAX Model
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9293450232 Insert. MAX ModelInsert. MAX Model
-
9293450232 Insert. Except MAX ModelInsert. Except MAX Model
-
11293450307 InsertInsert
-
31705204116 Black Frame. Except MAX ModelBlack Frame. Except MAX Model
-
31705204118 Black Frame. MAX ModelBlack Frame. MAX Model
-
65705202947 Footrest Support. MAX ModelFootrest Support. MAX Model
-
80705203427 Black Frame Extension. MAX ModelBlack Frame Extension. MAX Model
-
80705203362 Black Frame Extension. Except MAX ModelBlack Frame Extension. Except MAX Model
-
82705203387 Black Rear SupportBlack Rear Support
-
88705203541 Rear SupportRear Support
-
98705205430 Black Trailer HitchBlack Trailer Hitch
-
103705203874 Master Cylinder Bracket. MAX ModelMaster Cylinder Bracket. MAX Model
