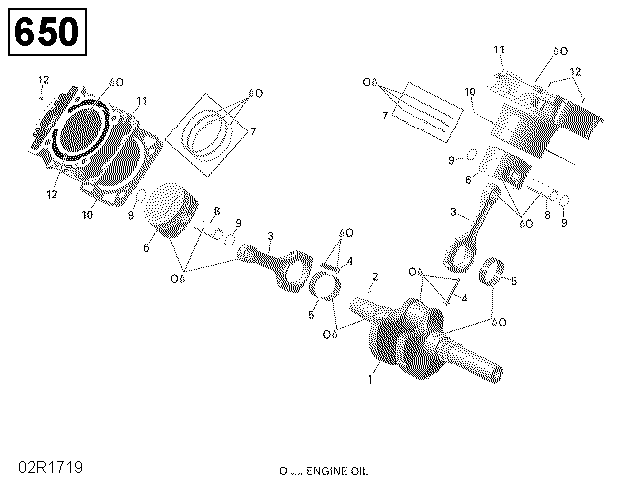

01- Crankshaft and Pistons - 650 EFI для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
1420219745 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3>4420217429 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6>7420685712 Piston Ass'y, 82 mmPiston Ass'y, 82 mm
-
6>7420684111 Piston Ass'y, Oversize, 82.208 mmPiston Ass'y, Oversize, 82.208 mm
-
7420684384 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845109 Piston CirclipPiston Circlip
-
10420630210 Gasket. Piston Ass'y, 83.958 mmGasket. Piston Ass'y, 83.958 mm
-
11420613887 Cylinder With SleeveCylinder With Sleeve
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
