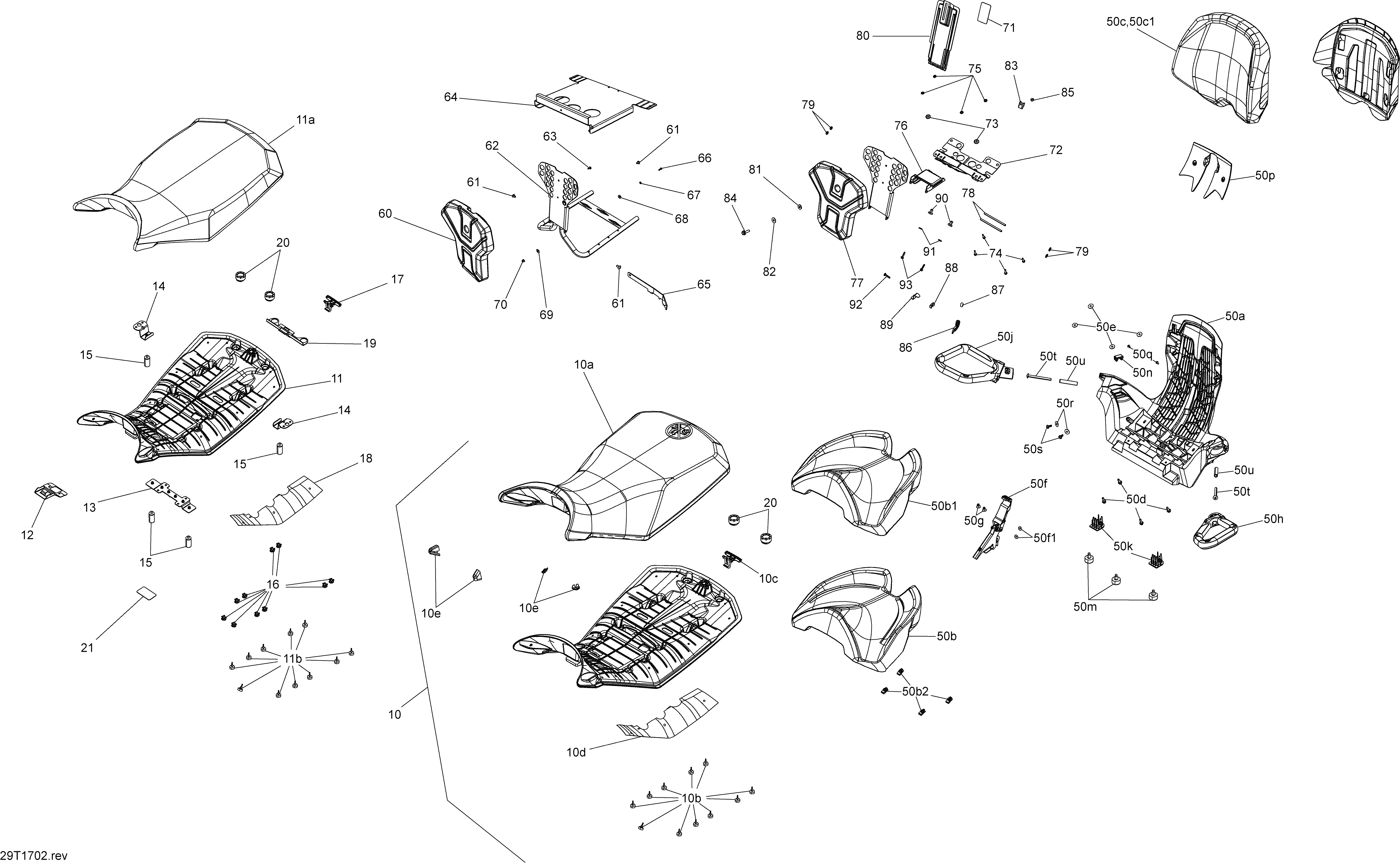

09- Seat - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10>10d708002146 Seat Ass'y. Package STD, DPS. Includes 10 to 10dSeat Ass'y. Package STD, DPS. Includes 10 to 10d
-
10>10d708002146 Seat Ass'y. Package Hunter, Limited. Includes 10 to 10dSeat Ass'y. Package Hunter, Limited. Includes 10 to 10d
-
10>10d708002152 Seat Ass'y. Package XMR Red/White/Black. Includes 10 to 10dSeat Ass'y. Package XMR Red/White/Black. Includes 10 to 10d
-
10>10d708002491 Seat Ass'y. Package XT, XTP. Includes 10 to 10dSeat Ass'y. Package XT, XTP. Includes 10 to 10d
-
10>10d708002315 Seat Ass'y. Package XMR Black. Includes 10 to 10dSeat Ass'y. Package XMR Black. Includes 10 to 10d
-
10>10e708002151 Seat Ass'y. Package PRO. Includes 10 to 10eSeat Ass'y. Package PRO. Includes 10 to 10e
-
10a708000724 Black Seat Cover. Package STD, DPSBlack Seat Cover. Package STD, DPS
-
10a708000724 Black Seat Cover. Package Hunter, LimitedBlack Seat Cover. Package Hunter, Limited
-
10a708001972 Seat Cover. Package PROSeat Cover. Package PRO
-
10a708001979 Seat Cover. Package XMR Red/White/BlackSeat Cover. Package XMR Red/White/Black
-
10a708000724 Seat Cover. Package XT, XTPSeat Cover. Package XT, XTP
-
10a708002317 Seat Cover. Package XMR BlackSeat Cover. Package XMR Black
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000909 LatchLatch
-
10d705005761 Heat ShieldHeat Shield
-
10e708002077 Center, Corner Seat. Package PROCenter, Corner Seat. Package PRO
-
10e269001669 RH, Corner Seat. Package PRORH, Corner Seat. Package PRO
-
10e269001670 LH, Corner Seat. Package PROLH, Corner Seat. Package PRO
-
11>11b708002208 Seat Ass'y. Model T3Seat Ass'y. Model T3
-
11a605156558 Seat Cover. Model T3Seat Cover. Model T3
-
11b708000759 Rubber Stopper. Model T3Rubber Stopper. Model T3
-
12605456520 Front Bottom Support. Model T3Front Bottom Support. Model T3
-
13510005986 Support Central Cushion. Model T3Support Central Cushion. Model T3
-
14510005988 Support Rear Cushion. Model T3Support Rear Cushion. Model T3
-
15605456546 Rubber Damper. Model T3Rubber Damper. Model T3
-
16293150067 Rivet. Model T3Rivet. Model T3
-
17708000909 Latch. Model T3Latch. Model T3
-
18705005761 Heat Shield. Model T3Heat Shield. Model T3
-
19705204621 Support Rear Seat. Model T3Support Rear Seat. Model T3
-
20708000760 Bumper Rubber. Model T3Bumper Rubber. Model T3
-
21605456593 Decal. Model T3Decal. Model T3
-
50a708001487 Seat BaseSeat Base
-
50b708002086 Seat. Outlander Max Except LTDSeat. Outlander Max Except LTD
-
50b708002313 Seat. Package LTDSeat. Package LTD
-
50b1708001581 Passenger Seat Cover. Outlander Max Except LTDPassenger Seat Cover. Outlander Max Except LTD
-
50b1708002398 Rear Seat Cover. Package LTDRear Seat Cover. Package LTD
-
50b2250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
50c708002081 Backrest. Outlander Max Except LTDBackrest. Outlander Max Except LTD
-
50c708002314 Backrest. Package LTDBackrest. Package LTD
-
50c1708001847 Back Rest Cover. Outlander Max Except LTDBack Rest Cover. Outlander Max Except LTD
-
50c1708002399 Back Rest Cover. Package LTDBack Rest Cover. Package LTD
-
50d207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
50e224061201 Flat WasherFlat Washer
-
50f708001532 LatchLatch
-
50f1234051410 Flat Washer M5Flat Washer M5
-
50g293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
50h703500806 LH Passenger Seat Handle KitLH Passenger Seat Handle Kit
-
50j703500807 RH Passenger Seat Handle KitRH Passenger Seat Handle Kit
-
50k708001483 Seat SupportSeat Support
-
50m708000758 Rubber StopperRubber Stopper
-
50n708001511 InsertInsert
-
50p708001512 CapCap
-
50q250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
50r224060201 Flat WasherFlat Washer
-
50s250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
50t250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
50u705009248 SleeveSleeve
-
60708001794 Backrest. Outlander T3Backrest. Outlander T3
-
61250000675 Torx Truss Screw M6 x 12. Outlander T3Torx Truss Screw M6 x 12. Outlander T3
-
62708001993 Backrest. Outlander T3Backrest. Outlander T3
-
63605454799 Rubber. Outlander T3Rubber. Outlander T3
-
64708001991 Rails. Outlander T3Rails. Outlander T3
-
65708001820 Lock. Outlander T3Lock. Outlander T3
-
66250000652 Socket Screw M5 X 16. Outlander T3Socket Screw M5 X 16. Outlander T3
-
67234451418 Lock Serrated Washer 5 mm. Outlander T3Lock Serrated Washer 5 mm. Outlander T3
-
68250200024 Rubber Washer 5 mm. Outlander T3Rubber Washer 5 mm. Outlander T3
-
69250200025 Washer M5. Outlander T3Washer M5. Outlander T3
-
70233251494 Elastic Flanged Nut M5. Outlander T3Elastic Flanged Nut M5. Outlander T3
-
71605456560 Decal. Outlander T3Decal. Outlander T3
-
72708001796 Support. Outlander Max T3Support. Outlander Max T3
-
73605452114 Plug. Outlander Max T3Plug. Outlander Max T3
-
74207663534 Hex. Flanged Screw M6 X 35. Outlander Max T3Hex. Flanged Screw M6 X 35. Outlander Max T3
-
75732610072 Push Nut. Outlander Max T3Push Nut. Outlander Max T3
-
76708001797 Sliding Rail. Outlander Max T3Sliding Rail. Outlander Max T3
-
77708001794 Backrest. Outlander Max T3Backrest. Outlander Max T3
-
78605456662 Pin. Outlander Max T3Pin. Outlander Max T3
-
79m36084 Washer. Outlander Max T3Washer. Outlander Max T3
-
80708001798 Sliding Cover. Outlander Max T3Sliding Cover. Outlander Max T3
-
81250200024 Rubber Washer 5 mm. Outlander Max T3Rubber Washer 5 mm. Outlander Max T3
-
8220117 Washer. Outlander Max T3Washer. Outlander Max T3
-
83708001799 Sliding Guide. Outlander Max T3Sliding Guide. Outlander Max T3
-
84207662054 Hex. Flanged Screw M6 X 20. Outlander Max T3Hex. Flanged Screw M6 X 20. Outlander Max T3
-
85233261494 Hex. Elastic Flanged Nut M6. Outlander Max T3Hex. Elastic Flanged Nut M6. Outlander Max T3
-
86506152646 Lever. Outlander Max T3Lever. Outlander Max T3
-
87506152647 Lever Pin. Outlander Max T3Lever Pin. Outlander Max T3
-
88506152706 Compression Block. Outlander Max T3Compression Block. Outlander Max T3
-
89708301660 Lever Guide. Outlander Max T3Lever Guide. Outlander Max T3
-
90250100018 Nut M5. Outlander Max T3Nut M5. Outlander Max T3
-
91250200025 Washer M5. Outlander Max T3Washer M5. Outlander Max T3
-
92250000634 Stainless Torx Screw M6 X 30. Outlander Max T3Stainless Torx Screw M6 X 30. Outlander Max T3
-
93207652544 Hex. Flanged Screw M5 X 25. Outlander Max T3Hex. Flanged Screw M5 X 25. Outlander Max T3
