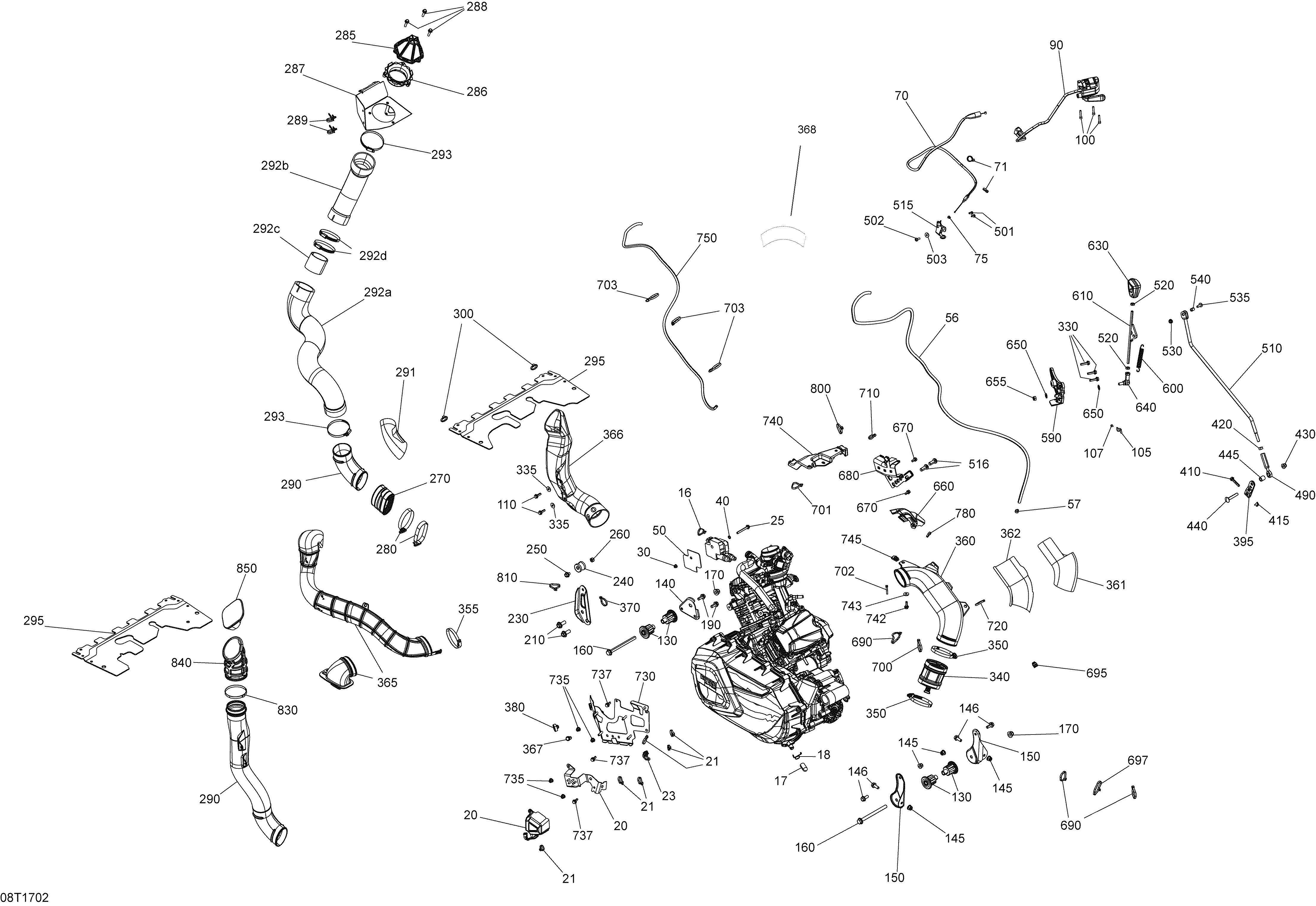

01- Engine And Engine Support - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17707001185 PlugPlug
-
18707800506 Retainer ClipRetainer Clip
-
20707000945 Cover. Except Package XMRCover. Except Package XMR
-
20707001563 Cover. Package XMRCover. Package XMR
-
21293750002 Tie-Rap 142 mm. Except Package XMRTie-Rap 142 mm. Except Package XMR
-
21414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
-
23710002896 Tie-Rap Clip. Package XMRTie-Rap Clip. Package XMR
-
25207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
50710000073 Insulator PadInsulator Pad
-
56415080200 Hose, PolyurethaneHose, Polyurethane
-
57293650195 Clamp, OetikerClamp, Oetiker
-
70707000955 Throttle CableThrottle Cable
-
71414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
75707000434 Cable GuideCable Guide
-
90707000595 Throttle HandleThrottle Handle
-
100205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
105707000994 Speed Limiter. Engine 650 Europe, T3Speed Limiter. Engine 650 Europe, T3
-
105707000994 Speed Limiter. Engine 1000 T3Speed Limiter. Engine 1000 T3
-
105707001927 Speed Limiter. Engine 850-1000 EuropeSpeed Limiter. Engine 850-1000 Europe
-
105707001927 Speed Limiter. Engine 570 T3Speed Limiter. Engine 570 T3
-
107250000332 Torx Screw M4 X 8. Model Europe, T3Torx Screw M4 X 8. Model Europe, T3
-
110207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
130707001169 DamperDamper
-
140707000761 RH Front Engine BracketRH Front Engine Bracket
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001191 LH Rear Engine Bracket. Package Pro, XMR 1000LH Rear Engine Bracket. Package Pro, XMR 1000
-
150707001192 RH Rear Engine Bracket. Package Pro, XMR 1000RH Rear Engine Bracket. Package Pro, XMR 1000
-
150707001193 LH Rear Engine Bracket. Except Package Pro, XMR 1000, XTP T3LH Rear Engine Bracket. Except Package Pro, XMR 1000, XTP T3
-
150707001194 RH Rear Engine Bracket. Except Package Pro, XMR 1000, XTP T3RH Rear Engine Bracket. Except Package Pro, XMR 1000, XTP T3
-
150707001191 LH Rear Engine Bracket. Package XTP T3LH Rear Engine Bracket. Package XTP T3
-
150707001192 RH Rear Engine Bracket. Package XTP T3RH Rear Engine Bracket. Package XTP T3
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
190207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707000781 Upper Engine Bracket, Black. Engine 1000RUpper Engine Bracket, Black. Engine 1000R
-
230707001256 Upper Engine Bracket. Except Engine 1000RUpper Engine Bracket. Except Engine 1000R
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
285707001130 Filter CVT. Engine 850-1000Filter CVT. Engine 850-1000
-
285707001130 Filter CVT. Package XMR 650Filter CVT. Package XMR 650
-
285707001130 Filter CVT. XTP T3Filter CVT. XTP T3
-
286707001171 CVT Filter Base. Engine 850-1000CVT Filter Base. Engine 850-1000
-
286707001171 CVT Filter Base. Package XMR 650CVT Filter Base. Package XMR 650
-
286707001171 CVT Filter Base. XTP T3CVT Filter Base. XTP T3
-
287707001203 CVT Filter Support. Package XMRCVT Filter Support. Package XMR
-
288207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. Package XMRHex. Flanged Screw M6 X 25, Scotch Grip. Package XMR
-
289293750009 Tie-Rap 173 mm. Package XMRTie-Rap 173 mm. Package XMR
-
290707001087 CVT Air Inlet. Package XMRCVT Air Inlet. Package XMR
-
290707001163 CVT Air Inlet. Except Package XMRCVT Air Inlet. Except Package XMR
-
291707001654 Heat ShieldHeat Shield
-
292a707001301 CVT Air Inlet. Package XMRCVT Air Inlet. Package XMR
-
292b707001302 CVT Air Inlet. Package XMRCVT Air Inlet. Package XMR
-
292c707001263 Tube. Package XMRTube. Package XMR
-
292d293650091 Norma Clamp. Package XMRNorma Clamp. Package XMR
-
293293650091 Norma Clamp. Package XMRNorma Clamp. Package XMR
-
295707001124 Upper Water Deflector. Except Package XMRUpper Water Deflector. Except Package XMR
-
295707001129 Deflector. Package XMRDeflector. Package XMR
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
330207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707001168 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
350293650118 Norma Gear ClampNorma Gear Clamp
-
355293650091 Norma Clamp. Package XMRNorma Clamp. Package XMR
-
360706600019 Air OutletAir Outlet
-
361707001205 Heat ShieldHeat Shield
-
362707001206 Heat ShieldHeat Shield
-
365706600024 Air Outlet. Except Package XMRAir Outlet. Except Package XMR
-
365707001496 Air Outlet. Package XMRAir Outlet. Package XMR
-
366707001497 Air Outlet. Package XMRAir Outlet. Package XMR
-
367293150089 Tuflok Plastic Rivet. Package XMRTuflok Plastic Rivet. Package XMR
-
368707002092 Heat Shield. Package XMRHeat Shield. Package XMR
-
370293750002 Tie-Rap 142 mm. Except Package XMRTie-Rap 142 mm. Except Package XMR
-
370414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
-
380708000506 Rubber Stopper. Package XMRRubber Stopper. Package XMR
-
395707000911 LeverLever
-
410207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
415233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
440207783044 Carriage Bolt M8 X 30. Package Pro, XMR 1000, XTP T3Carriage Bolt M8 X 30. Package Pro, XMR 1000, XTP T3
-
440207785044 Carriage Bolt M8 X 50. Except Package Pro, XMR 1000, XTP T3Carriage Bolt M8 X 50. Except Package Pro, XMR 1000, XTP T3
-
445293900106 Bushing. Except Package XMR 1000, XTP T3Bushing. Except Package XMR 1000, XTP T3
-
490707000966 Ball Joint Ass'yBall Joint Ass'y
-
501205951046 Socket Head Screw M5 X 10. Model Europe, T3Socket Head Screw M5 X 10. Model Europe, T3
-
502250000720 Torx Screw K50 X 16. Model Europe, T3Torx Screw K50 X 16. Model Europe, T3
-
503391301600 Washer. Model Europe, T3Washer. Model Europe, T3
-
510707001015 Shifter Rod. Package Pro, XMR 1000, XTP T3Shifter Rod. Package Pro, XMR 1000, XTP T3
-
510707001564 Shifter Rod. Except Package Pro, XMR 1000, XTP T3Shifter Rod. Except Package Pro, XMR 1000, XTP T3
-
515707001042 Fixing Plate. Model Europe, T3Fixing Plate. Model Europe, T3
-
516205402556 Screw Socket M10 X 25Screw Socket M10 X 25
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
535250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
540293900019 BushingBushing
-
590707000971 Shift Arm BaseShift Arm Base
-
600707000577 SpringSpring
-
610707000840 Shift Arm. Except Model Europe, T3Shift Arm. Except Model Europe, T3
-
610707001003 Shift Arm. Model Europe, T3Shift Arm. Model Europe, T3
-
630707000965 Lever ButtonLever Button
-
640707001959 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
660707000410 Cover OPSCover OPS
-
670210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
680707001955 Upper Cable SupportUpper Cable Support
-
690414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
697414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
701414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
702414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
703414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
710414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
720293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
730707001498 Welded Support. Package XMRWelded Support. Package XMR
-
735233261414 Hex. Flanged Elastic Nut M6. Package XMRHex. Flanged Elastic Nut M6. Package XMR
-
737207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Package XMRHex. Flanged Screw M6 X 16, Scotch Grip. Package XMR
-
740707001262 Air Outlet SupportAir Outlet Support
-
742207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
743234062410 Flat Washer 6 mmFlat Washer 6 mm
-
745250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
750415080200 Hose, Polyurethane. Package XMRHose, Polyurethane. Package XMR
-
780414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
800414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
810414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
830293650240 Crimp Clamp. Package ProCrimp Clamp. Package Pro
-
840707001864 CVT Inlet. Package ProCVT Inlet. Package Pro
-
850707001786 CVT Filter. Package ProCVT Filter. Package Pro
