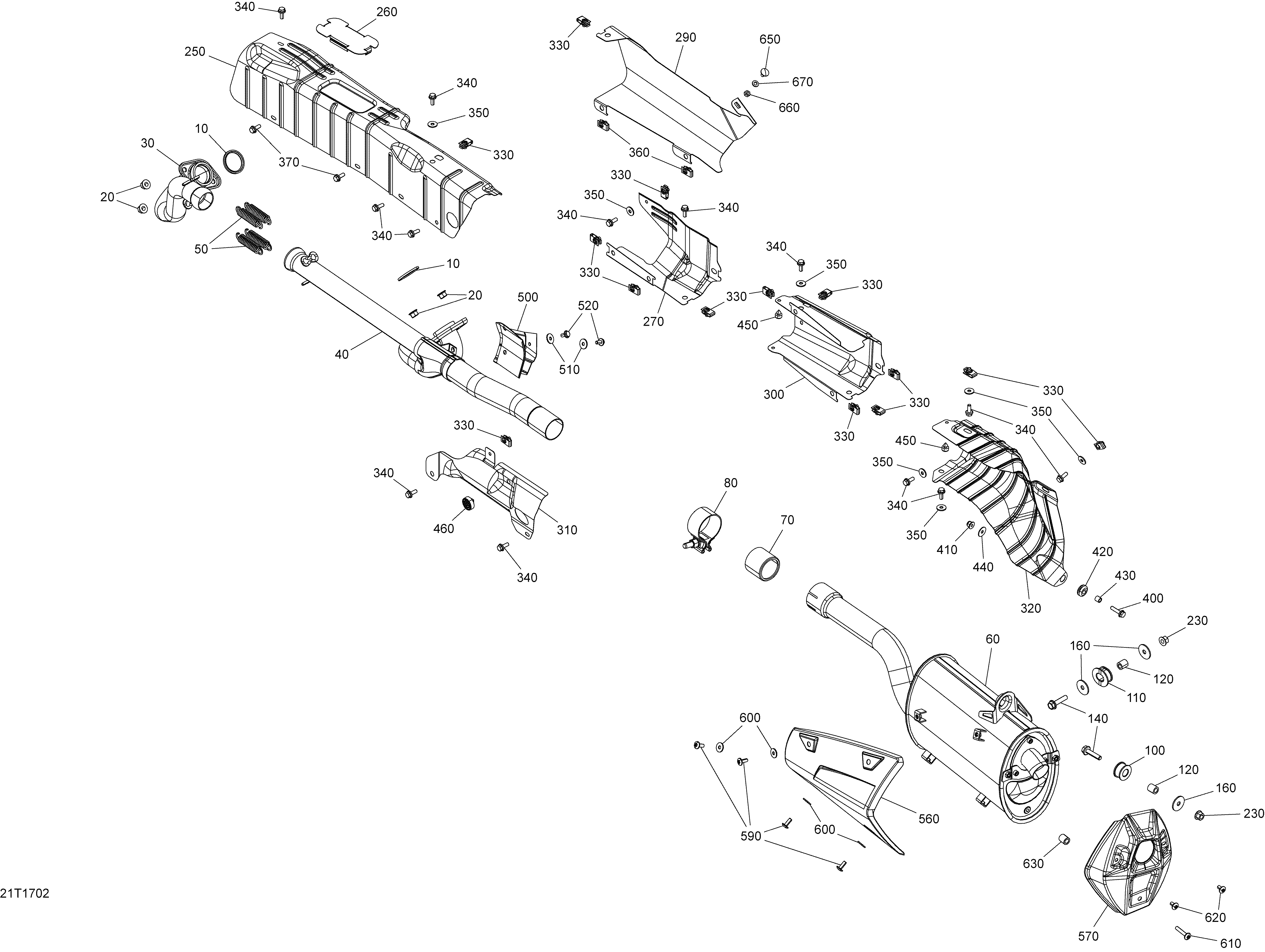

01- Exhaust System - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707600627 Front Head Pipe. Engine 1000RFront Head Pipe. Engine 1000R
-
30707600764 Front Head Pipe. Engine 650-850Front Head Pipe. Engine 650-850
-
40707601446 Rear Head Pipe. Outlander 650, 850Rear Head Pipe. Outlander 650, 850
-
40707601447 Rear Head Pipe. Outlander Max 650, 850Rear Head Pipe. Outlander Max 650, 850
-
40707601455 Rear Head Pipe. Outlander 1000RRear Head Pipe. Outlander 1000R
-
40707601456 Rear Head Pipe. Outlander Max 1000RRear Head Pipe. Outlander Max 1000R
-
50415107100 SpringSpring
-
60707600629 Muffler. Except Model EuropeMuffler. Except Model Europe
-
60707600799 Muffler. Engine 650 Europe, T3Muffler. Engine 650 Europe, T3
-
60707600799 Muffler. Engine 1000 T3Muffler. Engine 1000 T3
-
60707601723 Muffler. Engine 850-1000R EuropeMuffler. Engine 850-1000R Europe
-
70707601544 Pipe GasketPipe Gasket
-
80293650231 Gear ClampGear Clamp
-
100707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
110707600448 RubberRubber
-
120293900116 Spacer BushingSpacer Bushing
-
140207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
160250200158 Flat Washer M8Flat Washer M8
-
180233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
250707601486 ProtectorProtector
-
260707600995 Heat Shield. Package XMRHeat Shield. Package XMR
-
270707601484 ProtectorProtector
-
290707600996 Heat Shield. Package Pro, XMRHeat Shield. Package Pro, XMR
-
300707601485 Protector. Outlander MaxProtector. Outlander Max
-
310707600994 Heat Shield. Outlander MaxHeat Shield. Outlander Max
-
320707601425 ProtectorProtector
-
330250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
340207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
350234062410 Flat Washer 6 mmFlat Washer 6 mm
-
360250000048 Panel Nut M6 X 1.0. Package Pro, XMRPanel Nut M6 X 1.0. Package Pro, XMR
-
370207661644 Hex. Flanged Screw M6 X 16. Package Pro, XMRHex. Flanged Screw M6 X 16. Package Pro, XMR
-
400207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
410233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
420293720053 GrommetGrommet
-
430293900105 BushingBushing
-
440224060201 Flat WasherFlat Washer
-
450293830005 Rubber BumperRubber Bumper
-
460708000506 Rubber Stopper. Outlander MaxRubber Stopper. Outlander Max
-
500707600932 Pipe ProtectorPipe Protector
-
510250200082 Flat WasherFlat Washer
-
520250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
560707600710 Heat DeflectorHeat Deflector
-
570707601255 Heat Shield End CapHeat Shield End Cap
-
590250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
600234062670 Flat Washer, StainlessFlat Washer, Stainless
-
610250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
620250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
630293900106 BushingBushing
-
650207761244 Carriage Bolt M6 X 12. Package Pro, XMRCarriage Bolt M6 X 12. Package Pro, XMR
-
660232561414 Elastic Stop Nut M6. Package Pro, XMRElastic Stop Nut M6. Package Pro, XMR
-
670234061410 Flat Washer 6 mm. Package Pro, XMRFlat Washer 6 mm. Package Pro, XMR
