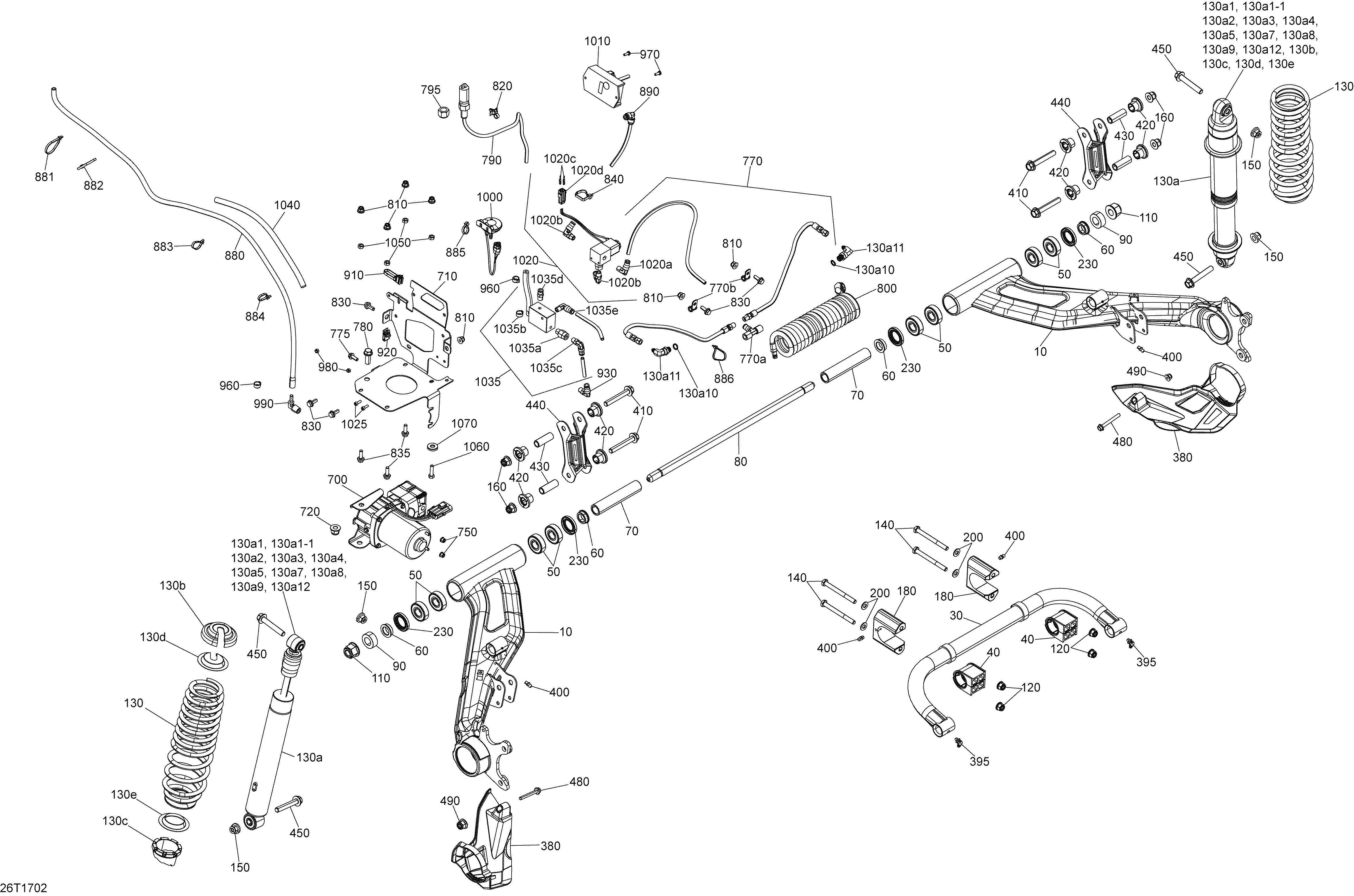

08- Rear Suspension - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10706002414 Black LH Swing Arm. Except Package XMR Red/White/BlackBlack LH Swing Arm. Except Package XMR Red/White/Black
-
10706002415 Black RH Swing Arm. Except Package XMR Red/White/BlackBlack RH Swing Arm. Except Package XMR Red/White/Black
-
10706002634 Red LH Swing Arm. Package XMR Red/White/BlackRed LH Swing Arm. Package XMR Red/White/Black
-
10706002635 Red RH Swing Arm. Package XMR Red/White/BlackRed RH Swing Arm. Package XMR Red/White/Black
-
30706000988 SwaybarSwaybar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 EntretoiseEntretoise
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
130a706000958 Shock. Outlander STD, DPSShock. Outlander STD, DPS
-
130a706000958 Shock. Outlander XTShock. Outlander XT
-
130a706000958 Shock. Package Pro, HunterShock. Package Pro, Hunter
-
130a706000958 Shock. Package XMR 650Shock. Package XMR 650
-
130a706000970 Rear Shock. Outlander Max DPSRear Shock. Outlander Max DPS
-
130a706000970 Rear Shock. Outlander Max XTRear Shock. Outlander Max XT
-
130a1>130a9706002597 Rear Shock. Package XTP. Includes 130a1 to 130a8Rear Shock. Package XTP. Includes 130a1 to 130a8
-
130a1>130a8706002339 Rear Shock. Package XMR 850. Includes 130a1 to 130a8Rear Shock. Package XMR 850. Includes 130a1 to 130a8
-
130a1>130a10706002601 Rear Shock. Package XMR 1000. Includes 130a1 to 130a9Rear Shock. Package XMR 1000. Includes 130a1 to 130a9
-
130a10>130a12706000930 Rear Shock. Package LTD. Includes 130a10 to 130a12Rear Shock. Package LTD. Includes 130a10 to 130a12
-
130a1715900336 Ball Journal. Package XMR 1000, XTPBall Journal. Package XMR 1000, XTP
-
130a1-1715900484 Spherical Bearing. Package XMR 1000Spherical Bearing. Package XMR 1000
-
130a2715900209 O-Ring Bushing. Package XTPO-Ring Bushing. Package XTP
-
130a2715900209 O-Ring Bushing. Package XMR 1000O-Ring Bushing. Package XMR 1000
-
130a3715900252 Retaining Ring. Package XTPRetaining Ring. Package XTP
-
130a3715900252 Retaining Ring. Package XMR 1000Retaining Ring. Package XMR 1000
-
130a4706201585 Bushing Sleeve. Package XMR 850Bushing Sleeve. Package XMR 850
-
130a4706201585 Bushing Sleeve. Package XTPBushing Sleeve. Package XTP
-
130a5706201586 Bushing Sleeve. Package XMR 850Bushing Sleeve. Package XMR 850
-
130a5706201586 Bushing Sleeve. Package XTPBushing Sleeve. Package XTP
-
130a7715900210 Interior Bushing. Package XMR 1000Interior Bushing. Package XMR 1000
-
130a7715900210 Interior Bushing. Package XTPInterior Bushing. Package XTP
-
130a8706201584 Bushing. Package XMR 850Bushing. Package XMR 850
-
130a8706201648 Bushing. Package XTPBushing. Package XTP
-
130a9715900331 Protector. Package XMR 1000, XTPProtector. Package XMR 1000, XTP
-
130a10715900209 O-Ring Bushing. Package LTD, XMR 1000RO-Ring Bushing. Package LTD, XMR 1000R
-
130a11706001200 Elbow 90°. Package LTDElbow 90°. Package LTD
-
130a12715900210 Interior Bushing. Package LTDInterior Bushing. Package LTD
-
130b706200881 Spring Stopper. Except Package XTP, XMR 850, XMR 1000Spring Stopper. Except Package XTP, XMR 850, XMR 1000
-
130c505073625 Adjustment Cam. Except Package XTP, XMR 850, XMR 1000Adjustment Cam. Except Package XTP, XMR 850, XMR 1000
-
130d706200785 Cap. Except Package XTP, XMR 850, XMR 1000Cap. Except Package XTP, XMR 850, XMR 1000
-
130e503187500 Spring Guide. Except Package XTP, XMR 850, XMR 1000Spring Guide. Except Package XTP, XMR 850, XMR 1000
-
130706000836 Black Rear Spring. Package LTDBlack Rear Spring. Package LTD
-
130706002585 Black Spring. Package Pro, HunterBlack Spring. Package Pro, Hunter
-
130706002427 Black Spring. Outlander Max DPS, XTBlack Spring. Outlander Max DPS, XT
-
130706002464 Black Spring. Outlander STD, DPS, XTBlack Spring. Outlander STD, DPS, XT
-
130706002468 Black Spring. Package XTPBlack Spring. Package XTP
-
130706002468 Black Spring. Package XMR 1000 BlackBlack Spring. Package XMR 1000 Black
-
130706002473 Red Spring. Package XMR 1000 Red/White/BlackRed Spring. Package XMR 1000 Red/White/Black
-
130706002473 Red Spring. Package XMR 850Red Spring. Package XMR 850
-
130706002494 Red Spring. Package XMR 650Red Spring. Package XMR 650
-
140207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
160233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
380706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420706200181 BushingBushing
-
430706201587 SleeveSleeve
-
440706001020 Swaybar LinkageSwaybar Linkage
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
480250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
490233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
700706000964 Compressor Ass'y. Package LTDCompressor Ass'y. Package LTD
-
710706002114 Bracket. Package LTDBracket. Package LTD
-
720233201414 Hex. Flanged Elastic Nut M10. Package LTDHex. Flanged Elastic Nut M10. Package LTD
-
750233251434 Flanged Elastic Nut M5. Package LTDFlanged Elastic Nut M5. Package LTD
-
770>770a706002020 Rear Shock Distributor. Package LTD. Includes 770 to 770aRear Shock Distributor. Package LTD. Includes 770 to 770a
-
770a706000946 ''T'' Fitting. Package LTD''T'' Fitting. Package LTD
-
770b705600459 Clamp. Package LTDClamp. Package LTD
-
775210261650 Hex. Flanged Screw M6 X 16. Package LTDHex. Flanged Screw M6 X 16. Package LTD
-
780250000562 Hex Flange Screw M10 X 25. Package LTDHex Flange Screw M10 X 25. Package LTD
-
790706001827 Inflater Ass'y. Package LTDInflater Ass'y. Package LTD
-
795250100124 Hex. Nut With Nylon 1/2'' X 20. Package LTDHex. Nut With Nylon 1/2'' X 20. Package LTD
-
800706000808 Auxiliary Hose. Package LTDAuxiliary Hose. Package LTD
-
810233261414 Hex. Flanged Elastic Nut M6. Package LTDHex. Flanged Elastic Nut M6. Package LTD
-
820293750009 Tie-Rap 173 mm. Package LTDTie-Rap 173 mm. Package LTD
-
830207661644 Hex. Flanged Screw M6 X 16. Package LTDHex. Flanged Screw M6 X 16. Package LTD
-
835207662044 Hex. Flanged Screw M6 X 20. Package LTDHex. Flanged Screw M6 X 20. Package LTD
-
840293750008 Tie-Rap 350 mm. Package LTDTie-Rap 350 mm. Package LTD
-
880415080200 Hose, Polyurethane. Package LTDHose, Polyurethane. Package LTD
-
881293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
882293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
883293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
884293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
885293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
886293750002 Tie-Rap 142 mm. Package LTDTie-Rap 142 mm. Package LTD
-
890706002015 Hose Ass'y. Package LTDHose Ass'y. Package LTD
-
910710002899 Clip Tie-Rap. Package LTDClip Tie-Rap. Package LTD
-
920250000048 Panel Nut M6 X 1.0. Package LTDPanel Nut M6 X 1.0. Package LTD
-
930706000928 Elbow 90°. Package LTDElbow 90°. Package LTD
-
960293650207 Clamp Oetiker. Package LTDClamp Oetiker. Package LTD
-
970207141244 Hex. Screw M4 X 12. Package LTDHex. Screw M4 X 12. Package LTD
-
980232541414 Elastic Stop Nut M4. Package LTDElastic Stop Nut M4. Package LTD
-
990706001405 Elbow 90°. Package LTDElbow 90°. Package LTD
-
1000710001825 Air Suspension Sensor. Package LTDAir Suspension Sensor. Package LTD
-
1010710004405 Calibrated Module. Package LTDCalibrated Module. Package LTD
-
1020>1020d706002014 Pressure Collector Ass'y. Package LTD. Includes 1020 to 1020dPressure Collector Ass'y. Package LTD. Includes 1020 to 1020d
-
1020a706000869 Connector. Package LTDConnector. Package LTD
-
1020b706000928 Elbow 90°. Package LTDElbow 90°. Package LTD
-
1020c515175232 Male Terminal. Package LTDMale Terminal. Package LTD
-
1020d515175654 Male Terminal Housing, 2 Circuits. Package LTDMale Terminal Housing, 2 Circuits. Package LTD
-
1025205041254 Socket Head Screw M4 X 12. Package LTDSocket Head Screw M4 X 12. Package LTD
-
1035>1035e706002012 Hose Ass'y. Package LTD. Includes 1035 to 1035eHose Ass'y. Package LTD. Includes 1035 to 1035e
-
1035a706000860 Check Valve. Package LTDCheck Valve. Package LTD
-
1035b293650207 Clamp Oetiker. Package LTDClamp Oetiker. Package LTD
-
1035c706000928 Elbow 90°. Package LTDElbow 90°. Package LTD
-
1035d706000869 Connector. Package LTDConnector. Package LTD
-
1035e706000872 Elbow 90°. Package LTDElbow 90°. Package LTD
-
1040504153074 Protector Tube. Package LTDProtector Tube. Package LTD
-
1050232061414 Hex. Nut M6. Package LTDHex. Nut M6. Package LTD
-
1060207162544 Hex. Screw M6 X 25. Package LTDHex. Screw M6 X 25. Package LTD
-
1070224061121 Flat Washer. Package LTDFlat Washer. Package LTD
