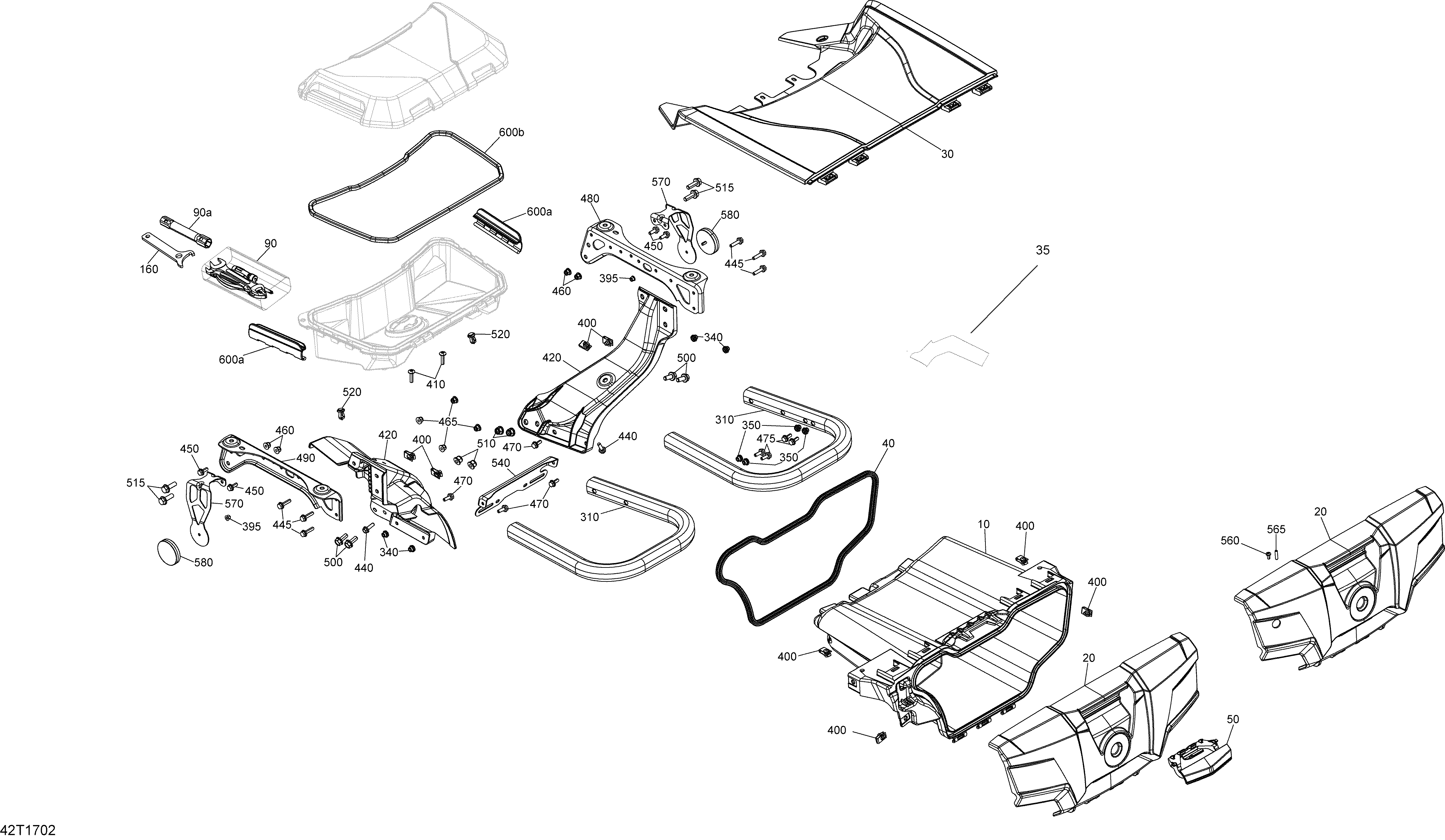

09- Rear Cargo Box - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10708300674 Rear Storage BoxRear Storage Box
-
20708300150 Rear Panel. Except Model EuropeRear Panel. Except Model Europe
-
20708300511 Rear Panel. Model EuropeRear Panel. Model Europe
-
30708301212 Rear Storage Box Cover. Except Max, Except XMR 1000Rear Storage Box Cover. Except Max, Except XMR 1000
-
30715002635 Rear Storage Box Cover. Out Max North AmericaRear Storage Box Cover. Out Max North America
-
30715002638 Rear Storage Box Cover. Out Max Except North AmericaRear Storage Box Cover. Out Max Except North America
-
30715004097 Rear Storage Box Cover. Package XMR 1000 North AmericaRear Storage Box Cover. Package XMR 1000 North America
-
30715004099 Rear Storage Box Cover. Package XMR 1000 InternationalRear Storage Box Cover. Package XMR 1000 International
-
35707002102 Heat ShieldHeat Shield
-
40293200163 Neoprene SealNeoprene Seal
-
50708200272 HandleHandle
-
90>90a704700168 Tool Kit. Includes 90 to 90aTool Kit. Includes 90 to 90a
-
90A529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
160529000035 Adjustement WrenchAdjustement Wrench
-
310715001564 Rear Bumper. North America Except BlackRear Bumper. North America Except Black
-
310715002241 Rear Bumper Ass'y. International Except BlackRear Bumper Ass'y. International Except Black
-
310715002242 Rear Bumper Ass'y. Europe Except BlackRear Bumper Ass'y. Europe Except Black
-
310715002242 Rear Bumper Ass'y. T3 Except BlackRear Bumper Ass'y. T3 Except Black
-
310715004101 Black Rear Bumper Ass'y. North America BlackBlack Rear Bumper Ass'y. North America Black
-
310715004103 Black Rear Bumper Ass'y. International BlackBlack Rear Bumper Ass'y. International Black
-
310715004104 Black Rear Bumper Ass'y. Europe BlackBlack Rear Bumper Ass'y. Europe Black
-
310715004104 Black Rear Bumper Ass'y. T3 BlackBlack Rear Bumper Ass'y. T3 Black
-
340293450274 InsertInsert
-
350293450274 Insert. Model EuropeInsert. Model Europe
-
395233251434 Flanged Elastic Nut M5. Except Model EuropeFlanged Elastic Nut M5. Except Model Europe
-
400250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
410250000807 Torx Screw M6 X 25. Except Model XMR 1000Torx Screw M6 X 25. Except Model XMR 1000
-
420705006997 LH Cargo SupportLH Cargo Support
-
420705006998 RH Cargo SupportRH Cargo Support
-
440207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
445207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
450207661644 Hex. Flanged Screw M6 X 16. Except Model EuropeHex. Flanged Screw M6 X 16. Except Model Europe
-
460233261414 Hex. Flanged Elastic Nut M6. Except Model EuropeHex. Flanged Elastic Nut M6. Except Model Europe
-
465233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
470207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
475207661634 Hex. Flanged Screw M6 X 16. Model EuropeHex. Flanged Screw M6 X 16. Model Europe
-
480705004563 LH SupportLH Support
-
480705004564 RH SupportRH Support
-
500207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
515207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
520293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
540705004806 Plate SupportPlate Support
-
560205951046 Socket Head Screw M5 X 10. Model EuropeSocket Head Screw M5 X 10. Model Europe
-
565206252044 Socket Set Screw M5 X 20. Model EuropeSocket Set Screw M5 X 20. Model Europe
-
570705202576 Reflector Support. Except Model EuropeReflector Support. Except Model Europe
-
580705011221 Red Reflector. Except Model EuropeRed Reflector. Except Model Europe
-
600>600b708200408 Box Ass'y. Outlander Max. Includes 600 to 600bBox Ass'y. Outlander Max. Includes 600 to 600b
-
600a269501945 Clip. Outlander MaxClip. Outlander Max
-
600b293250312 Neoprene Seal. Outlander MaxNeoprene Seal. Outlander Max
