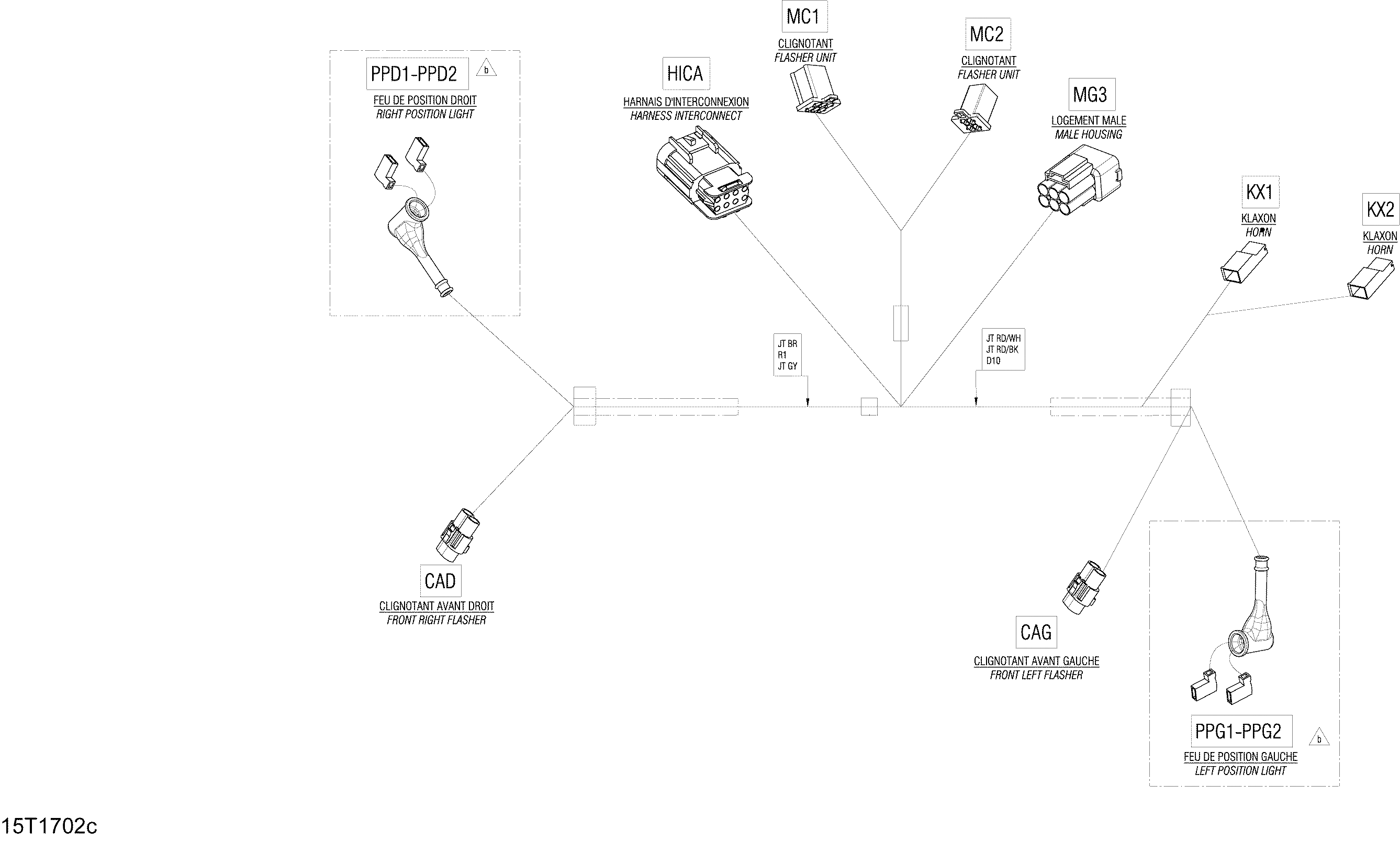

10- Electrical Harness - Option 710004842 Europe для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
710004842 Harness Ass'yHarness Ass'y
-
CAD409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
CAD409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
CAG409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
CAG409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
D10409012700 Diode. IN5406G1Diode. IN5406G1
-
HICA710001038 Clip. PACKARD 15495808Clip. PACKARD 15495808
-
HICA710001927 Housing. PACKARD 15326840Housing. PACKARD 15326840
-
HICA710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
HICA710001233 Seal. PACKARD 15366021Seal. PACKARD 15366021
-
HICA710001224 Terminal. PACKARD 15326268Terminal. PACKARD 15326268
-
KX1710000751 Shrink Tubing. RAYCHEM RHF 100Shrink Tubing. RAYCHEM RHF 100
-
KX1409010400 Female Terminal Housing, 1 Circuit. AMP 154719-0Female Terminal Housing, 1 Circuit. AMP 154719-0
-
KX1409010100 Female Terminal. AMP 1-160759-1Female Terminal. AMP 1-160759-1
-
KX2710000751 Shrink Tubing. RAYCHEM RHF 100Shrink Tubing. RAYCHEM RHF 100
-
KX2409010400 Female Terminal Housing, 1 Circuit. AMP 154719-0Female Terminal Housing, 1 Circuit. AMP 154719-0
-
KX2409010100 Female Terminal. AMP 1-160759-1Female Terminal. AMP 1-160759-1
-
MC1710002314 Housing. SUMITOMO 6040-6111Housing. SUMITOMO 6040-6111
-
MC1710002315 Terminal. SUMITOMO 8240-4092Terminal. SUMITOMO 8240-4092
-
MC2710002313 Housing. SUMITOMO 6040-4111Housing. SUMITOMO 6040-4111
-
MC2710002315 Terminal. SUMITOMO 8240-4092Terminal. SUMITOMO 8240-4092
-
MG3710001446 Male Housing Terminal, 6 Circuits. SUMITOMO 6187-6803Male Housing Terminal, 6 Circuits. SUMITOMO 6187-6803
-
MG3710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
MG3710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
MG3409011300 Male Terminal. SUMITOMO 1500-0105Male Terminal. SUMITOMO 1500-0105
-
PPD1710003269 Cap ProtectorCap Protector
-
PPD1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
PPD2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
PPG1710003269 Cap ProtectorCap Protector
-
PPG1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
PPG2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
R1710002674 Resistor. IRC RSFIJB470RResistor. IRC RSFIJB470R
