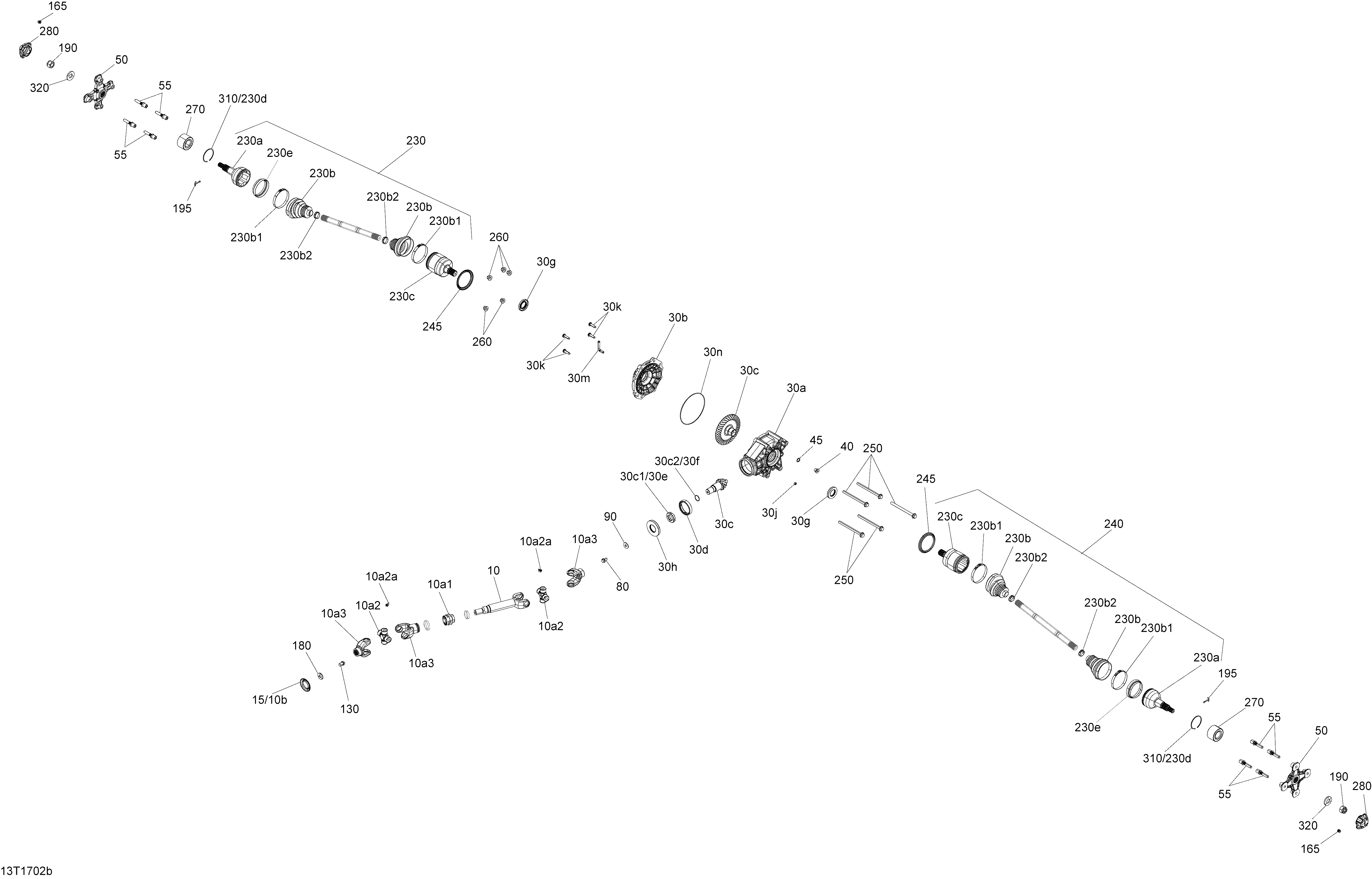

08- Rear Drive XMR 650 для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10>10b703500986 Shaft Ass'y Kit. Includes 10 to 10bShaft Ass'y Kit. Includes 10 to 10b
-
10a1715900118 Rubber BootRubber Boot
-
10a2715900326 Universal JointUniversal Joint
-
10a2a715900295 Grease FittingGrease Fitting
-
10a3715900438 YokeYoke
-
10b705501123 ProtectorProtector
-
15705501123 ProtectorProtector
-
30703500878 Final Drive Unit. Includes 30 to 30wFinal Drive Unit. Includes 30 to 30w
-
30a705502051 Rear CoverRear Cover
-
30b705502052 Rear Pinion CoverRear Pinion Cover
-
30c705502053 Pinion 10 TeethPinion 10 Teeth
-
30d705502054 Gear 36 TeethGear 36 Teeth
-
30e705502055 Ball BearingBall Bearing
-
30f705502056 Ball BearingBall Bearing
-
30g705502057 Ball BearingBall Bearing
-
30h705502058 Needle BearingNeedle Bearing
-
30j705502059 NutNut
-
30k705502060 Differential Shim 0.02 mmDifferential Shim 0.02 mm
-
30m705502061 Pinion Gear Shim 1.67 mmPinion Gear Shim 1.67 mm
-
30n705501556 Oil SealOil Seal
-
30p705502062 Oil SealOil Seal
-
30q705501724 Plug DrainPlug Drain
-
30r705502063 ScrewScrew
-
30s705501584 Breather TubeBreather Tube
-
30t705502064 SealSeal
-
30u705502065 O-RingO-Ring
-
30v250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
30w250200014 Flat Washer M10Flat Washer M10
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501848 RH CV Joint Ass'y. Includes 230 to 230dRH CV Joint Ass'y. Includes 230 to 230d
-
240705501847 LH CV Joint Ass'y. Includes 230 to 230dLH CV Joint Ass'y. Includes 230 to 230d
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot Kit. Includes 230b to 230b2Boot Kit. Includes 230b to 230b2
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501780 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
230e705501842 Joint ProtectorJoint Protector
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
