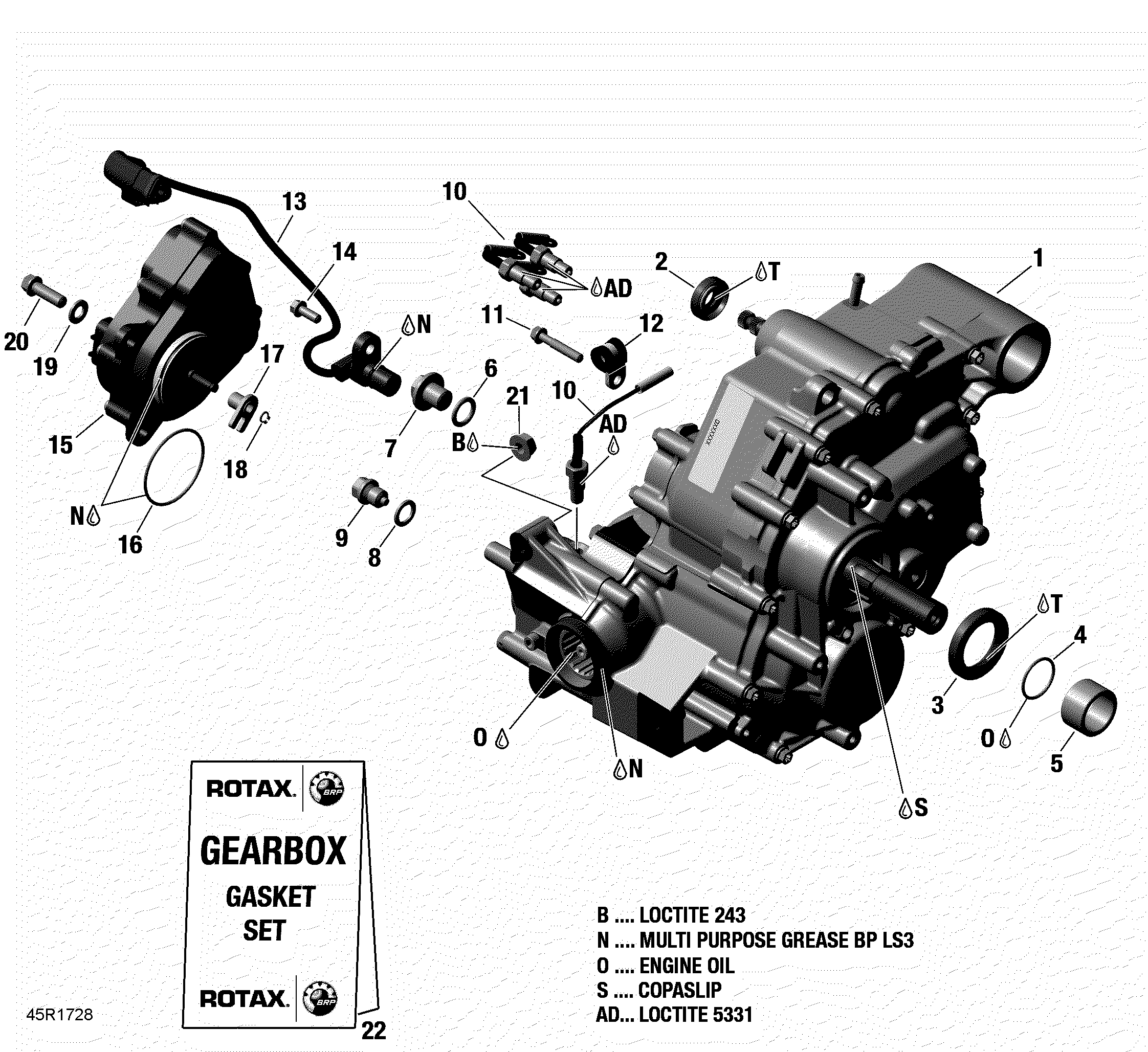

01- Gear Box Assy - XMR 850 EFI для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
1>11420684826 Boitier EngrenageBoitier Engrenage
-
2420250450 Anneau EtancheAnneau Etanche
-
3420950089 Anneau EtancheAnneau Etanche
-
4420631310 Joint ToriqueJoint Torique
-
5420647253 Anneau d'EspacementAnneau d'Espacement
-
6420650350 Joint ToriqueJoint Torique
-
7420241660 Vis d'Obturation M14 X 1.5Vis d'Obturation M14 X 1.5
-
8420250640 Rondelle En CuivreRondelle En Cuivre
-
9420241786 Bouchon De Vidange MagnetiqueBouchon De Vidange Magnetique
-
10420640192 Interrupteur De PositionInterrupteur De Position
-
11420440274 Vis Hexalobulaire A Epaulement M6 X 35Vis Hexalobulaire A Epaulement M6 X 35
-
12420251691 Collier De CableCollier De Cable
-
13420265621 Capteur De VitesseCapteur De Vitesse
-
14420440162 Vis Hexalobulaire A Epaulement M6 X 16Vis Hexalobulaire A Epaulement M6 X 16
-
15>18415129174 Commande Ass.Commande Ass.
-
16293300117 Joint ToriqueJoint Torique
-
17415129175 Fourchette De ChangementFourchette De Changement
-
18293370042 Anneau De RetenueAnneau De Retenue
-
19420250311 Rondelle Plate 8.4 mmRondelle Plate 8.4 mm
-
20420440372 Vis Hexalobulaire A Epaulement M8 X 25Vis Hexalobulaire A Epaulement M8 X 25
-
21420842619 Ecrou Hex. M8Ecrou Hex. M8
-
22420684134 Ens. De Joint Etanche, Boite De VitessesEns. De Joint Etanche, Boite De Vitesses
